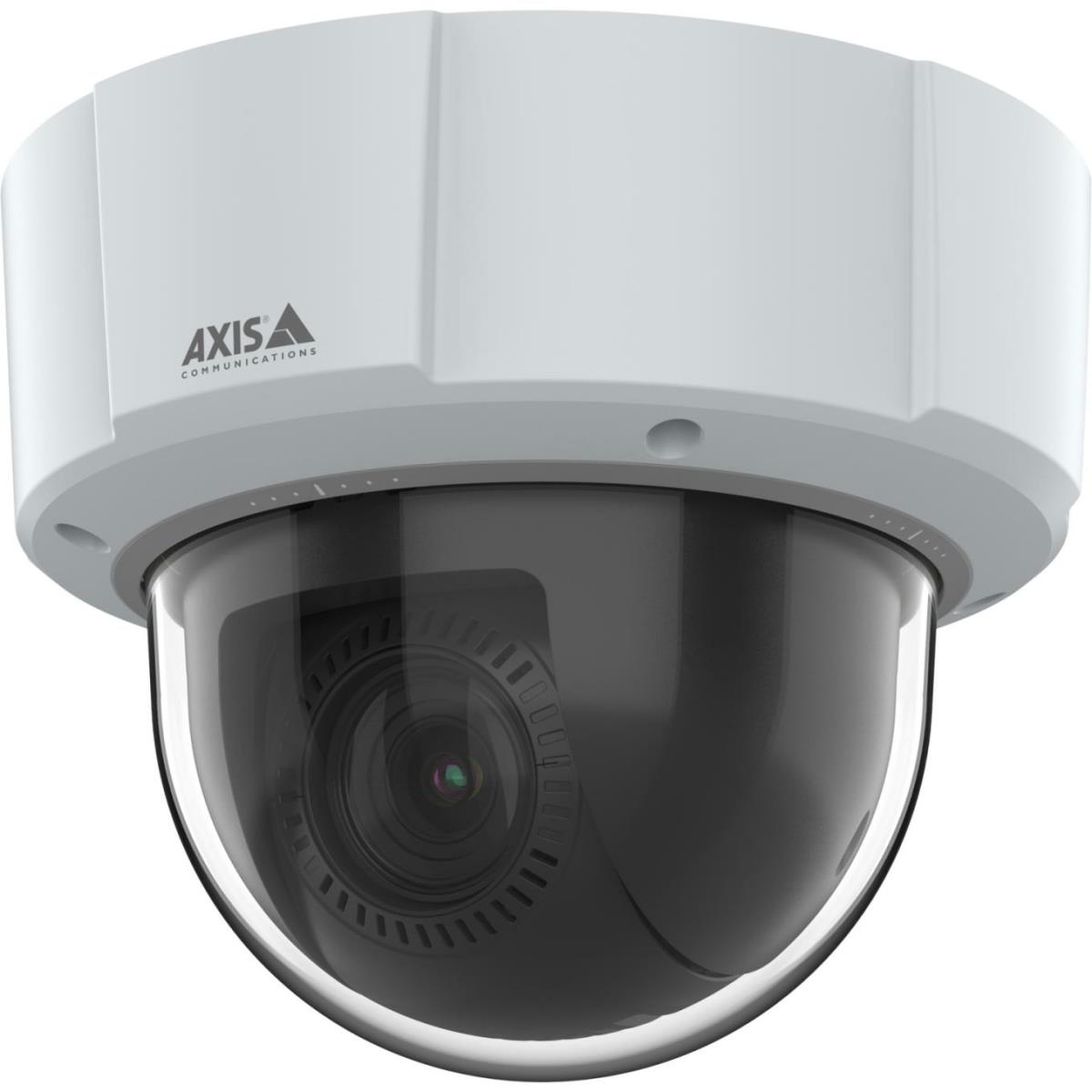

AXIS M5526-E PTZ Camera
Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.
Don’t miss a thing
AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images—every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includes Forensic WDR for clarity when there’s both dark and light areas in the scene.
Flexible installations—indoors and out
AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles—all tailored to your specific needs.
Enjoy more for less
This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. Axis Zipstream with H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Yes
Preset points
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Certification
CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Design
Form factor
Dome
Mounting type
Ceiling
Product colour
Black, White
Housing material
Plastic, Polycarbonate (PC)
International Protection (IP) code
IP66
IK code
IK09
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.01 lx
Lens viewing angle, horizontal
59.1 - 6.5°
Lens viewing angle, vertical
35 - 3.67°
Tilt angle range
0 - 90°
Tilt speed
150 °/sec
Pan range
0 - 360°
Pan speed
150 °/sec
Camera pixel size
1.998 µm
Camera shutter speed
1/27000 - 0.2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 3 mm (1 / 3")
Sensor type
CMOS
Lens system
Zoom capability
Yes
Optical zoom
10x
Digital zoom
12x
Number of lenses
1
Auto focus
Yes
Maximum aperture number
3
Minimum aperture number
1.6
Focal length range
4.7 - 47 mm
Detect distance (wide)
96 m
Detect distance (tele)
938 m
Observe distance (wide)
38 m
Observe distance (tele)
373 m
Recognize distance (wide)
19 m
Recognize distance (tele)
186 m
Identify distance (wide)
10 m
Identify distance (tele)
93 m
Video
Maximum resolution
2688 x 1512 pixels
Total megapixels
4 MP
Video formats supported
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
160 x 120, 320 x 180, 1600 x 1200 (UXGA)
Frame rate
60 fps
Video streaming
Yes
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Privacy masking
Yes
Text caption overlay
Yes
Audio
Audio system
2-way
Audio system full duplex
Yes
Audio formats supported
AAC-LC, G.711, LPCM, PCM
Sample rate
48 kHz
Signal-to-Noise Ratio (SNR)
55 dB
Audio detection
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Storage
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
ROM capacity
1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Terminal block port
Yes
DC-in jack
Yes
Security
Video motion detection
Yes
Active tampering alarm
Yes
Security algorithms
802.1x RADIUS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Face detection, Human detection, Line crossing detection, Moving object, Vehicle detection
Pixel counter
Yes
Human and vehicle targets classification
Yes
Power
Power source type
PoE
Power consumption
3.8 mA
Power consumption (typical)
4.2 W
Power consumption (max)
11.7 W
Power consumption (Power over Ethernet (PoE))
12.95 W
Operational conditions
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
15 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
165 mm
Depth
165 mm
Height
150 mm
Weight
1 kg
Features
License plate recognition
Yes
Packaging content
Number of cameras
1
Manual
Yes
Technical details
Sustainability certificates
REACH, RoHS
Doesn't contain
PVC/BFR
