Introduction

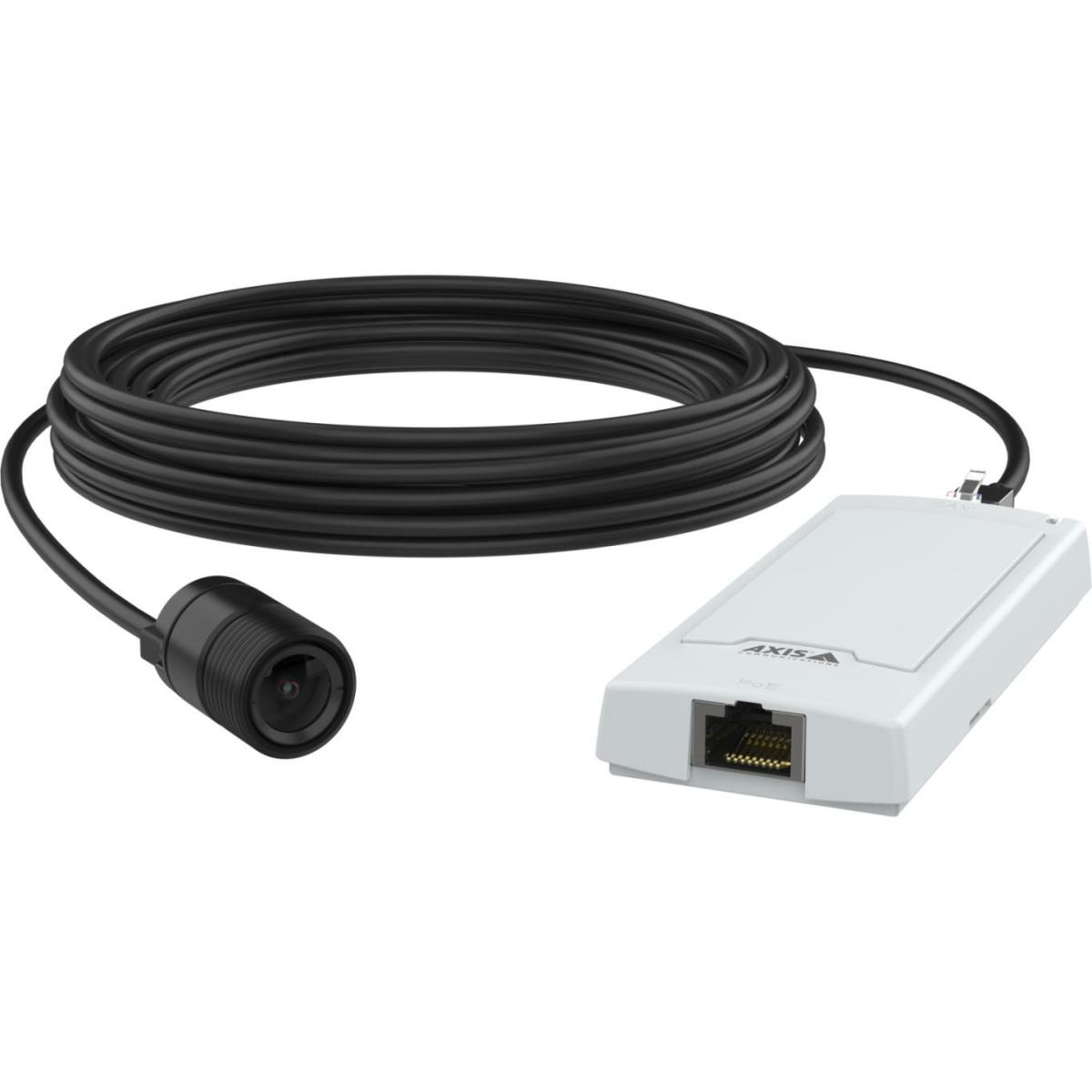

AXIS P1245 Mk II Modular Standard Camera
Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that’s easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet
With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it’s easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
Wide Dynamic Range (WDR)
Yes
Design
Form factor
Covert
Mounting type
Ceiling
Product colour
Black, White
LED indicators
Yes
Housing material
Plastic, Steel
International Protection (IP) code
IPX3
Camera
Minimum illumination
0.2 lx
Lens viewing angle, horizontal
111°
Lens viewing angle, vertical
61°
Camera shutter speed
1/6500 - 1/5 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.9 mm (1 / 2.9")
Sensor type
CMOS
Lens system
Number of lenses
1
Maximum aperture number
2
Fixed focal length
2.8 mm
Closest focusing distance
0.2 m
Video
Maximum resolution
1920 x 1080 pixels
Video formats supported
AVC, H.264, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
480 x 360, 640 x 360, 1024 x 640, 1024 x 768 (XGA), 1920 x 1080 (HD 1080)
Frame rate
30 fps
Video streaming
Yes
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Flip & mirror
Yes
Privacy masking
Yes
Text caption overlay
Yes
Bit rate control
Variable Bit Rate (VBR)
Audio
Signal-to-Noise Ratio (SNR)
55 dB
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Bluetooth
No
Streaming method
Multicast
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Video motion detection
Yes
Security algorithms
802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Face detection, Human detection, Vehicle detection
Pixel counter
Yes
Human and vehicle targets classification
Yes
Management features
Behavior analysis
Line crossing detection, Scene change detection
Power
Power source type
PoE
Power consumption (typical)
3.4 W
Power consumption (max)
4.1 W
Operational conditions
Operating temperature (T-T)
-20 - 45 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Packaging content
Number of cameras
1
Manual
Yes
Technical details
Doesn't contain
PVC
Compliance certificates
RoHS
