Introduction

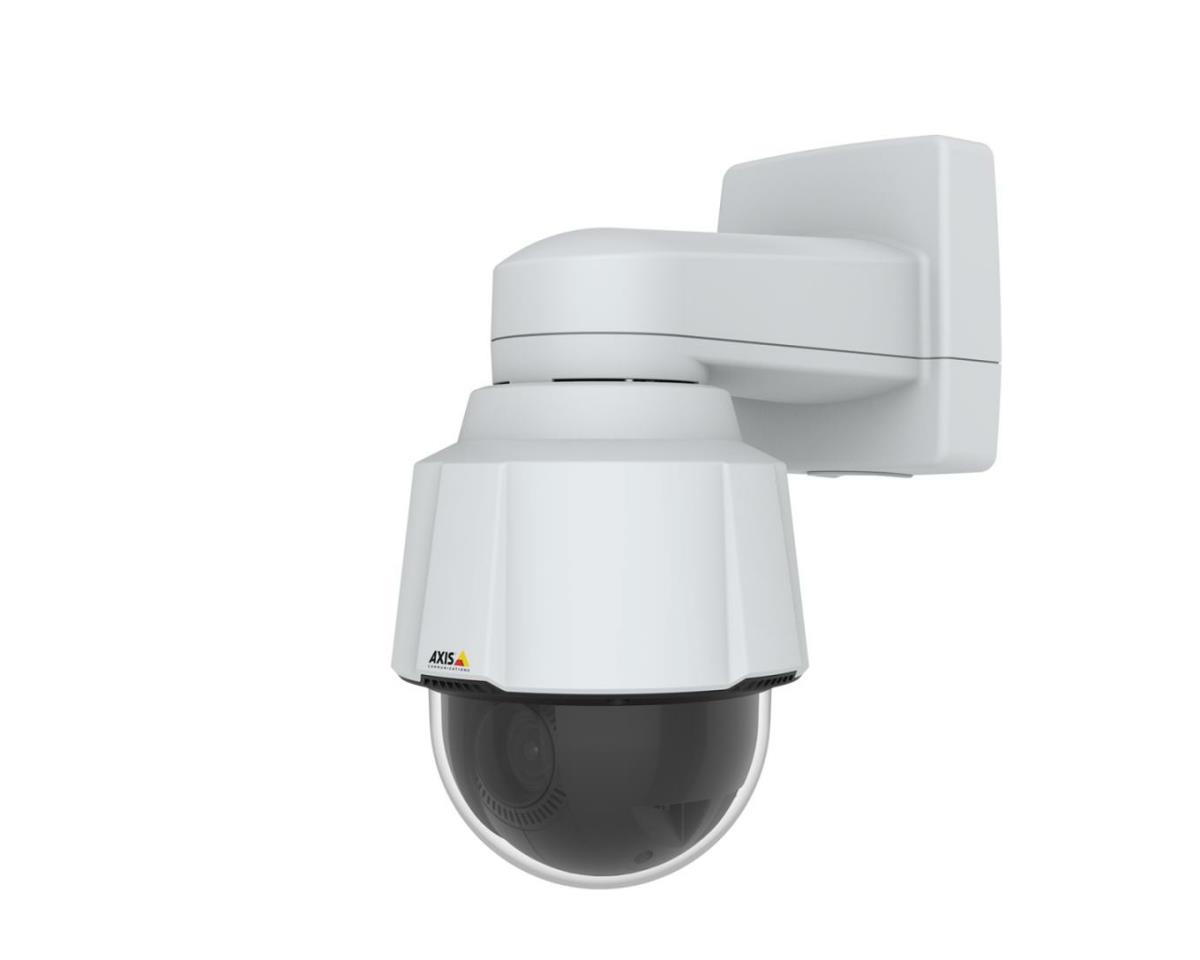

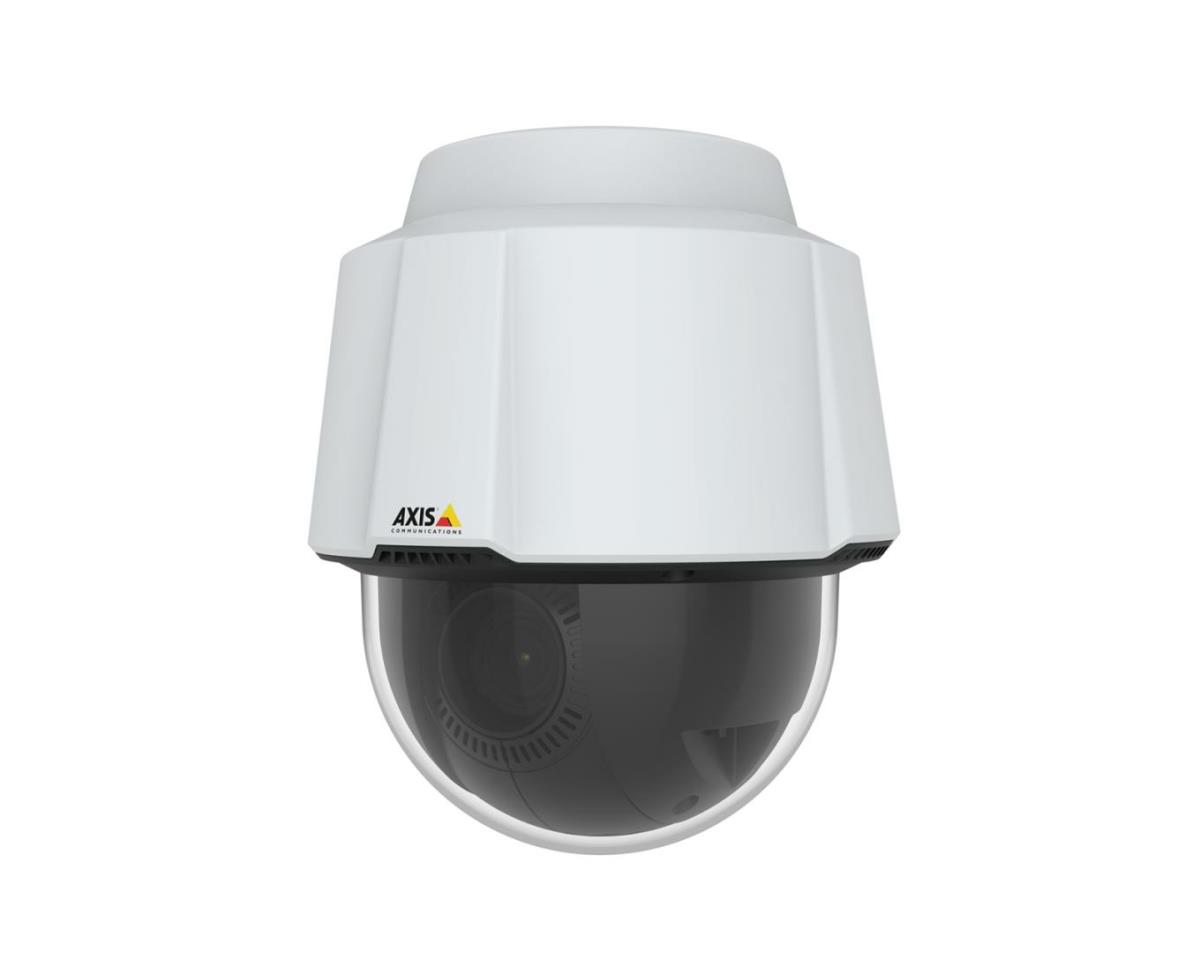

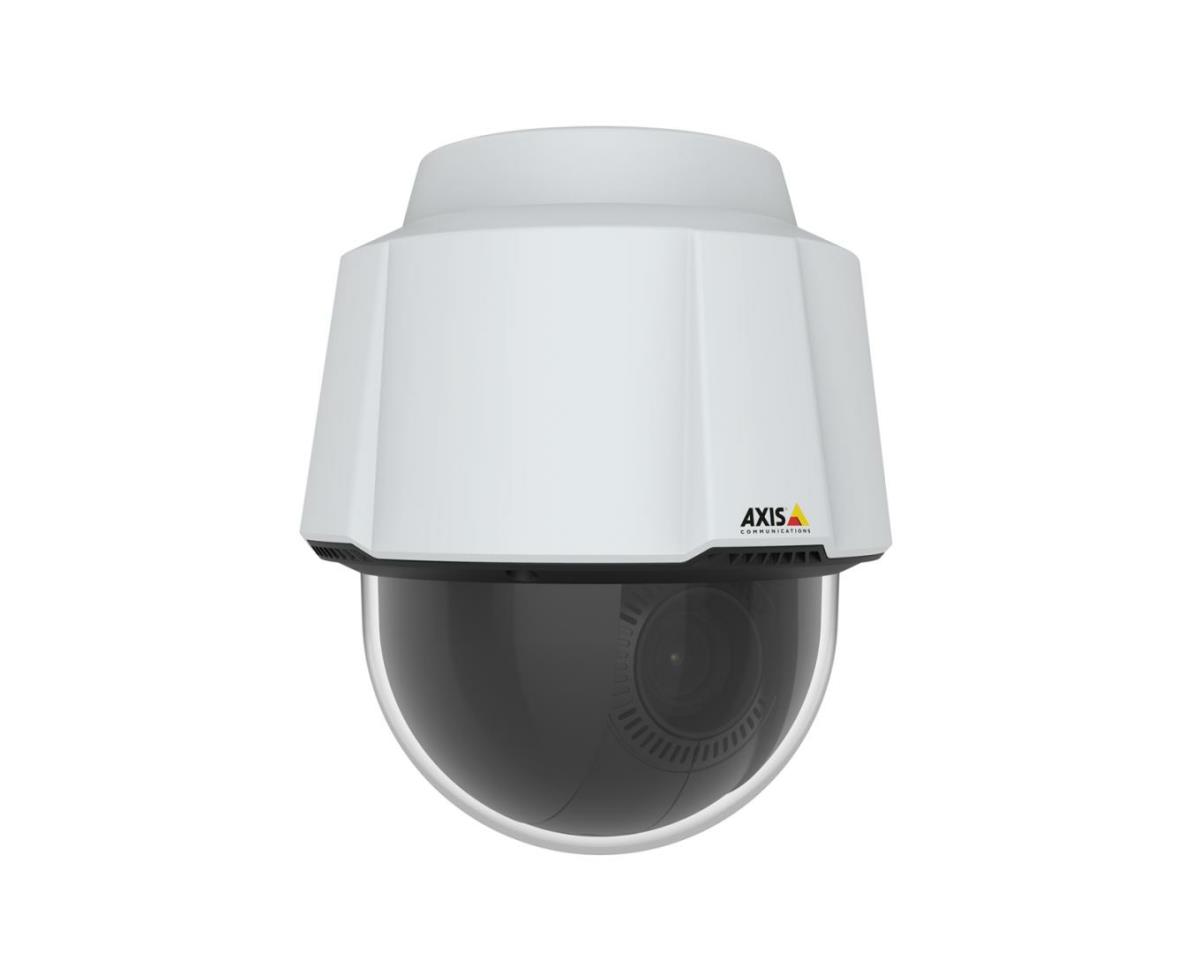

AXIS P5654-E Mk II PTZ Camera
This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Great images – anytime
AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.
Keeping you secure
Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
And there’s more…
This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Yes
Auto-tracking
Yes
Preset points
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Certification
UL/cUL, UKCA, CE, KC, EAC, RCM, TAA
Design
Form factor
Dome
Mounting type
Ceiling
Product colour
Black, White
Housing material
Aluminium, Polycarbonate (PC)
International Protection (IP) code
IP66
IK code
IK10
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.01 lx
Lens viewing angle, horizontal
77 - 3.6°
Lens viewing angle, vertical
43.1 - 2°
Tilt angle range
0 - 180°
Tilt speed
350 °/sec
Pan range
0 - 360°
Pan speed
350 °/sec
Camera shutter speed
1/66500 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Sensor type
CMOS
Lens system
Zoom capability
Yes
Optical zoom
21x
Digital zoom
12x
Number of lenses
1
Auto focus
Yes
Maximum aperture number
4.5
Minimum aperture number
1.6
Focal length range
4 - 84.6 mm
Detect distance (wide)
57 m
Detect distance (tele)
1120 m
Observe distance (wide)
23 m
Observe distance (tele)
450 m
Recognize distance (wide)
11 m
Recognize distance (tele)
225 m
Identify distance (wide)
6 m
Identify distance (tele)
110 m
Video
Maximum resolution
1920 x 1080 pixels
Video formats supported
AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
320 x 180
Supported video modes
1080p
Frame rate
60 fps
Video streaming
Yes
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Text caption overlay
Yes
Image stabilizer
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
1024 MB
ROM capacity
1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Security
Video motion detection
Yes
Security algorithms
EAP-TLS, HTTPS, TLS
Alert notification type
E-mail
Intelligent Video Surveillance (IVS) system features
Crossing line, Face detection, Human detection, Moving object, Vehicle detection
Pixel counter
Yes
Human and vehicle targets classification
Yes
Power
Power source type
PoE
Power consumption (typical)
8 W
Power consumption (max)
16 W
Operational conditions
Operating temperature (T-T)
-30 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
188 mm
Depth
188 mm
Height
217 mm
Weight
2.5 kg
Features
License plate recognition
Yes
Packaging content
Number of cameras
1
Mounting kit
Yes
Technical details
Sustainability certificates
REACH, RoHS
Doesn't contain
PVC
