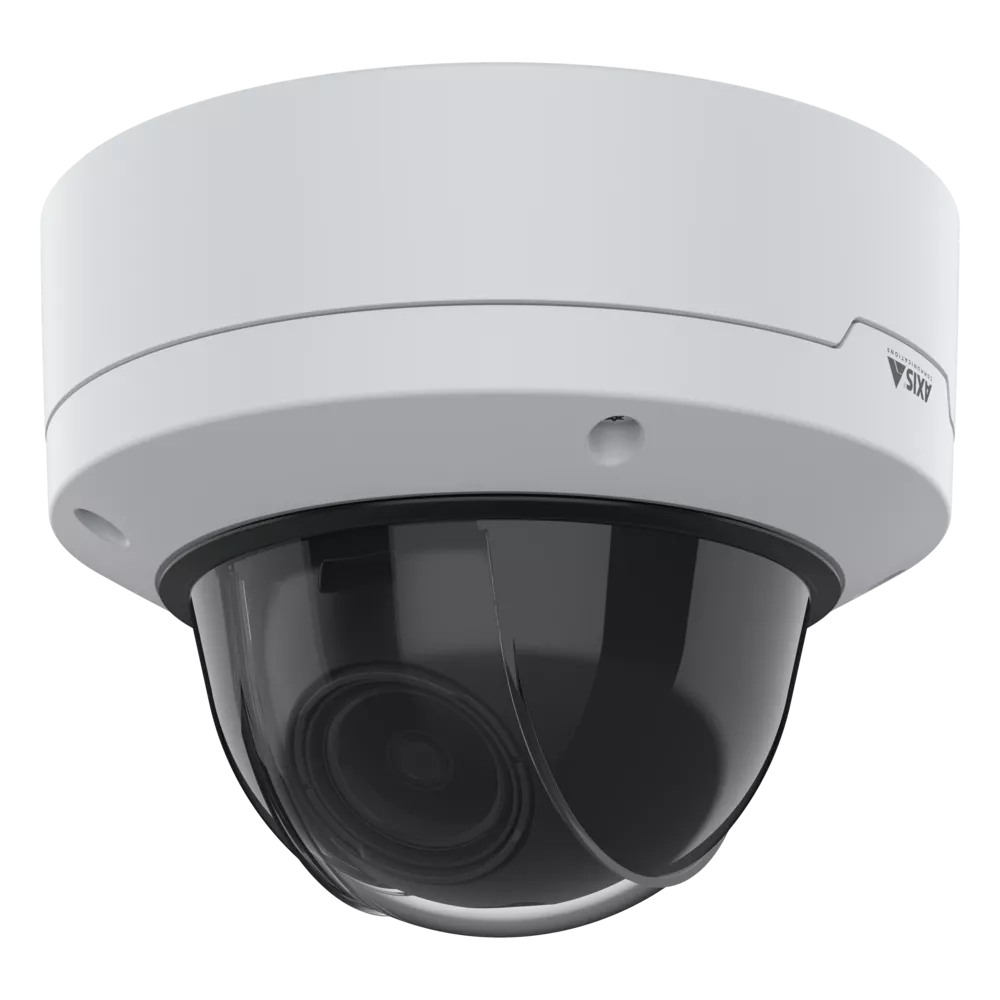

AXIS Q3546-LVE Dome Camera
Built on ARTPEC-9, this robust AI-powered camera with support for AV1 codec offers accelerated performance to run impressive analytics applications on the edge. And Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.
Outstanding image quality
AXIS Q3546-LVE offers outstanding image quality and forensic details in 4 MP resolution (up to 120 fps), even in harsh weather and environments. It features OptimizedIR, and an innovative IR-shielded dome for clear, sharp images in rain and snow. Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in near darkness or challenging light. And electronic image stabilization keeps the image steady when the camera is subject to vibrations. It’s available with either a high-performing and light-sensitive 10 mm lens or a powerful and flexible 51 mm tele lens for surveillance from a distance.
ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC-9, this application offers enhanced performance with greater accuracy. Additionally, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected.
Robust with strong security
Made from high-grade aluminum, this robust, IK10-, IP66-, IP6K9K- and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It has an operating temperature range from -55°C to 55 °C (-122 to 131°F). And a built-in intrusion switch can detect tampering. It can be powered with DC and PoE to ensure power redundancy. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Yes
Auto-tracking
Yes
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
Black, White
LED indicators
Yes
Housing material
Aluminium, Plastic
Protection features
Impact resistant, Vandal proof
International Protection (IP) code
IP66, IP6K9K
IK code
IK10
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.01 lx
Angle of rotation
360°
Lens viewing angle, horizontal
101°
Lens viewing angle, vertical
54°
Tilt angle range
-42 - 80°
Pan range
-180 - 180°
Camera pixel size
2.9 µm
Camera shutter speed
1/49500 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 1.8 mm (1 / 1.8")
Sensor type
CMOS
Lens system
Zoom capability
Yes
Optical zoom
2.2x
Number of lenses
1
Lens diameter
1 cm
Focal length range
4.7 - 10 mm
Auto focus
Yes
Maximum aperture number
1.2
Minimum aperture number
1.1
Detect distance (wide)
65 m
Detect distance (tele)
141 m
Observe distance (wide)
26 m
Observe distance (tele)
56 m
Recognize distance (wide)
13 m
Recognize distance (tele)
28 m
Identify distance (wide)
6.4 m
Identify distance (tele)
14 m
Closest focusing distance
0.5 m
Night vision
Night vision
Yes
Night vision distance
60 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
2688 x 1512 pixels
Total megapixels
4 MP
Video formats supported
AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
1280 x 800 (WXGA), 2688 x 1512
Frame rate
120 fps
Video streaming
Yes
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Flip & mirror
Yes
Text caption overlay
Yes
Image stabilizer
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Audio
Audio system
2-way
Audio system full duplex
Yes
Audio formats supported
AAC-LC, G.711, G.726, LPCM, OPUS, PCM
Signal-to-Noise Ratio (SNR)
55 dB
Audio detection
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Networking standards
IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Streaming method
Multicast
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8000 MB
RAM capacity
4000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Terminal block port
Yes
Security
Active tampering alarm
Yes
Security algorithms
256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type
E-mail
Privacy protection
Yes
Intelligent Video Surveillance (IVS) system features
Line crossing detection, Moving object
Human and vehicle targets classification
Yes
Power
Power source type
PoE
Power consumption (typical)
6.3 W
Power consumption (max)
25.5 W
Operational conditions
Operating temperature (T-T)
-50 - 55 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
239 mm
Depth
211 mm
Height
183 mm
Weight
2.36 kg
Sustainability
Compliance certificates
REACH, RoHS, Trade Agreements Act (TAA)
Packaging content
Number of cameras
1

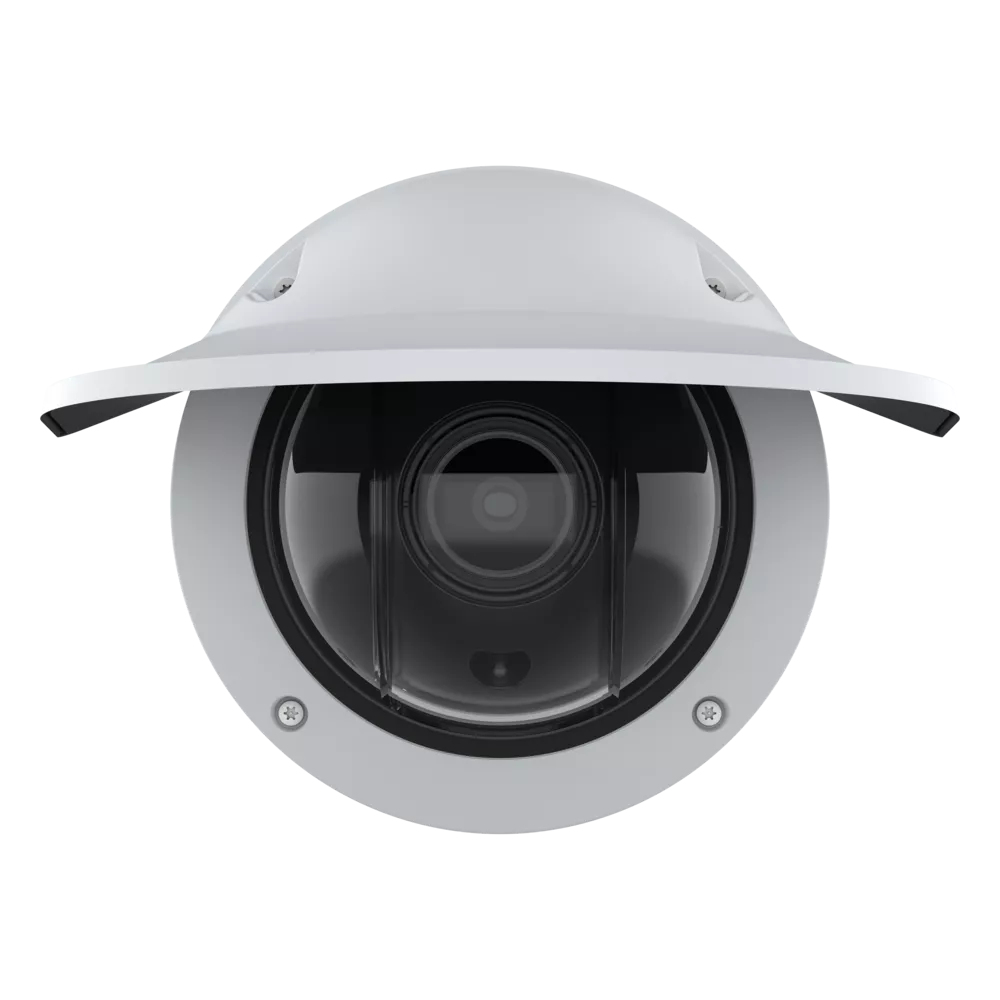

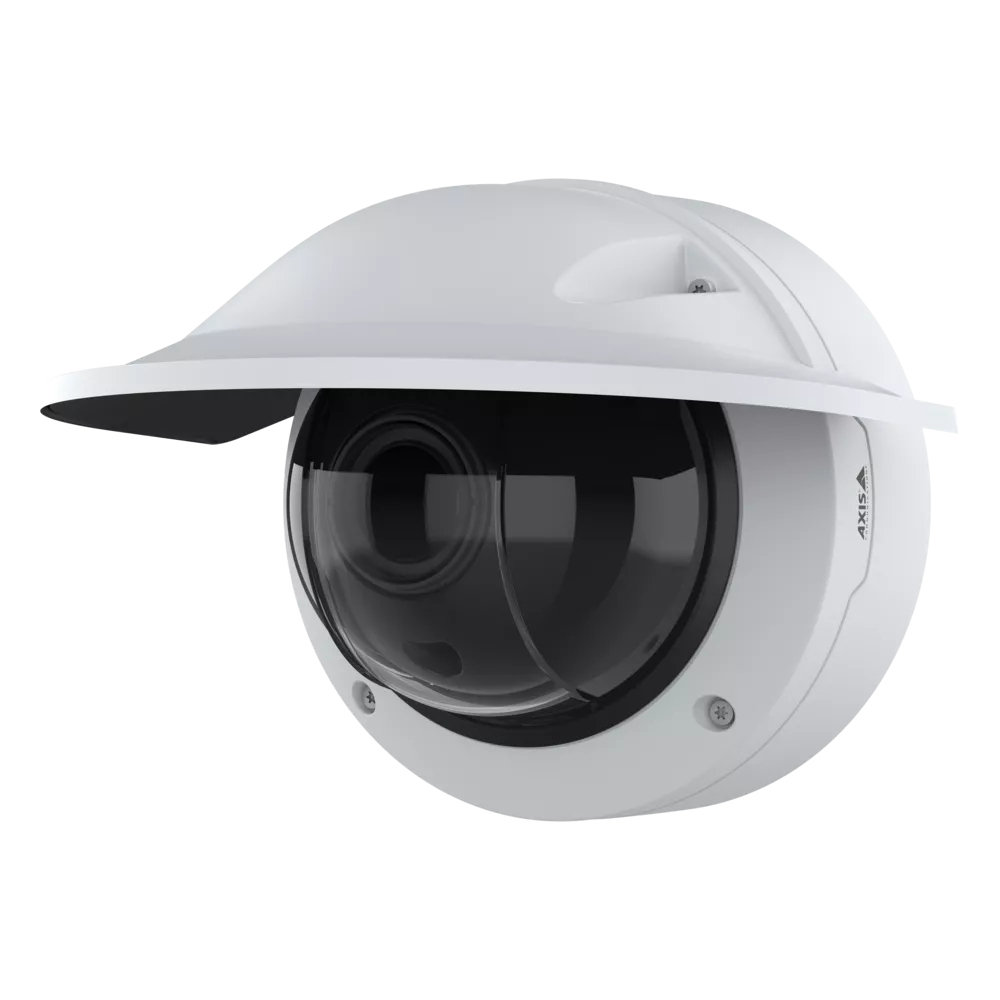

Sun shield included
Yes
Other features
Doesn't contain
CFR, PVC/BFR
