Product Details
Introduction

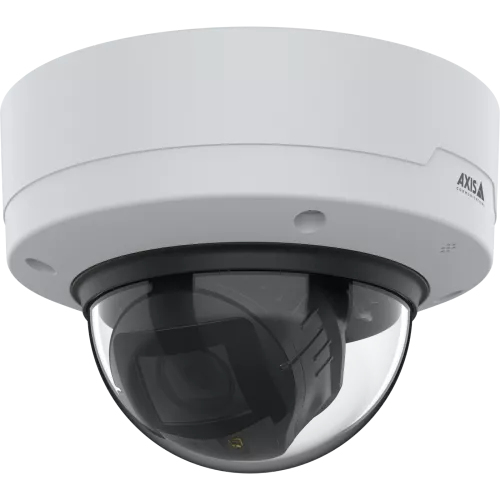

Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Yes
PTZ modes
Digital PTZ
Auto-tracking
Yes
Tour recording
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Certification
UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
Black, White
LED indicators
Yes
Housing material
Plastic, Polycarbonate (PC)
Protection features
Impact resistant, Vandal proof
International Protection (IP) code
IP66
IK code
IK10
Weatherproof
Yes
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.02 lx
Angle of rotation
190°
Lens viewing angle, horizontal
34°
Lens viewing angle, vertical
26°
Tilt angle range
-45 - 80°
Pan range
-190 - 190°
Camera pixel size
2 µm
Camera shutter speed
1/30500 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Sensor type
CMOS
Lens system
Zoom capability
Yes
Number of lenses
1
Lens diameter
2.9 cm
Focal length range
3 - 8.5 mm
Auto focus
Yes
Maximum aperture number
1.76
Minimum aperture number
1.7
Detect distance (wide)
60 m
Detect distance (tele)
170 m
Observe distance (wide)
24 m
Observe distance (tele)
67 m
Recognize distance (wide)
12 m
Recognize distance (tele)
34 m
Identify distance (wide)
6 m
Identify distance (tele)
17 m
Night vision
Night vision
Yes
Night vision distance
45 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
2592 x 1944 pixels
Total megapixels
5 MP
Video formats supported
AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
1280 x 800 (WXGA), 1440 x 1080, 1920 x 1080 (HD 1080), 2592 x 1944
Frame rate
30 fps
Video streaming
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Flip & mirror
Yes
Text caption overlay
Yes
Bit rate control
Variable Bit Rate (VBR)
Audio
Signal-to-Noise Ratio (SNR)
55 dB
Audio detection
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Streaming method
Multicast
Storage
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8000 MB
RAM capacity
2000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Terminal block port
Yes
Security
Video motion detection
Yes
Active tampering alarm
Yes
Security algorithms
256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP
Alert notification type
E-mail
Privacy protection
Yes
Pixel counter
Yes
Human and vehicle targets classification
Yes
Management features
Behavior analysis
Line crossing detection
Power
Power source type
PoE
Power consumption (typical)
4.7 W
Power consumption (max)
12.6 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Weight
820 g
Sustainability
Compliance certificates
REACH, RoHS, Trade Agreements Act (TAA)
Packaging content
Number of cameras
1

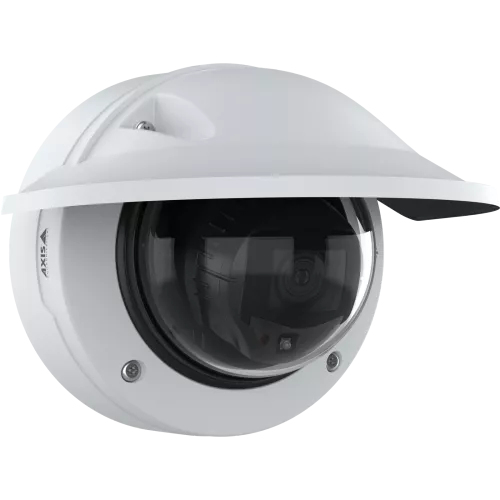

Sun shield included
Yes
Manual
Yes
Other features
Doesn't contain
CFR, PVC, PVC/BFR
Information
| Part Number: | 02984-001 |
