Introduction

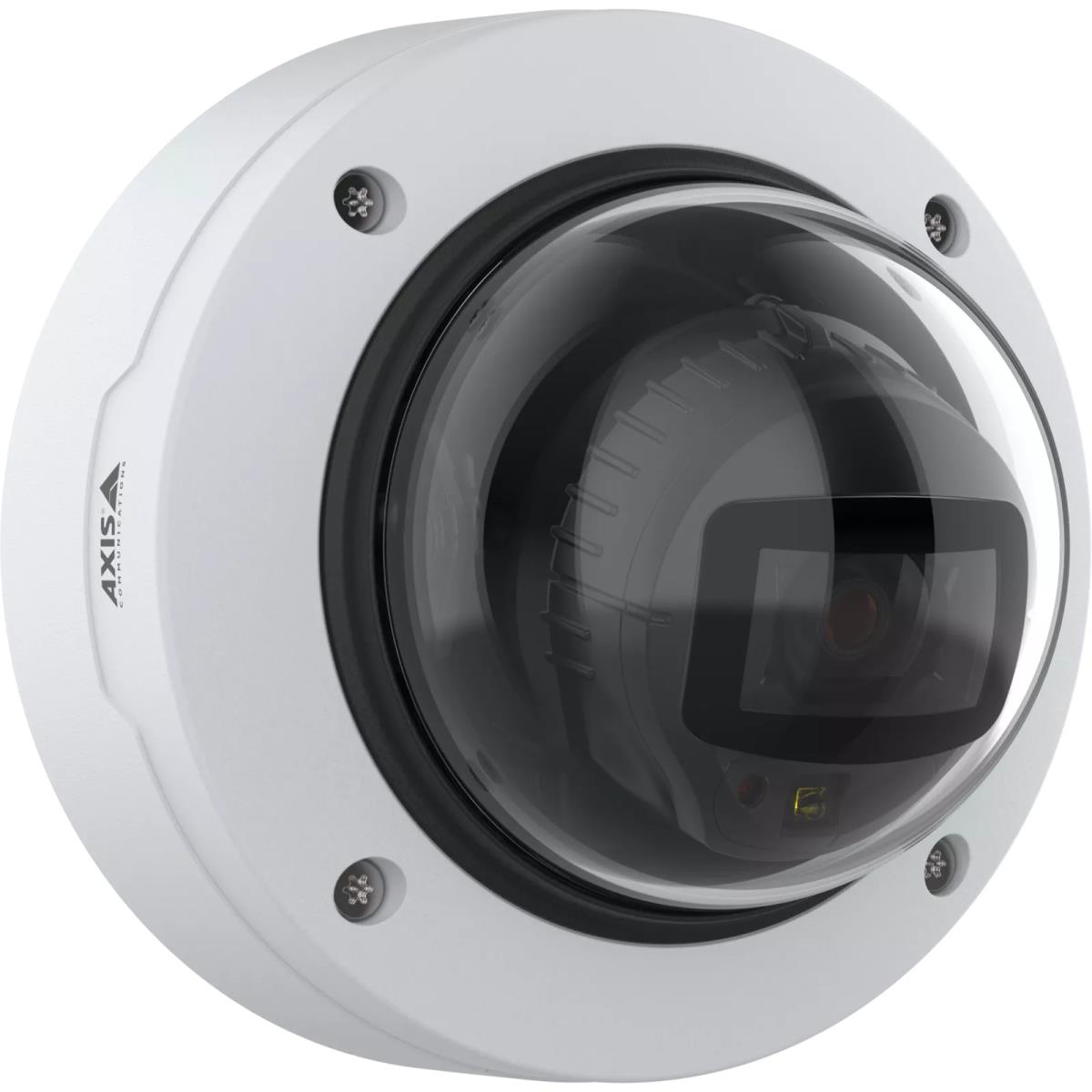

Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 2 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3275-LV offers excellent image quality and forensic details in 2 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
Performance
Type
IP security camera
Placement supported
Indoor
Connectivity technology
Wired
PTZ control
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Alarm input/output
Yes
Processor model
ARTPEC-9
Built-in processor
Yes
Dynamic range
120 dB
Design
Form factor
Dome
Mounting type
Ceiling/Wall/Pole
Product colour
White
LED indicators
Yes
Housing material
Plastic, Polycarbonate (PC)
International Protection (IP) code
IP54
IK code
IK10
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.02 lx
Angle of rotation
95°
Lens viewing angle, horizontal
100 - 32°
Lens viewing angle, vertical
52 - 18°
Tilt angle range
-45 - 80°
Pan range
-190 - 190°
Camera pixel size
2.9 µm
Camera shutter speed
1/37000 - 2 s
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Yes
Sensor type
CMOS
Lens system
Zoom capability
Yes
Focal length range
3.4 - 9.8 mm
Auto focus
Yes
Maximum aperture number
2.7
Minimum aperture number
1.4
Detect distance (wide)
48 m
Detect distance (tele)
135 m
Observe distance (wide)
19 m
Observe distance (tele)
54 m
Recognize distance (wide)
9.6 m
Recognize distance (tele)
27 m
Identify distance (wide)
4.8 m
Identify distance (tele)
14 m
Night vision
Night vision
Yes
Night vision distance
40 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
1920 x 1080 pixels
Total megapixels
2 MP
Video compression formats
AV1, H.264, H.265, M-JPEG
Video recording
Yes
Frame rate
60 fps
Video streaming
Yes
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness, White balance
Text caption overlay
Yes
Audio
Audio system
2-way
Audio system full duplex
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1AE, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Wi-Fi
No
Bluetooth
No
Quality of Service (QoS) support
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8192 MB
RAM capacity
2048 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Terminal block port
Yes
DC-in jack
Yes
Security
Video motion detection
Yes
Pixel counter
Yes
Network access storage (NAS)
Yes
Management features
Power
Power source type
DC, PoE
Power consumption (typical)
3.4 W
Power consumption (max)
10 W
DC output voltage
12
DC output current
0.025 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Packaging content
Number of cameras
1
Mounting kit
Yes
Manual
Yes
