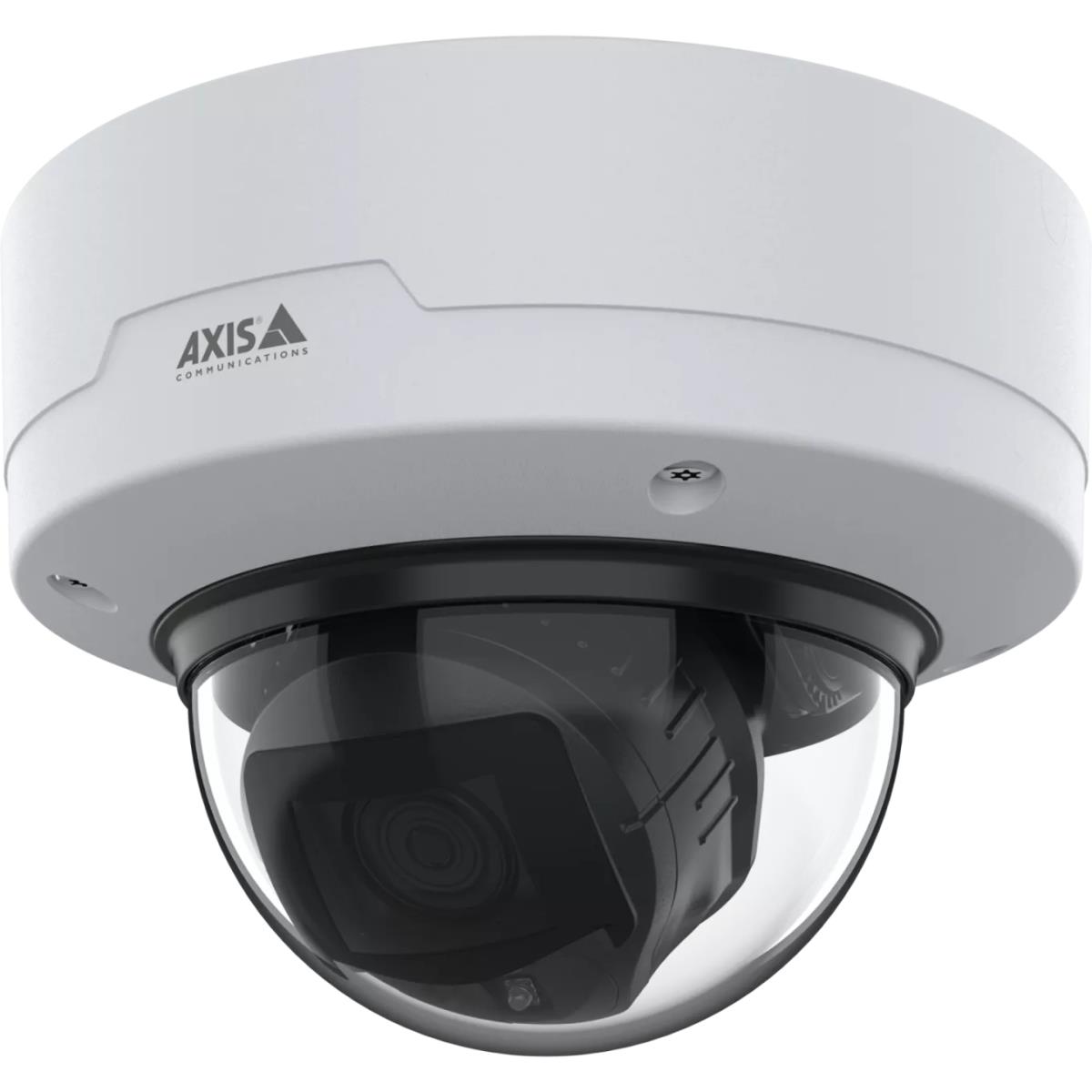

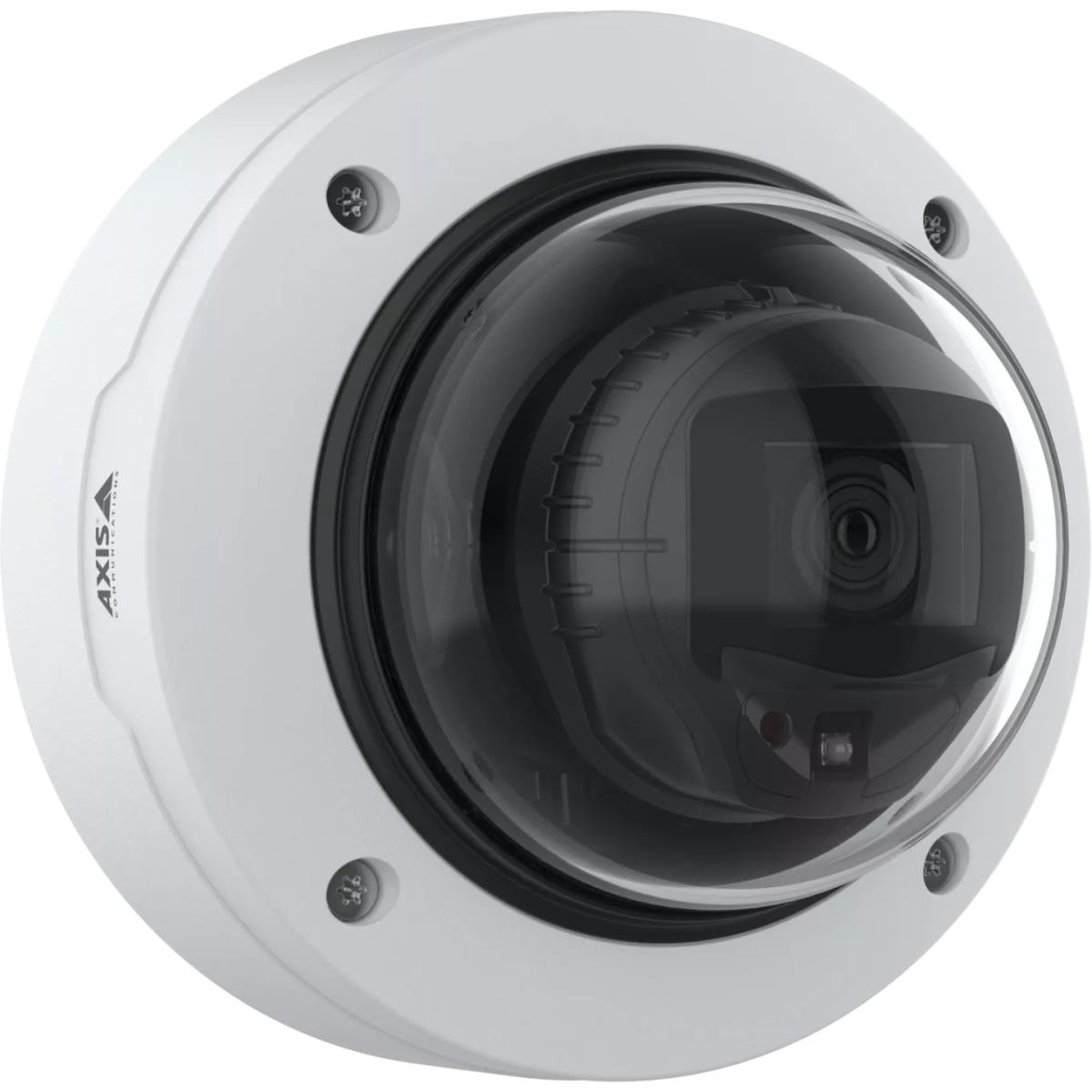

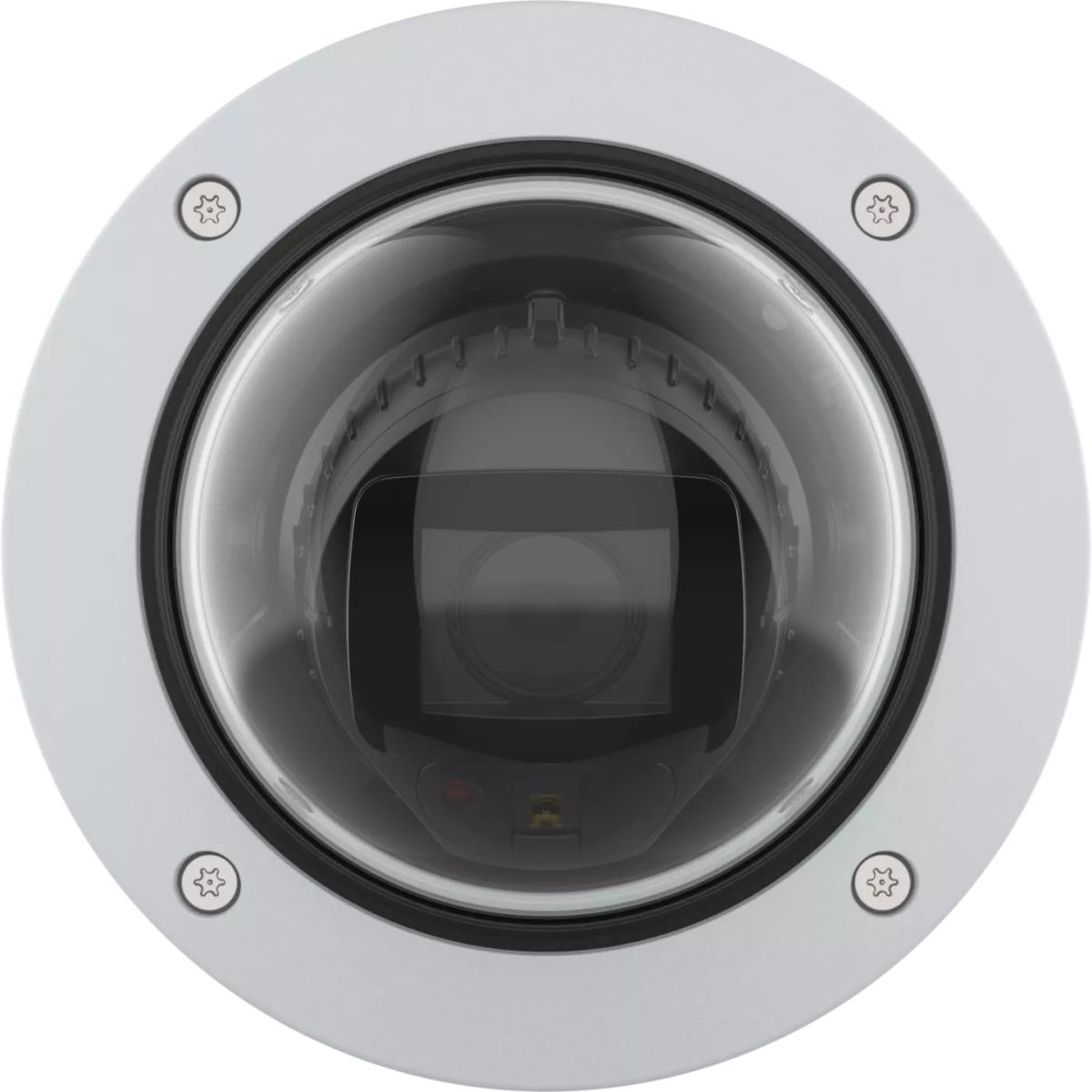

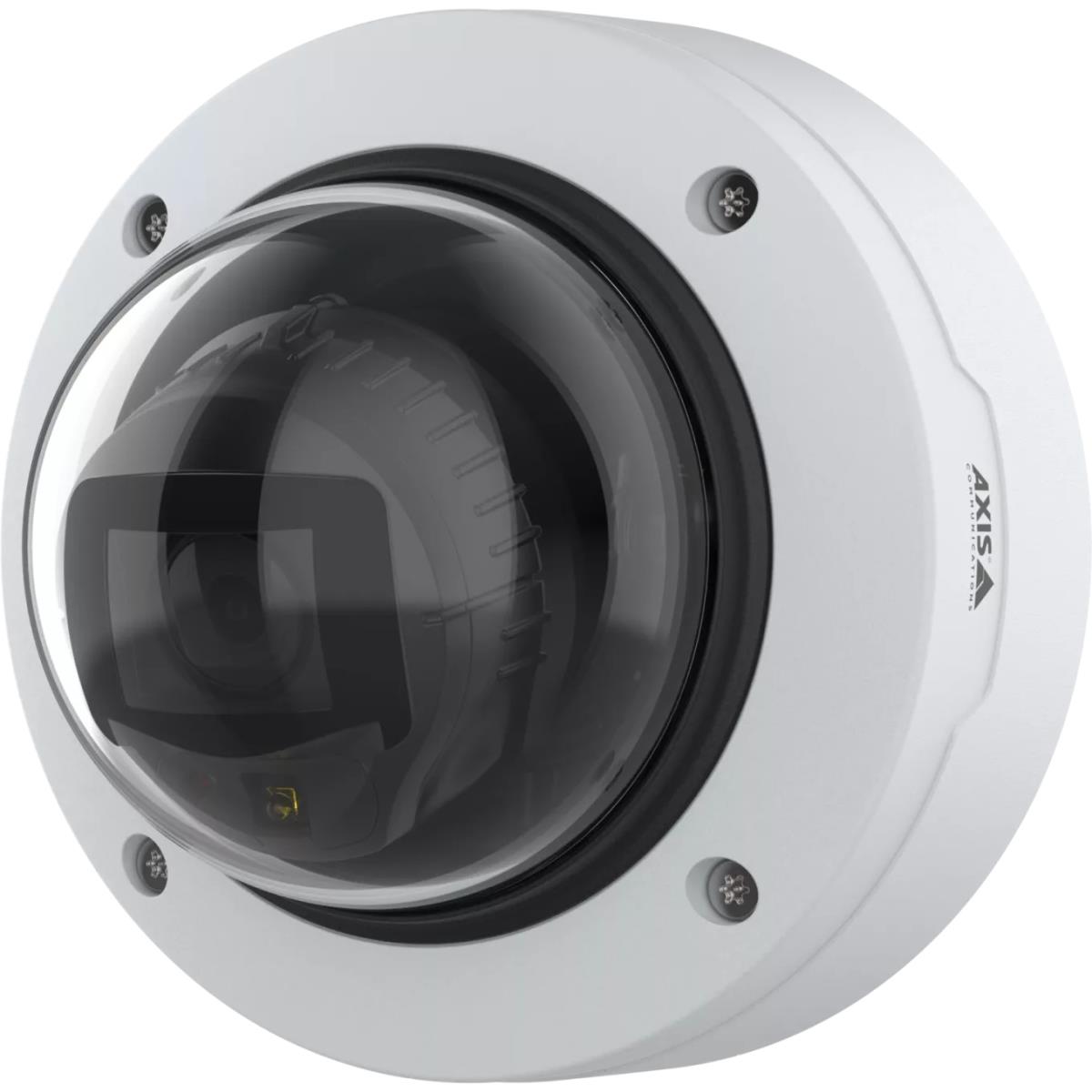

AXIS P3277-LV Dome Camera
Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3277-LV offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
PTZ control
Yes
Auto-tracking
Yes
Tour recording
Yes
People counting function
Yes
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Design
Form factor
Dome
Mounting type
Ceiling/wall
Product colour
Black, White
LED indicators
Yes
Housing material
Plastic, Polycarbonate (PC)
Protection features
Impact resistant, Vandal proof
International Protection (IP) code
IP54
IK code
IK10
Weatherproof
Yes
Fog proof
Yes
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.03 lx
Angle of rotation
190°
Lens viewing angle, horizontal
104°
Lens viewing angle, vertical
76°
Tilt angle range
-50 - 80°
Pan range
-190 - 190°
Camera shutter speed
1/30500 - 2 s
Panoramic camera
Signal-to-Noise Ratio (SNR) (panoramic camera)
55 dB
Image sensor
Number of sensors
1
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Yes
Sensor type
CMOS
Lens system
Number of lenses
1
Lens diameter
1 cm
Focal length range
3 - 8.5 mm
Auto focus
Yes
Maximum aperture number
2.58
Minimum aperture number
1.38
Detect distance (wide)
60 m
Detect distance (tele)
170 m
Observe distance (wide)
24 m
Observe distance (tele)
67 m
Recognize distance (wide)
12 m
Recognize distance (tele)
34 m
Identify distance (wide)
6 m
Identify distance (tele)
17 m
Closest focusing distance
1 m
Night vision
Night vision
Yes
Night vision distance
40 m
LED type
IR
Infra-red wavelength
850 nm
Video
Maximum resolution
2592 x 1944 pixels
Total megapixels
5 MP
Video formats supported
AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions
1920 x 1200 (WUXGA), 2560 x 1440, 2592 x 1944
Frame rate
30 fps
Video streaming
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Flip & mirror
Yes
Text caption overlay
Yes
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Audio
Audio system
2-way
Audio system full duplex
Yes
Audio formats supported
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af
Supported network protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Quality of Service (QoS) support
Yes
Streaming method
Multicast
Storage
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
8 MB
Internal memory
2000 MB
Ports & interfaces
Microphone in
Yes
Terminal block port
Yes
Security
Security algorithms
256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP
Privacy protection
Yes
Intelligent Video Surveillance (IVS) system features
Line crossing detection, Moving object
Human and vehicle targets classification
Yes
Power
Power source type
PoE
Power consumption (typical)
4.7 W
Power consumption (max)
12.6 W
Operational conditions
Operating temperature (T-T)
-40 - 50 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 100%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
149 mm
Depth
149 mm
Height
107 mm
Weight
810 g
Sustainability
Compliance certificates
CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL
Packaging content
Number of cameras
1
Manual
Yes
