Product Details
Projector
Smart projector
No
Screen size compatibility
3810 - 5080 mm (150 - 200")
Projector brightness
5500 ANSI lumens
Projection technology
DLP
Projector native resolution
UHD 4K (3840x2160)
Contrast ratio (typical)
3000000:1
Native aspect ratio
16:9
Number of colours
1.07 billion colours
Vertical scan range
15 - 135 Hz
3D vertical scan range
23 - 240 Hz
Keystone correction, horizontal
-30 - 30°
Keystone correction, vertical
-30 - 30°
Colour gamut
92%
Light source
Light source type
Laser
Service life of light source
20000 h
Service life of light source (economic mode)
30000 h
Lens system
Focal length range
8.6 - 9.4 mm
F-number (relative aperture)
1.809
Zoom capability
Yes
Zoom ratio
1.6:1
Throw ratio
1.36 - 2.18
Horizontal lens shift range
-23 - 23%
Vertical lens shift range
-60 - 60%
Offset
0%
Video
Full HD
Yes
3D
Yes
Supported graphics resolutions
640 x 480 (VGA), 3840 x 2160

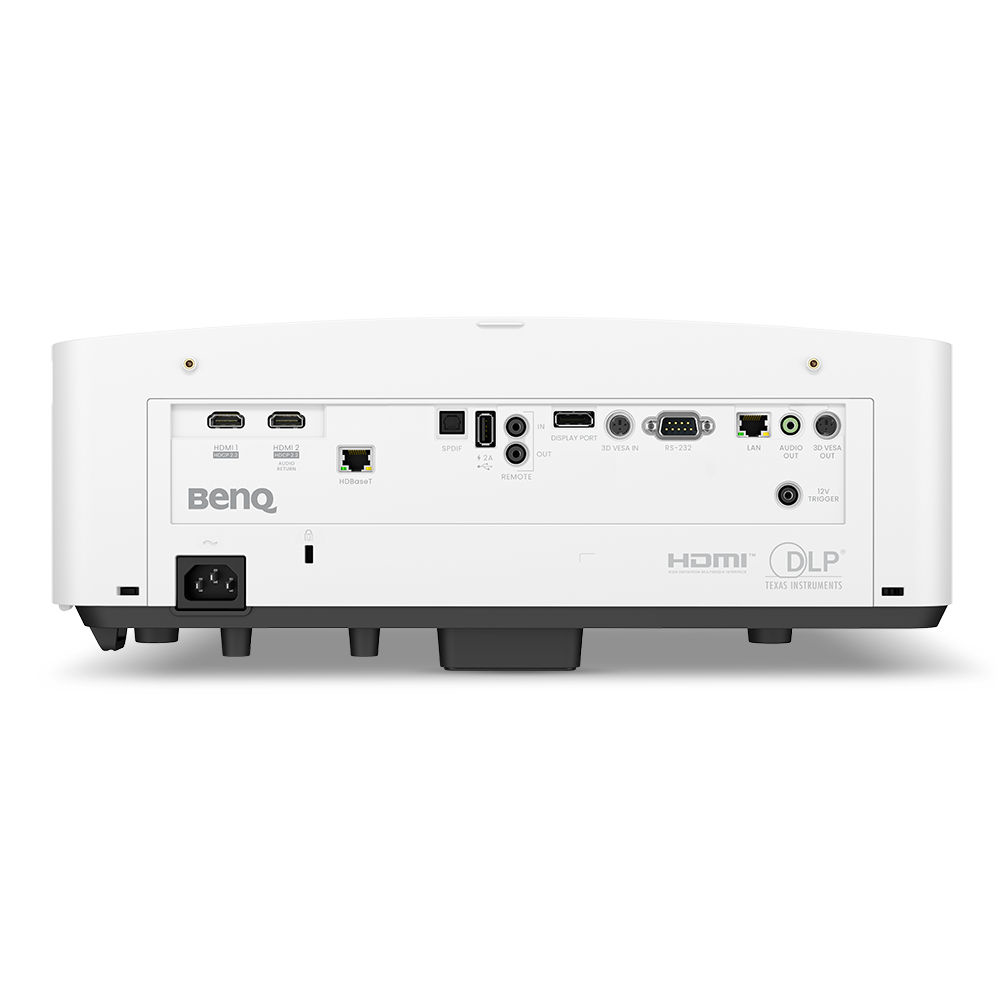

Ports & interfaces
HDMI connector type
Full-size
HDMI version
2.0b
HDBaseT port
Yes
USB 2.0 ports quantity
1
USB 2.0 Type-A ports quantity
1
Audio (L/R) in
1
Audio (L/R) out
1
Serial interface type
RS-232
VGA (D-Sub) ports quantity
1
S/PDIF out port
Yes
HDMI ports quantity
2
3D sync port
Yes
3G-SDI input
1
3G-SDI output
Yes
AC (power) in
Yes
DC-in jack
Yes
Audio Return Channel (ARC)
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Wi-Fi
No
Features
HDCP
Yes
HDCP version
2.2
Multimedia
Built-in speaker(s)
Yes
RMS rated power
10 W
Number of built-in speakers
1
Design
Market positioning
Business
Product type
Standard throw projector
Product colour
White
Display
Built-in display
No
Power
Power source
AC
Power consumption (typical)
405 W
Power consumption (standby)
0.5 W
Power consumption (max)
520 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Cord length
1.8 m
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
416 mm
Depth
351 mm
Height
166 mm
Weight
7 kg
Technical details
Image lag time
33.4 ms
Other features
Security updates end date
31/12/2026
Information
| Part Number: | 9H.JS277.14E |
