Introduction

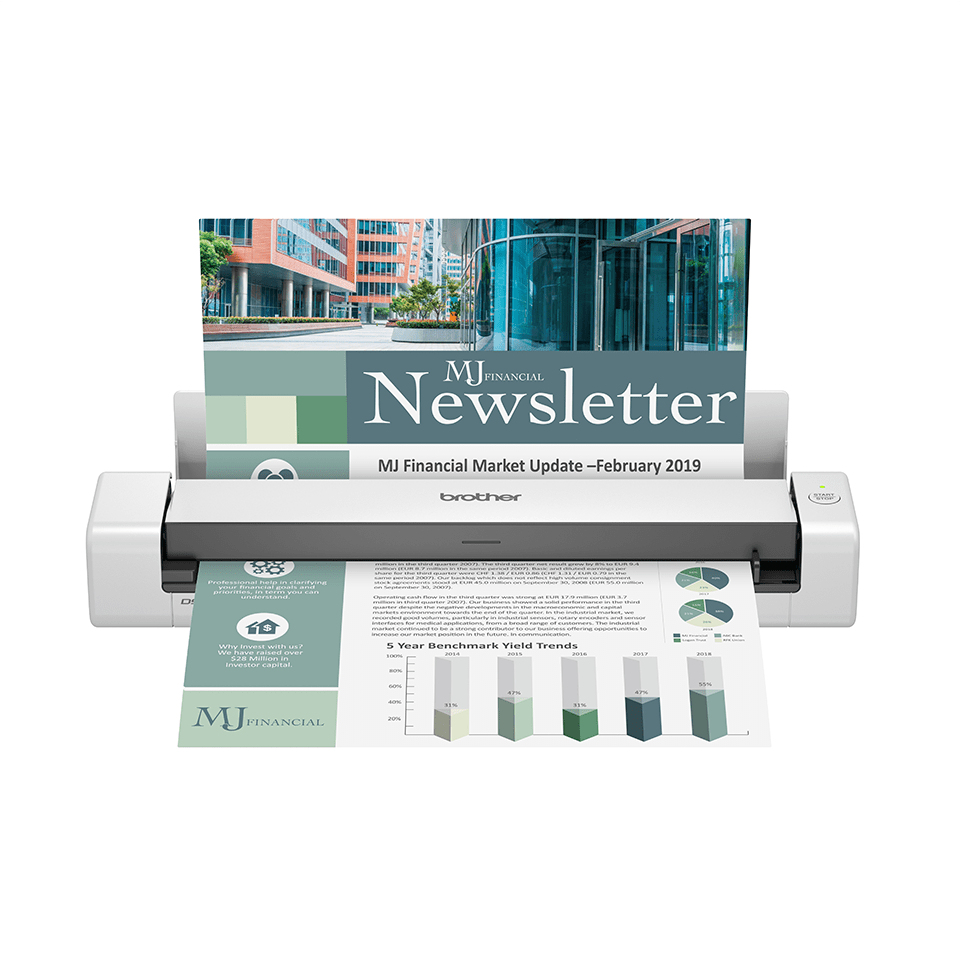

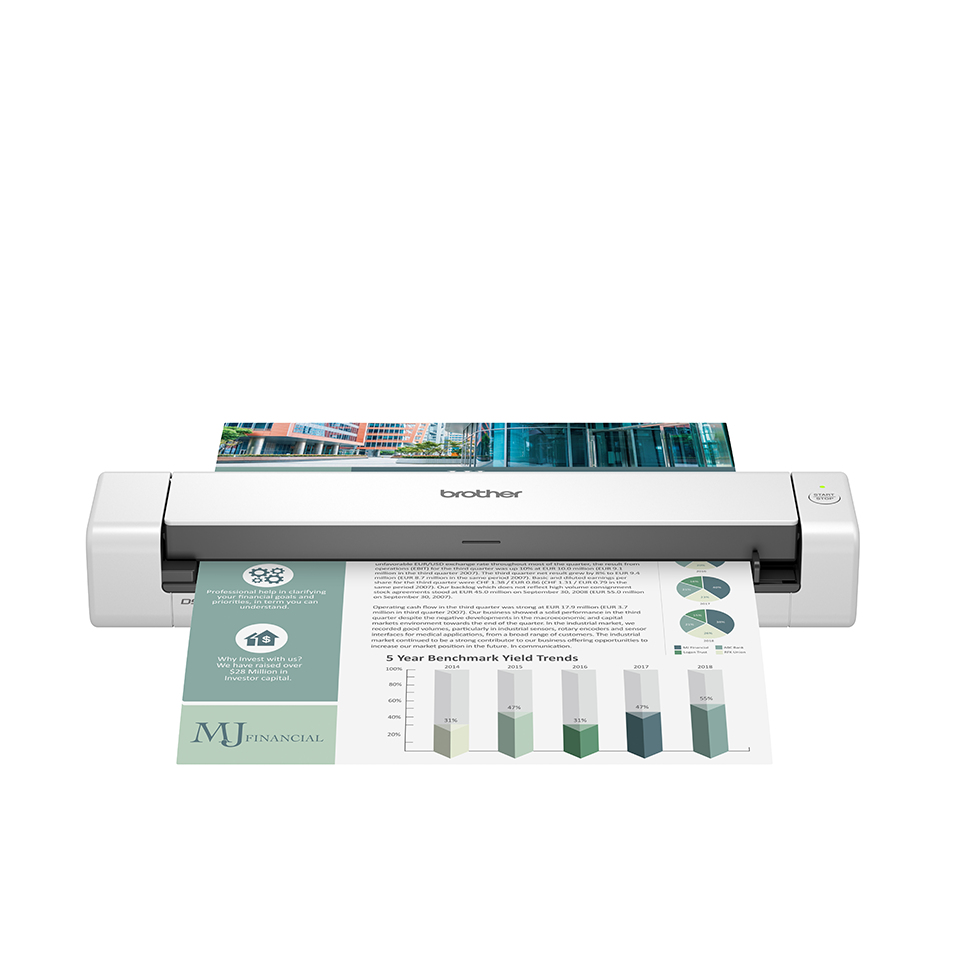

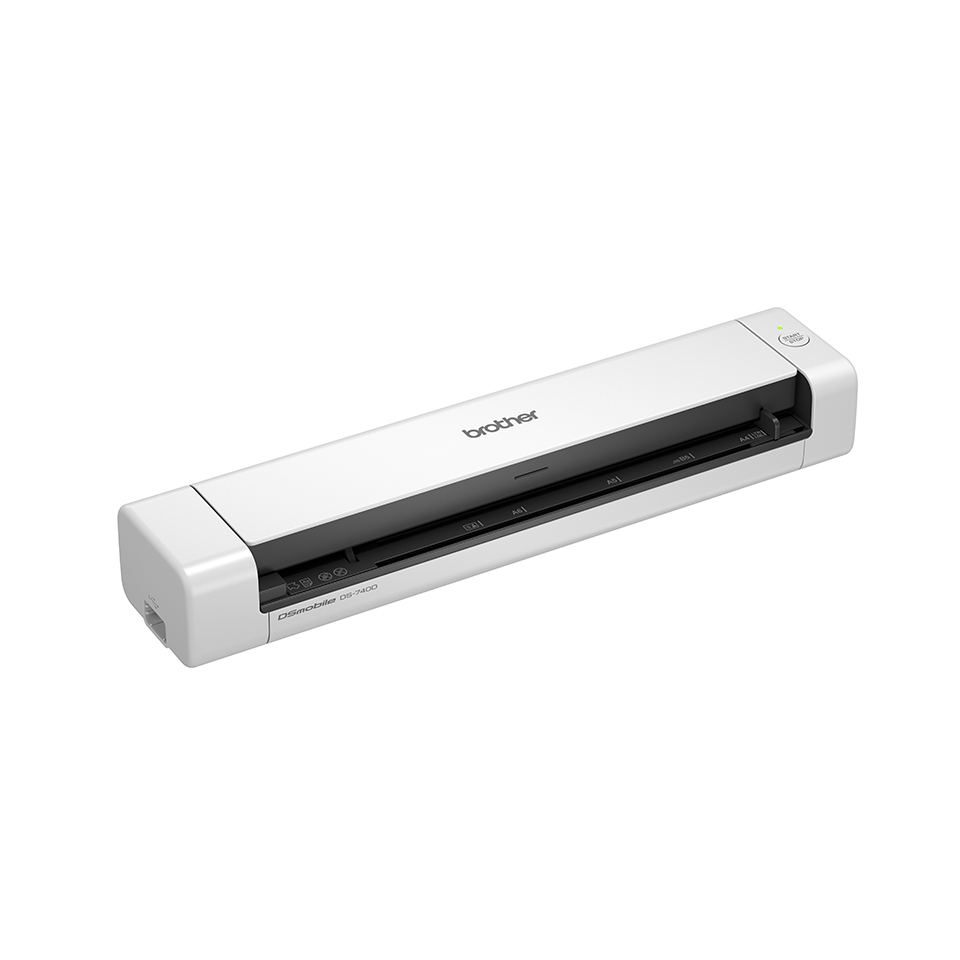

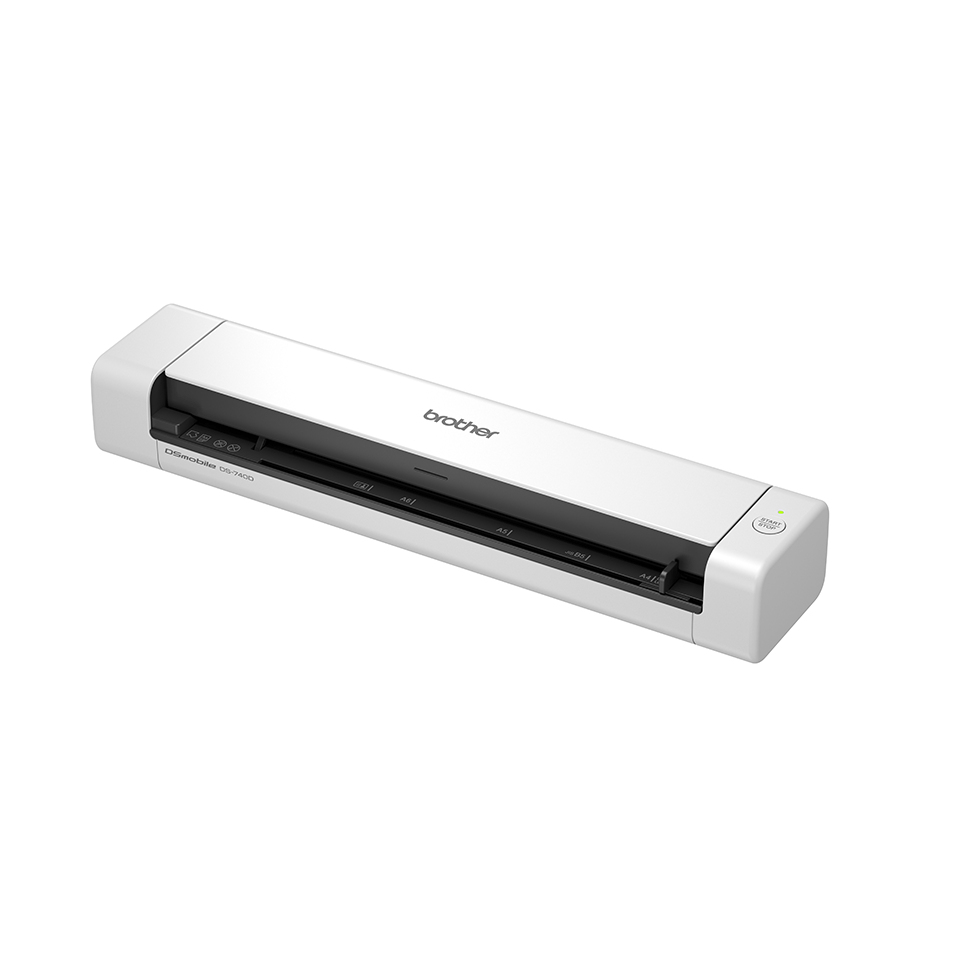

DSmobile DS-740D 2-sided Portable Document Scanner
Scan 2-sided and go with the DSmobile DS-740D. Simple to use, this is a great choice for scanning when you are out of the office or where office space is limited.
Bring your documents to life with the DSmobile DS-740D portable document scanner.
Enjoy scanning, saving and sharing your files whether you are in the office or out on the road. Whether it's receipts, 2-sided documents or ID cards, your files are easily transformed into digital files. Making your information safer, easier to find and more convenient to edit or share.
The unique roller system means you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.
Technical details
Pallet type
800 x 1200 mm
Harmonized System (HS) code
84716070
Logistics data
Products per pallet
240 pc(s)
Country of origin
China
Master (outer) cases per pallet
80 pc(s)
Layers per pallet
8 pc(s)
Pallet gross weight
286 kg
Pallet gross height
16.7 cm
Master (outer) cases per pallet layer
10 pc(s)
Scanning
Maximum scan size
215.9 x 1828.8 mm
Optical scanning resolution
600 x 600 DPI
Enhanced scan resolution
1200 x 1200 DPI
Colour scanning
Y
Duplex scanning
Y
Input colour depth
48 bit
Output colour depth
24 bit
Greyscale levels
256
Black/white scanning colour modes
Grayscale, Monochrome
Design
Scanner type
Sheet-fed scanner
Product colour
Black, White
Built-in display
N
Performance
Scan to
E-mail, File, Image, OCR
Scan drivers
ICA,SANE,TWAIN,WIA
Scanning noise level
53 dB
Sound pressure level (max)
42 dB
Internal memory
256 MB
Input capacity
Standard input capacity
1 sheets
Paper handling
Scanning media types supported
Business Card, Plain paper, Plastic Card
Maximum ISO A-series paper size
A4
Card thickness (max)
1.24 mm
Maximum scan width
21.6 cm
Maximum scan length
182.9 cm
Ports & interfaces
USB port
Y
USB version
3.2 Gen 1 (3.1 Gen 1)
USB connector type
Micro-USB B
Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1)
Power
Power supply type
USB
Power consumption (typical)
2.9 W
Power consumption (standby)
1.4 W
Power consumption (off)
0.01 W
Packaging data
Quantity per pack
1 pc(s)
Package width
377 mm
Package depth
162 mm
Package height
76 mm
Package weight
1.02 kg
System requirements
Windows operating systems supported
Y
Mac operating systems supported
Y
Linux operating systems supported
Y
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
301 mm
Depth
63 mm
Height
45.3 mm
Weight
646 g
Packaging content
Warranty card
Y
Cables included
Micro-USB
Quick start guide
Y
