Introduction

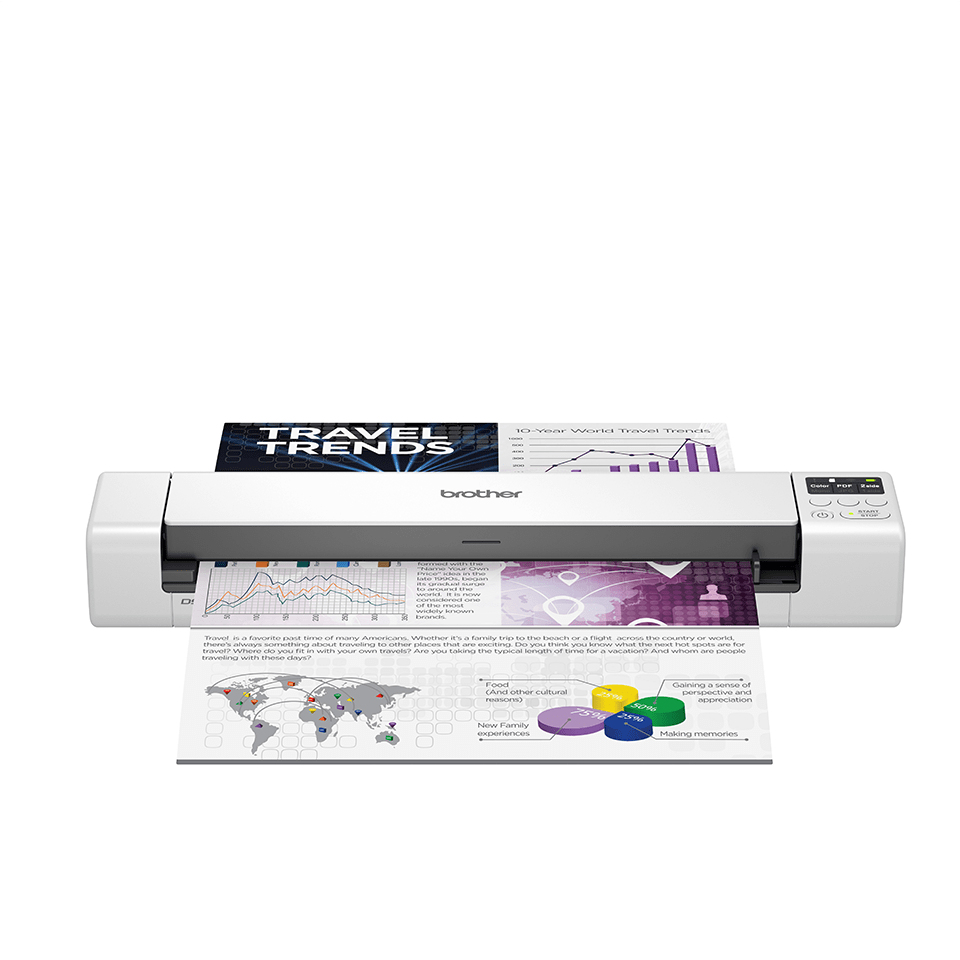

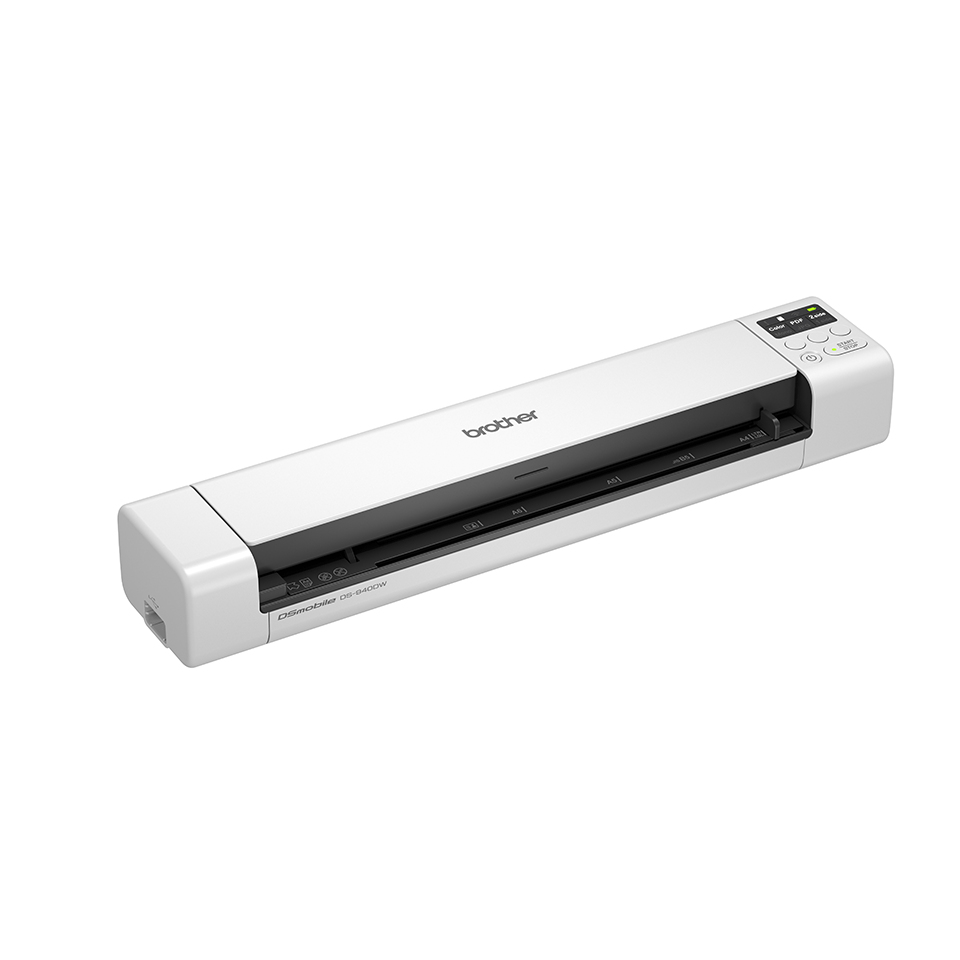

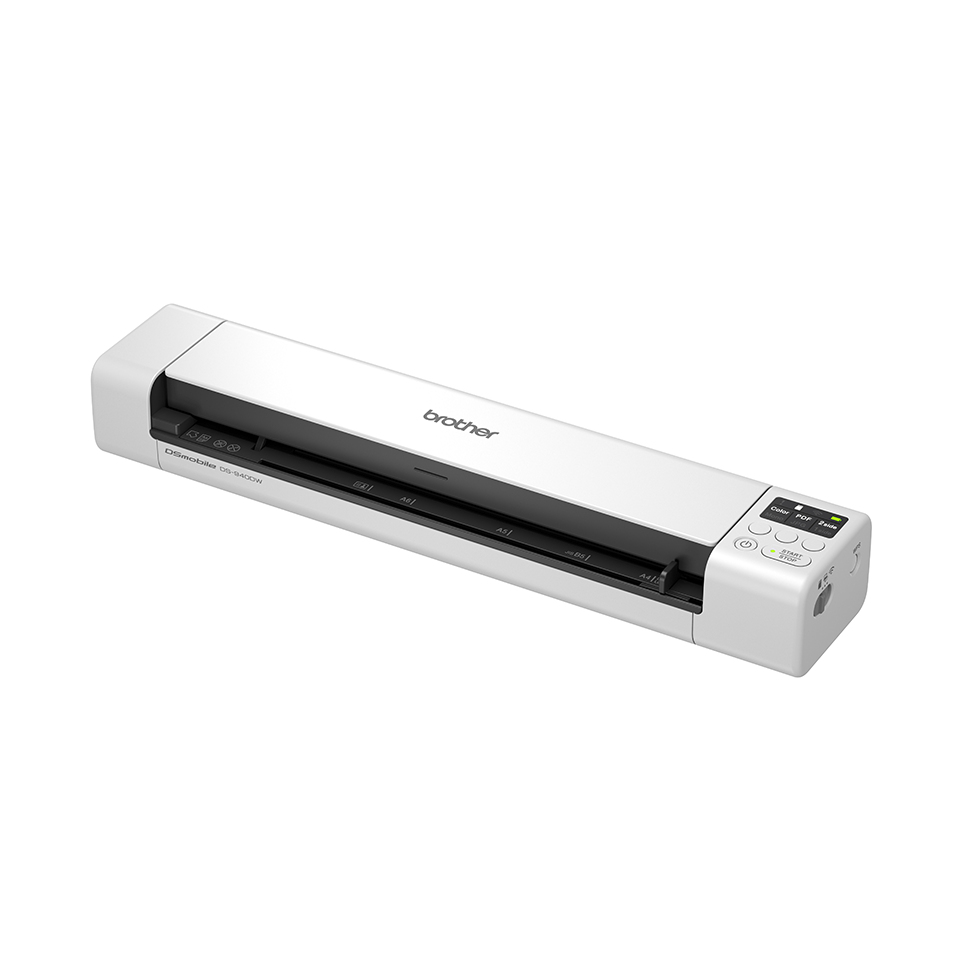

Brother DSmobile DS-940DW Wireless, 2-sided Portable Document Scanner
Wireless scan and go with the DSmobile DS-940DW. Versatile and truly portable with built-in rechargeable battery. Staying on top of your paperwork when you are out of the office is simple.
The DSmobile DS-940DW is engineered to be truly flexible. Featuring a built-in battery, Wi-Fi and intuitive LCD panel, setup is effortless. Digitising your files whether in the office where space is limited or out on the road is simple.
Scan your documents straight to the cloud using Brother's mobile app and easily share your documents with colleagues wherever you are. Your information is kept safe, effortless to find and more convenient to edit.
With a unique "U-path" roller system, you are not required to have extra space behind the scanner for the document to feed-through. As the document goes in, it glides over the top of the scanner and is returned to you.
Other features
Spare part retention
5 year(s)
Technical details
Pallet type
800 x 1200 mm
Harmonized System (HS) code
84716070
Logistics data
Products per pallet
216 pc(s)
Country of origin
China
Master (outer) cases per pallet
72 pc(s)
Layers per pallet
8 pc(s)
Pallet gross weight
274.3 kg
Pallet gross height
15.9 cm
Master (outer) cases per pallet layer
9 pc(s)
Scanning
Maximum scan size
215.9 x 1828.8 mm
Optical scanning resolution
600 x 600 DPI
Enhanced scan resolution
1200 x 1200 DPI
Colour scanning
Y
Duplex scanning
Y
Input colour depth
48 bit
Output colour depth
24 bit
ADF scan speed (b/w, A4)
15 ppm
ADF scan speed (colour, A4)
15 ppm
Duplex ADF scan speed (colour, A4)
30 ipm
Black/white scanning colour modes
Grayscale, Monochrome
Design
Scanner type
Sheet-fed scanner
Product colour
Black, White
Built-in display
N
Performance
Scan to
E-mail, File, Image, Memory card, OCR
Scan drivers
ICA,SANE,TWAIN,WIA
Scanning noise level
53 dB
Sound pressure level (max)
42 dB
Internal memory
512 MB
Compatible memory cards
MicroSD (TransFlash)
Input capacity
Standard input capacity
1 sheets
Paper handling
Scanning media types supported
Business Card, Plain paper, Plastic Card
Maximum ISO A-series paper size
A4
Card thickness (max)
1.24 mm
Maximum scan width
21.6 cm
Maximum scan length
182.9 cm
Ports & interfaces
USB port
Y
USB version
3.2 Gen 1 (3.1 Gen 1)
USB connector type
Micro-USB B
Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN
Power
Power supply type
USB
Power consumption (typical)
3.6 W
Power consumption (standby)
2.2 W
Power consumption (off)
0.11 W
Network
Wi-Fi
Y
Wi-Fi standards
802.11b,802.11g,Wi-Fi 4 (802.11n)
Security algorithms
64-bit WEP,128-bit WEP,WPA-AES,WPA-PSK,WPA-TKIP,WPA2-AES,WPA2-PSK
Wi-Fi Direct
Y
Supported network protocols (IPv4)
DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder,SNTP Client
Packaging data
Quantity per pack
1 pc(s)
Package width
377 mm
Package depth
162 mm
Package height
76 mm
Package weight
1.11 kg
System requirements
Windows operating systems supported
Y
Mac operating systems supported
Y
Linux operating systems supported
Y
Operational conditions
Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
319 mm
Depth
63.1 mm
Height
45.4 mm
Weight
699 g
Packaging content
Warranty card
Y
Cables included
Micro-USB
Quick start guide
Y
