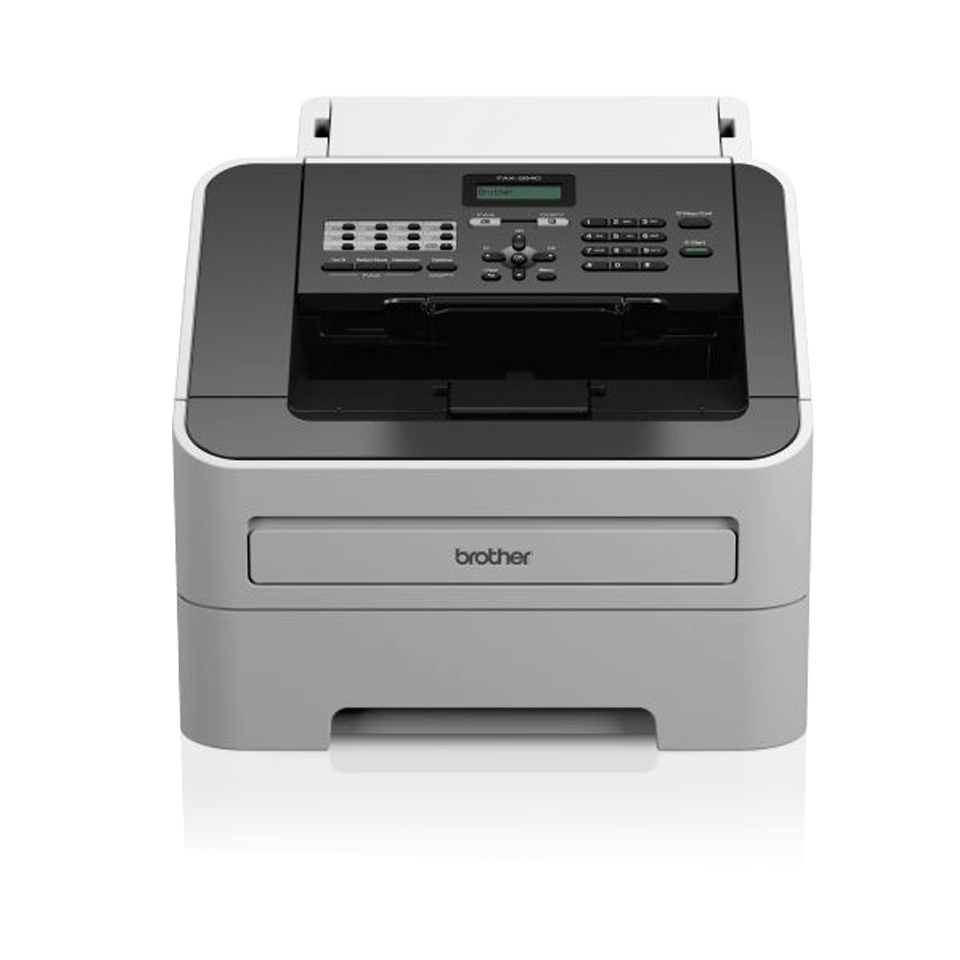

Product Details
Introduction
- High speed super G3 (33.6kbps) faxing.
- 30 sheet automatic document feeder and 250 sheet lower paper tray.
- 22 one-touch dials.
- Up to 400 page memory transmission/ reception.
- High speed copying at up to 20cpm.
- Supplied with a 1000 page toner.
Weight & dimensions
Width
450 mm
Depth
430 mm
Height
470 mm
Dimensions (WxDxH)
368 x 360 x 311 mm
Weight
9 kg
Logistics data
Products per pallet
16 pc(s)
Master (outer) cases per pallet
16 pc(s)
Layers per pallet
4 pc(s)
Pallet gross weight
196.1 kg
Pallet gross height
18.9 cm
Master (outer) cases per pallet layer
4 pc(s)
Technical details
Pallet type
1200 x 1000 mm
Product colour
Black, Grey
Sustainability certificates
ENERGY STAR
Other features
Country of origin
China
Fax
Type
Laser
Colour faxing
N
Modem speed
33.6 Kbit/s
Fax resolution modes
Fine, Photo, Standard, Super fine
Fax transmission speed
2.5 sec/page
Error Correction Mode (ECM)
Y
Fax coding methods
JBIG, MH, MMR, MR
Fax compatibility
ITU-T G3
Fax delayed sending
Y
Fax forwarding
Y
Fax dual access
Y
Fax broadcasting
272 locations
Fax speed dialing (max numbers)
200
Auto-redialing
Y
Auto reduction
Y
Group dial
8
One-touch dials
22
Distinctive ring
Y
Out-of-paper reception
400 pages
Answering machine
Answering machine
N
Copying
Copy function
Y
Maximum copy resolution
300 x 600 DPI
Copy speed (black, normal quality, A4)
20 cpm
Maximum number of copies
99 copies
Copier resize
25 - 400%
N-in-1 copy function (N=)
2,4
Greyscale levels
256
Paper handling
Maximum standard media size
A4
ISO A-series sizes (A0...A9)
A4,A5,A6
Supported media weight(s)
60 - 105 g/m²
Input & output capacity
Standard input capacity
250 sheets
Auto document feeder (ADF) input capacity
20 sheets
Standard output capacity
100 sheets
Display
Display
LCD TFT
Display number of lines
2 lines
Display number of characters
16
Processor
Processor family
ARM9
Processor frequency
200 MHz
Memory
Maximum internal memory
16 MB
Fax memory
400 pages
Sound emission
Noise level
53 dB
Noise level (idle)
30 dB
Power
Power consumption (typical)
365 W
Power consumption (standby)
55 W
Power consumption (PowerSave)
1.5 W
AC input voltage
220-240 V
AC input frequency
50 - 60 Hz
Packaging data
Package dimensions (WxDxH)
476 x 458 x 436 mm
Package weight
12.9 kg
Information
| Part Number: | FAX2840ZU1 |
