Introduction

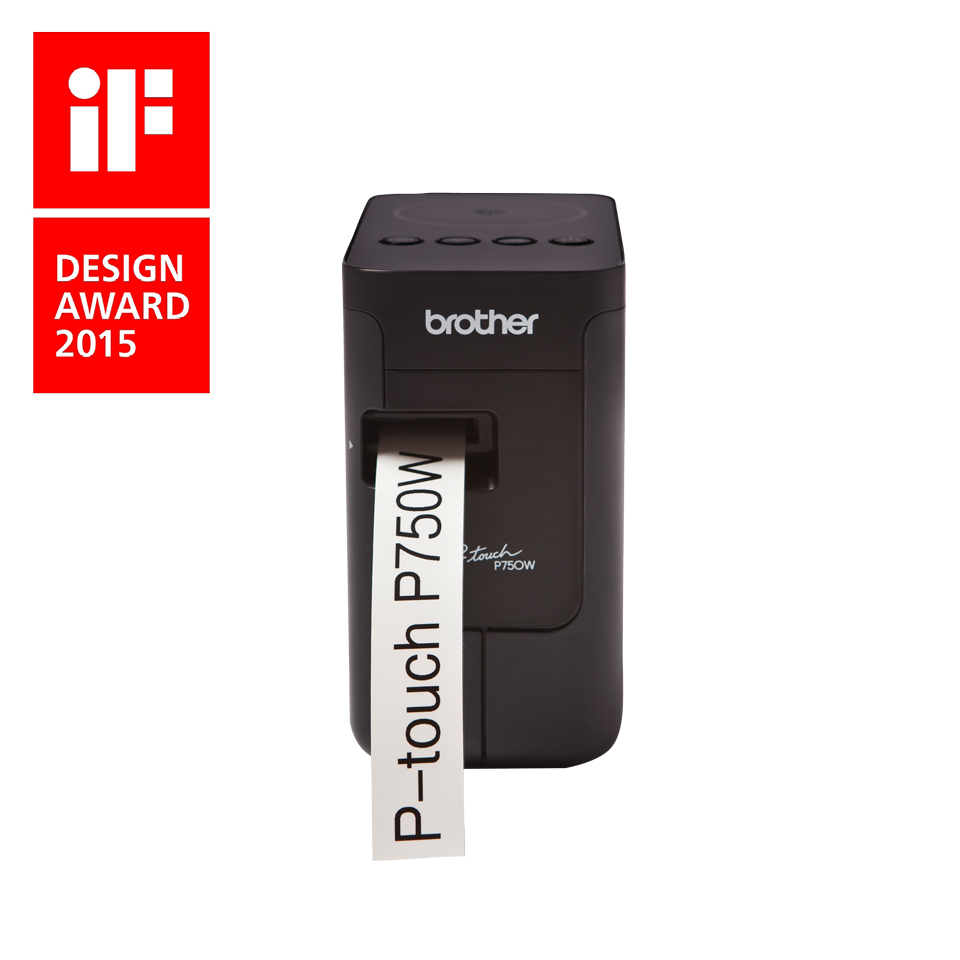

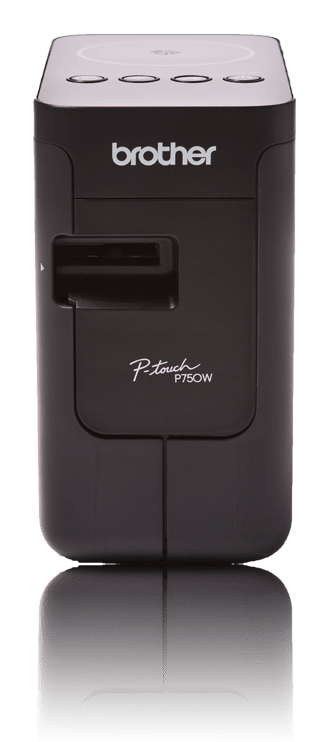

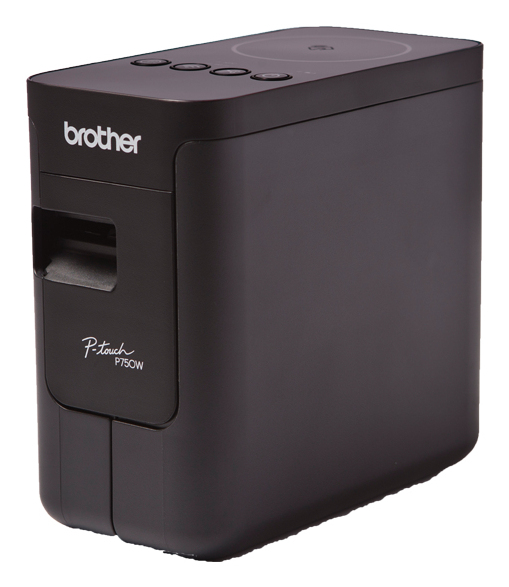

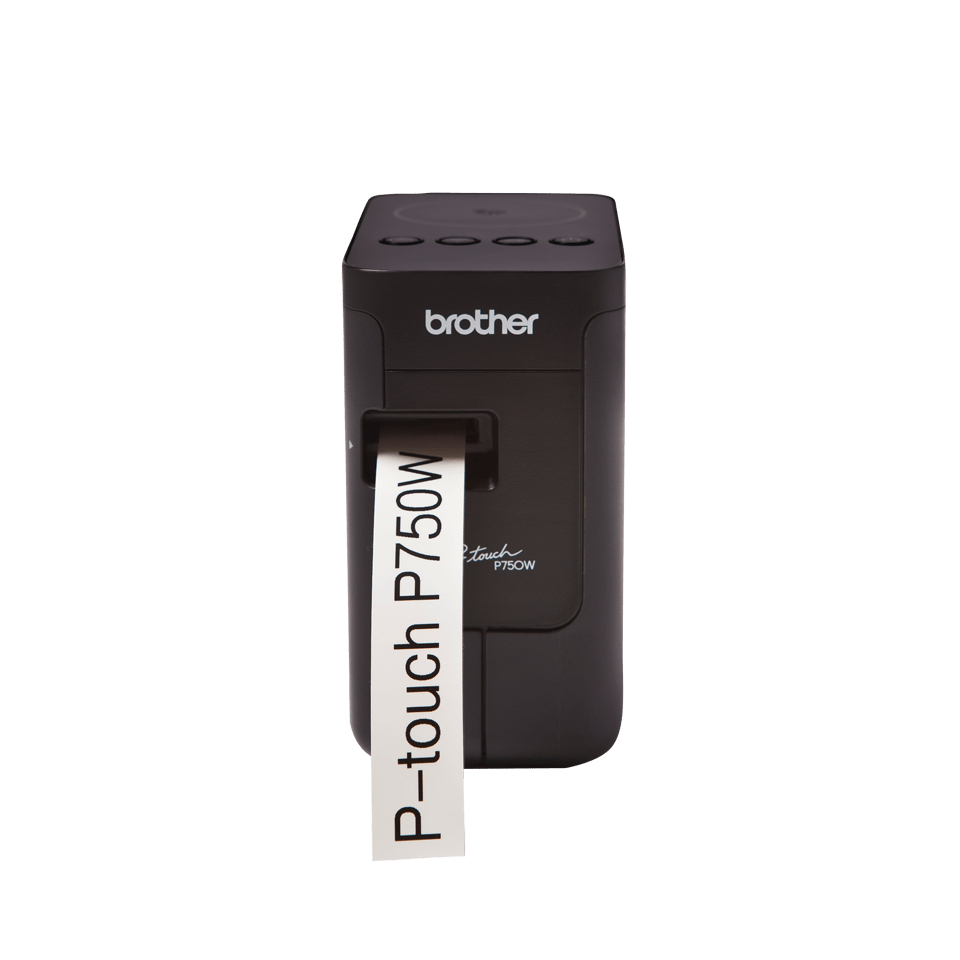

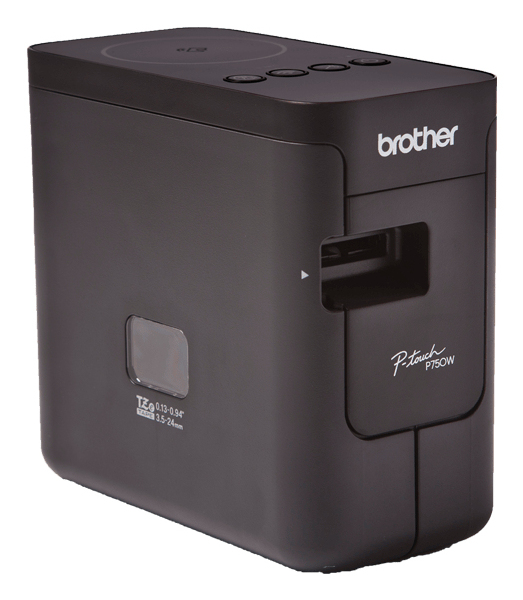

The PT-P750W is a powerful, yet easy-to-use label maker with plenty of wireless and wired connectivity options. It is easy for multiple users, even on different computers and mobile devices, to create and print virtually any durable, colorful, professional label they can imagine.
With a built-in wireless 802.11b/g/n interface, the PT-P750W is the ideal choice for sharing a label printer amongst multiple users. Pre-loaded labeling software lets you plug into nearly any PC or Mac computer via its USB interface and almost immediately begin designing and printing labels, with the convenience of using a monitor and full-sized keyboard. PC and Mac users can also greatly expand the capabilities of the PT-P750W by installing the robust P-touch Editor Label Design Software, which is available as a free download.
Create and print labels with ease right from compatible AppleŽ iOS or AndroidT mobile devices using the free Brother iPrint&Label app. The PT-P750W is also NFC compatible, so you can "touch to connect" to quickly establish contact with most NFC-capable devices.
Though it's great for individual label printing, the PT-750W is particularly well-suited to multi-label creation jobs thanks to its fast print speeds, repeat printing capability, and automatic half or full tape cutter.
The versatile PT-750W gives you several powering options as well. Use the included AC cable or 6 AA batteries (sold separately) to power the unit for use at a desk, or make it truly portable by running it on a rechargeable Li-ion battery.
Other features
Spare part retention
5 year(s)
Country of origin
China
Label type
3.5, 6, 9, 12, 18, 24 mm
Number of frames
154
Design
Built-in display
No
Product colour
Black
Packaging data
Logistics data
Pallet gross height
16 cm
Pallet gross weight
162 kg
Master (outer) cases per pallet
30 pc(s)
Master (outer) cases per pallet layer
6 pc(s)
Layers per pallet
5 pc(s)
Products per pallet
90 pc(s)
Technical details
Pallet type
800 x 1200 mm
Harmonized System (HS) code
84433210
Sustainability certificates
ENERGY STAR
Printing
Maximum resolution
180 x 180 DPI
Print speed
30 mm/sec
Maximum printing width
2.4 cm
Maximum print height
1.8 cm
Vertical printing
Y
Paper handling
Autocutter
Y
Maximum label width
2.4 cm
Maximum label length
4 m
Ports & interfaces
Connectivity technology
Wired & Wireless
Ethernet LAN
N
Wi-Fi
Y
USB port
Y
USB 2.0 ports quantity
1
Performance
Built-in barcodes
AZTECCODE, CODABAR (NW-7), Code 39, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, GS1-128, ISBN-2, ISBN-5, ITF-25, MaxiCode, Micro QR Code, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts
12
Tape type
HSE/TZe
Tape cutting
Automatic
Image formats supported
BMP,JPG,TIF
Power
Battery type
Built-in battery
Battery technology
Lithium-Ion (Li-Ion)
Auto power off
Y
System requirements
Windows operating systems supported
Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64
Mac operating systems supported
Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Weight & dimensions
Width
78 mm
Depth
152 mm
Height
143 mm
Weight
800 g
Packaging content
Cables included
USB
Bundled software
P-touch Editor Lite
Quick start guide
Y
AC adapter included
Y
Carrying case
Y
