Introduction

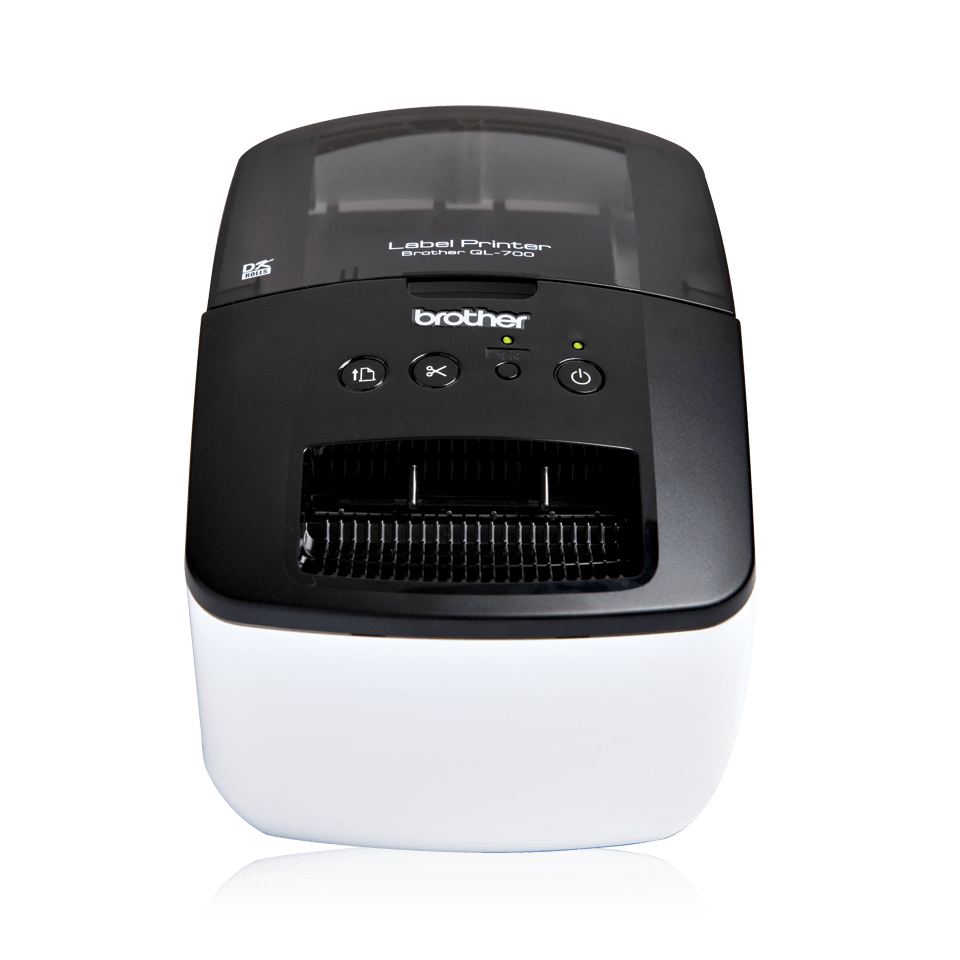

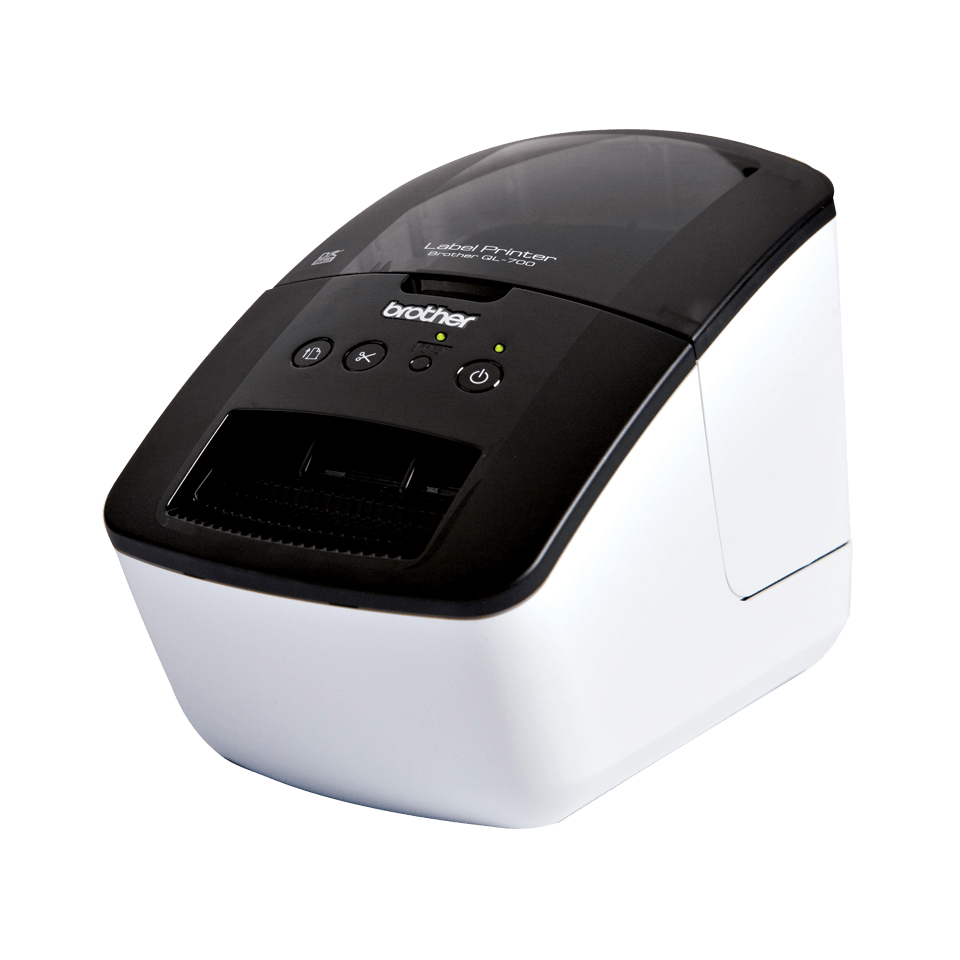

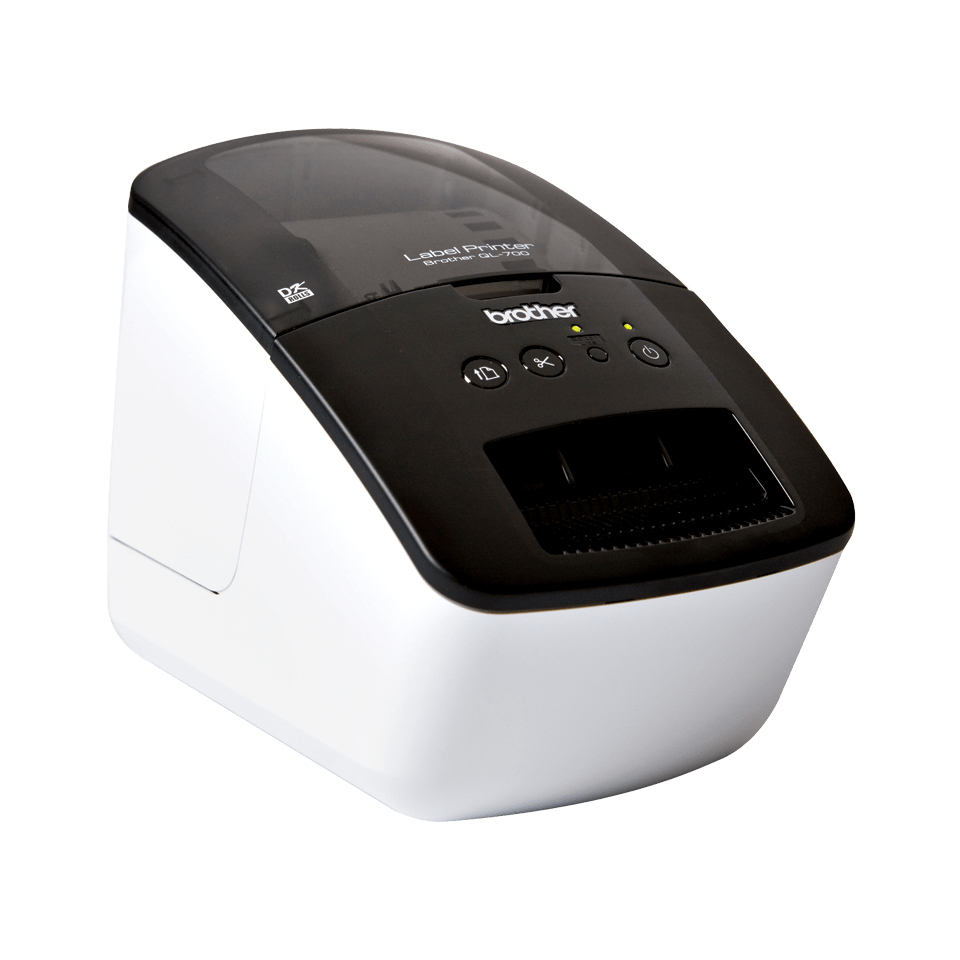

Professional, high-speed label printer helps you quickly tackle labeling tasks in your busy office.
Create cost-effective paper labels for file folders, envelopes, packages, and DVDs -even create banners and signs up to 3-ft long. The ultra-fast print speeds of up to 93 labels per minute+ help save time on big projects. Whether you print 1 label or multiple labels at a time, the convenient, automatic cutter speeds your job along.
Use one of the two easy ways to create labels.Press the Editor Lite button to launch the intuitive, built-in Plug and Label software to quickly type and print labels without installing software+. Or install the included P-touch® Editor label design software to create more elaborate labels.
Plus, print postage and save trips to the Post Office. Print the exact postage you need, when you need it right from your desktop+.
Printing
Maximum printing width
6.2 cm
Rotated printing
Yes
Print technology
Direct thermal
Maximum resolution
300 x 300 DPI
Print speed
150 mm/sec
Maximum print height
5.9 cm
Vertical printing
Y
Power
AC input voltage
120 V
AC input frequency
60 Hz
AC adapter output current
1.7 A
Other features
Spare part retention
5 year(s)
Country of origin
China
Dimensions (WxDxH)
128 x 221 x 153 mm
Network ready
N
Number of label formats
22
Quantity outer carton
3 pc(s)
Packaging data
Package width
260.4 mm
Package depth
184.2 mm
Package height
234.9 mm
Quantity per pack
1 pc(s)
Package dimensions (WxDxH)
182 x 262 x 233 mm
Package weight
2.100 g
Packaging content
Bundled software
Software, USB Cable, Power Cord, Quick Setup Guide, Documentation, Starter rolls: DK-1201 Die-cut Standard Address Labels (100 labels), plus DK-2205 2.4" Continuous Length Paper Tape (26.2 ft.)
Design
Built-in display
No
Product colour
Black, White
Ports & interfaces
Bluetooth
No

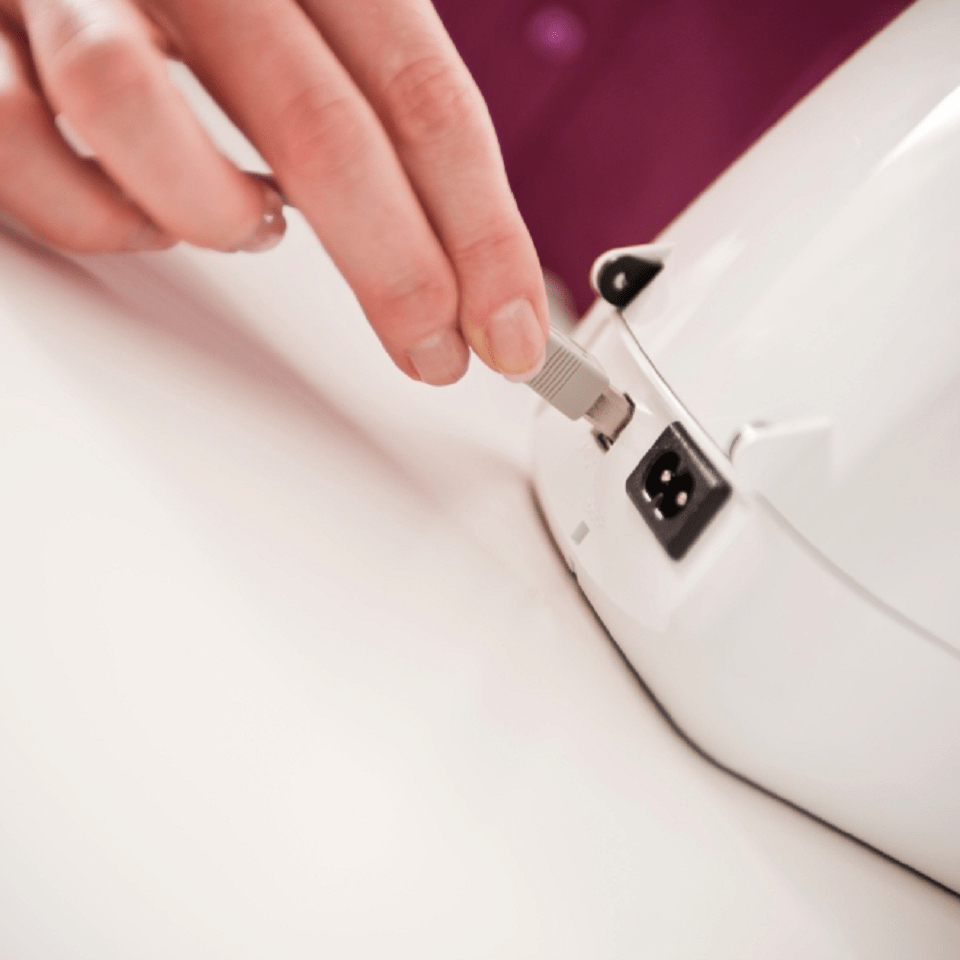

USB port
Yes
Ethernet LAN
N
Wi-Fi
N
PC connected
Y
Logistics data
Pallet gross height
16.5 cm
Pallet gross weight
255.6 kg
Master (outer) cases per pallet
36 pc(s)
Master (outer) cases per pallet layer
6 pc(s)
Layers per pallet
6 pc(s)
Products per pallet
108 pc(s)
Master (outer) case width
274 mm
Master (outer) case length
555 mm
Technical details
Pallet type
800 x 1200 mm
Harmonized System (HS) code
84433210
Paper handling
Maximum label width
6.2 cm
Maximum label length
1 m
Performance
Built-in barcodes
CODABAR (NW-7),EAN128,EAN13,EAN8,Interleaved 2/5,PDF417,POSTNET,UPC-A,UPC-E
Tape type
DK
Tape cutting
Automatic
System requirements
Weight & dimensions
Width
128 mm
Depth
221 mm
Height
153 mm
Weight
1.1 kg
