Introduction
Robust, reliable, high-speed document scanner, offering impressive image quality and fast capture speeds.
Productivity-boosting, elegantly designed desktop scanner

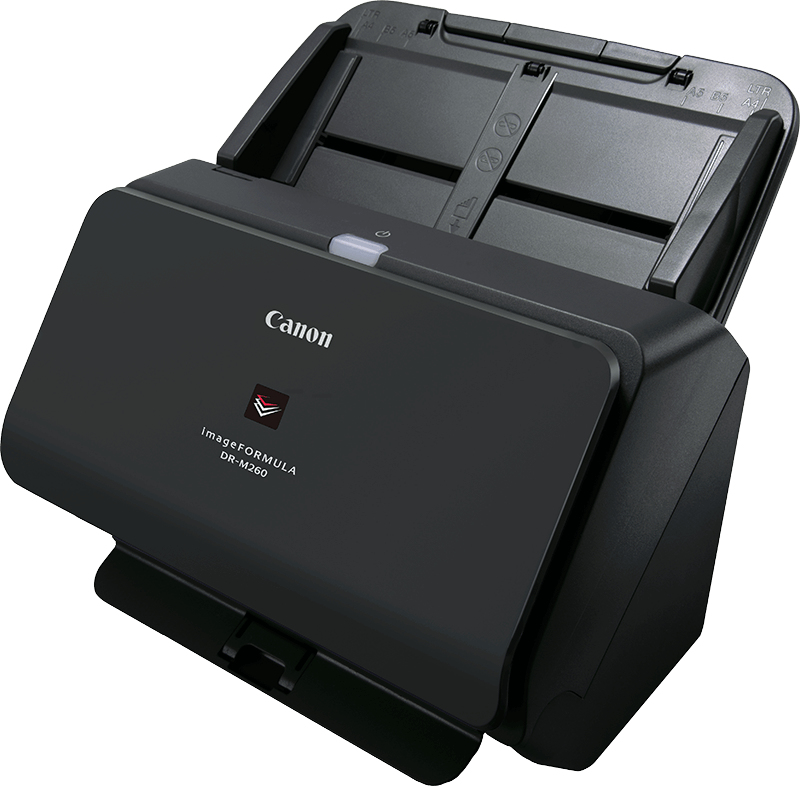

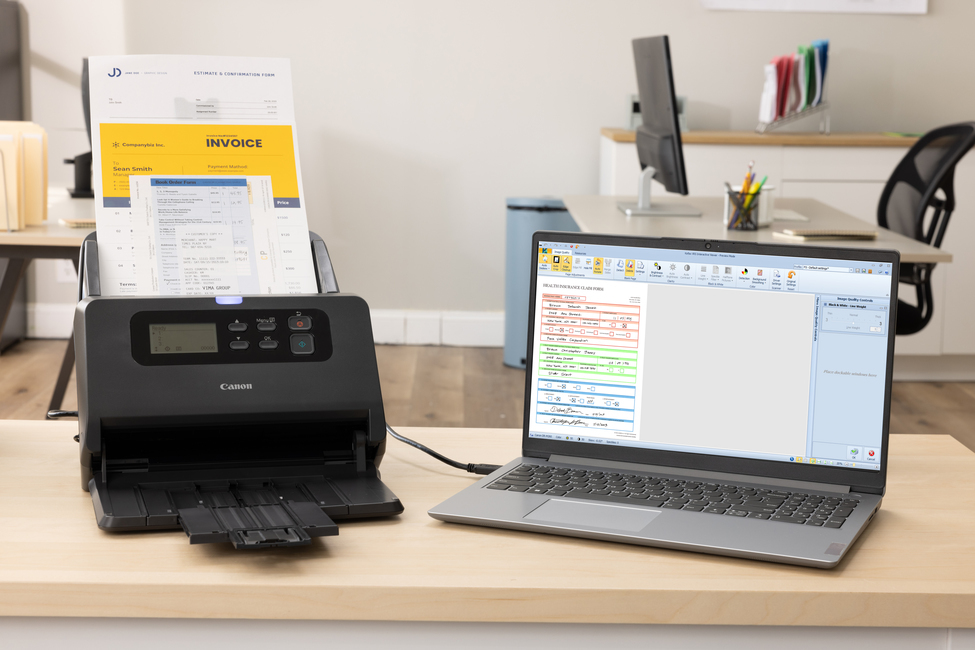

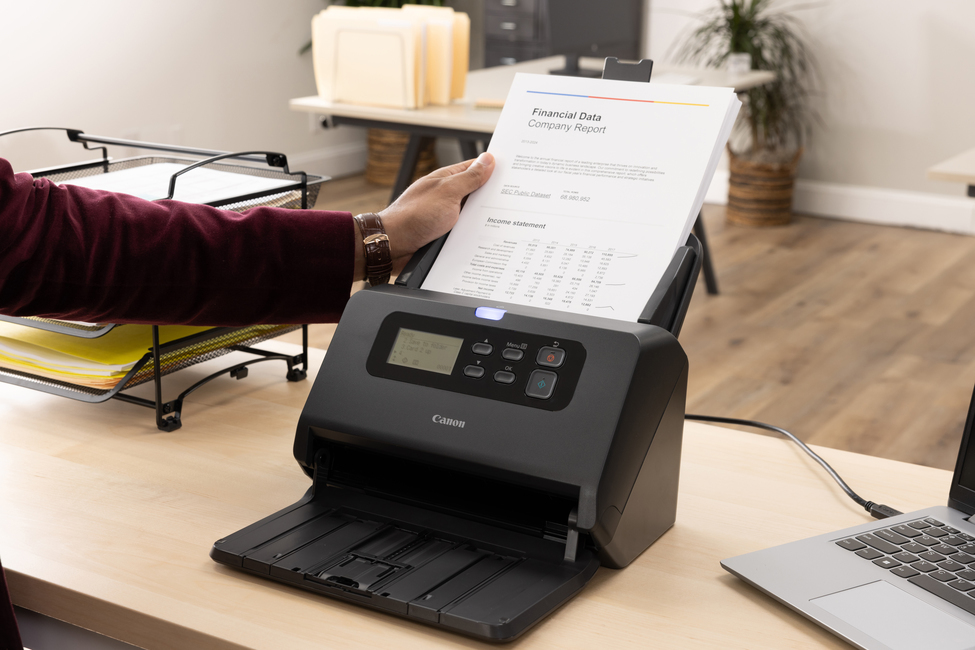

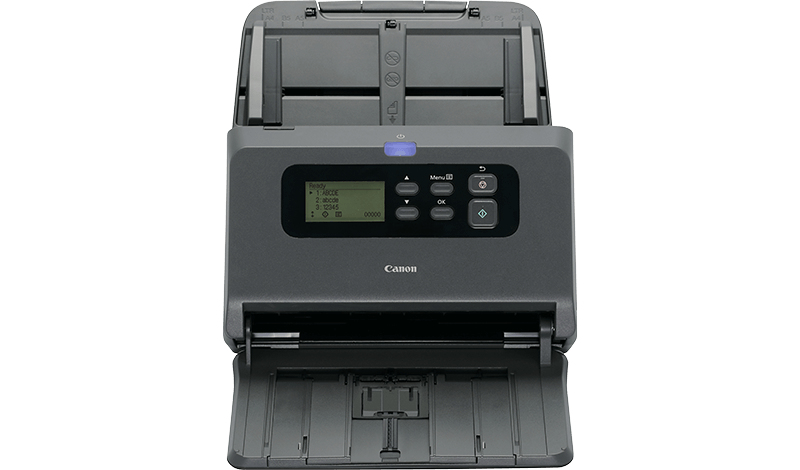

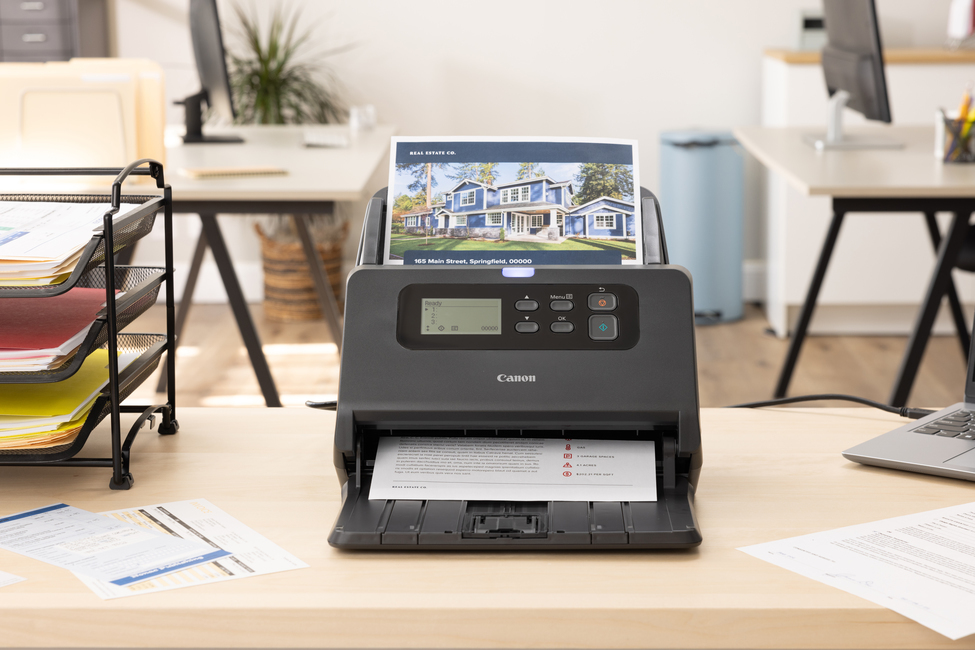

The compact imageFORMULA DR-M260 has a small frame, yet produces a big performance. This dependable scanner is packed with innovative features and delivers outstanding image quality, with capture speeds of up to 60 ppm/120 ipm.
Slender, modern design

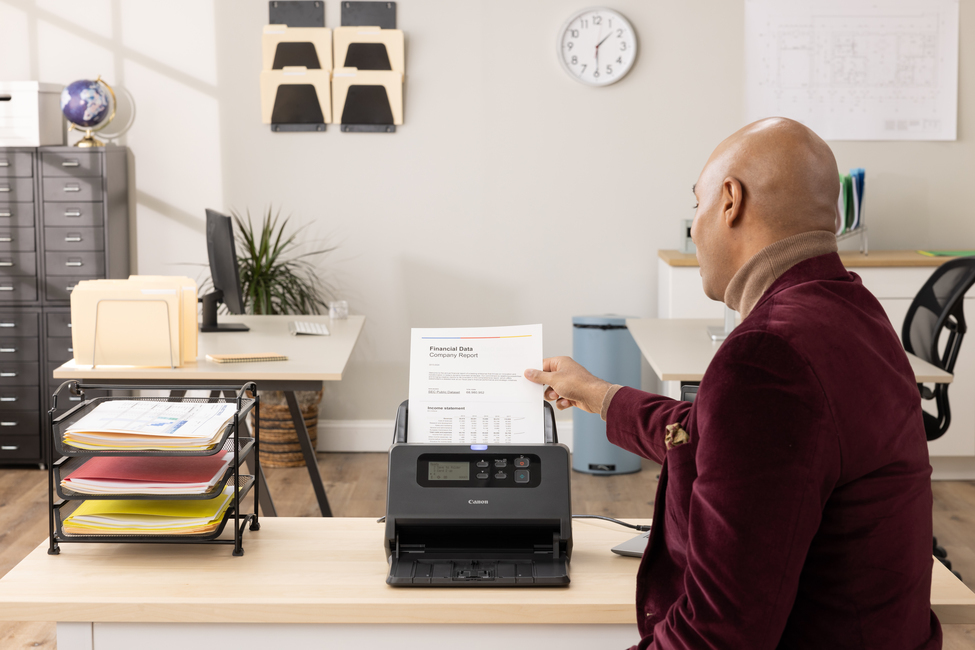

With its contemporary, compact body, the imageFORMULA DR-M260 integrates seamlessly into a wide variety of customer-facing environments.
Fast scanning speeds
The new on-board processing chip takes the strain away from PCs, unlocking scanning speeds of up to 60 ppm in black and white, and 60 ppm in full colour.
Virtuoso versatility

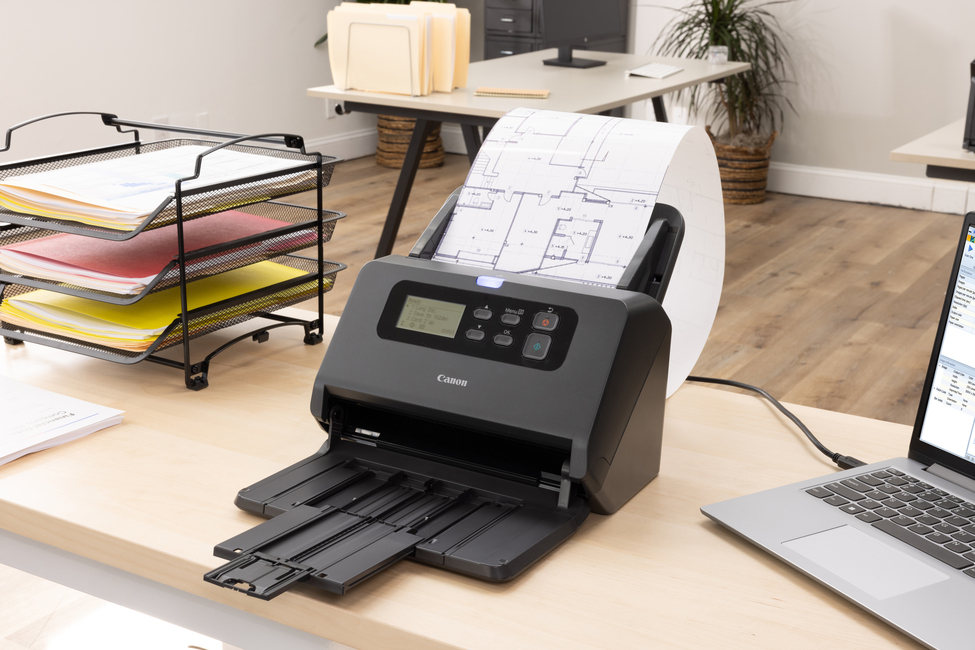

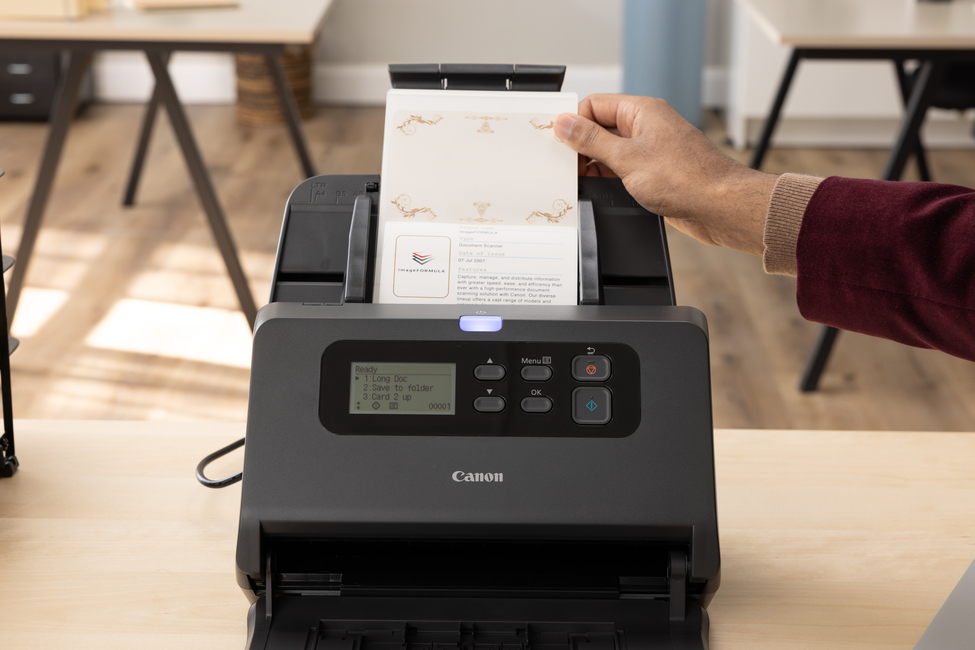

The DR-M260 tackles media from 27 g/m2 up to 413 g/m2, and furthers its flexible credentials by accepting credit cards, passports, and long-form documents.
Scanning
Maximum scan size
216 x 5588 mm
Optical scanning resolution
600 x 600 DPI
Colour scanning
Y
Duplex scanning
Y
Output colour depth
24 bit
Output greyscale depth
8 bit
Greyscale levels
256
ADF scan speed (b/w, A4)
60 ppm
ADF scan speed (colour, A4)
60 ppm
Duplex ADF scan speed (b/w, A4)
120 ipm
Duplex ADF scan speed (colour, A4)
120 ipm
Design
Scanner type
Sheet-fed scanner
Product colour
Black

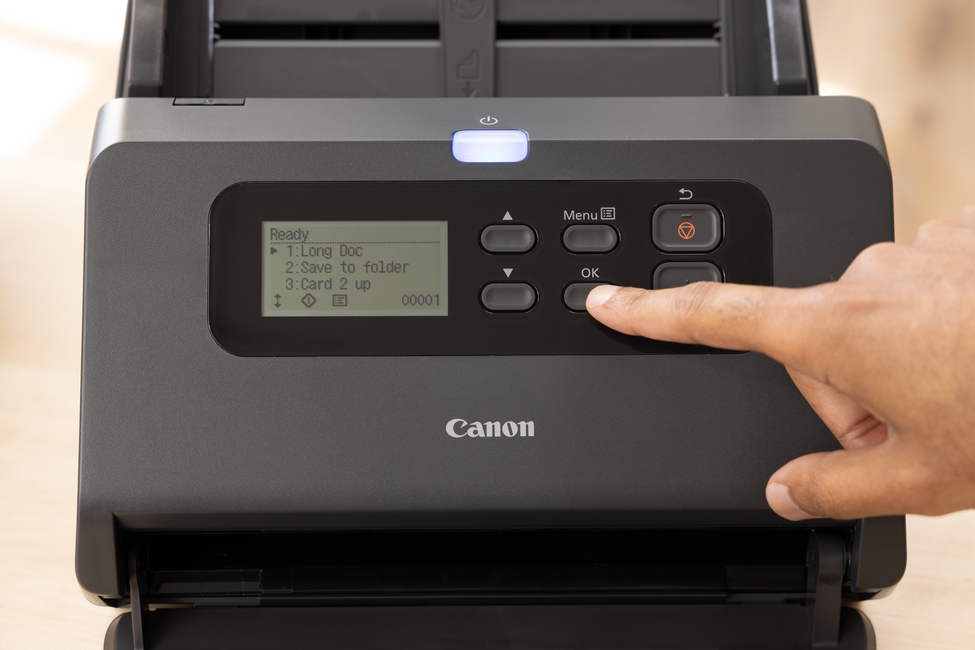

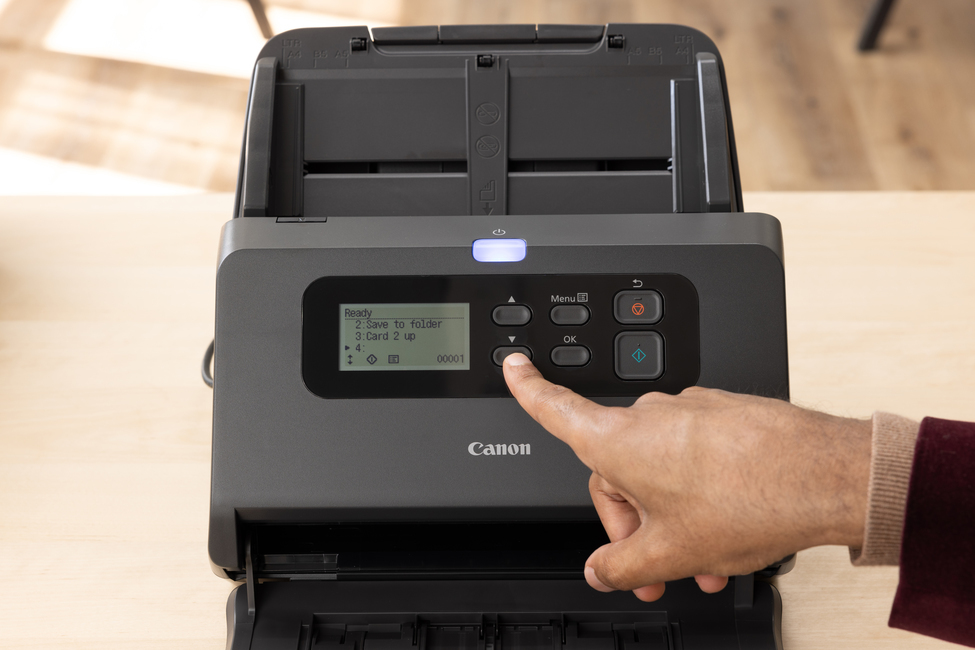

Display
LCD
Built-in display
Y
Performance
Sensor type
CMOS CIS
Light source
RGB LED
Scan file formats
PDF
Daily duty cycle (max)
7500 pages
Scan drivers
ISIS,TWAIN
Input capacity
Standard input capacity
80 sheets
Paper handling
Scanning media types supported
Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size
A4
Media thickness (min)
0.04 mm
Maximum scan width
21.6 cm
Maximum scan length
5.59 m
Ports & interfaces
USB port
Y
USB version
3.2 Gen 2 (3.1 Gen 2)
Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1)
Power
Power supply type
AC
Power consumption (typical)
23 W
Power consumption (standby)
1.4 W
Power consumption (off)
0.1 W
AC input frequency
50 - 60 Hz
Input voltage
100-240 V
Technical details
Harmonized System (HS) code
84716070
System requirements
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016
Weight & dimensions
Width
180 mm
Depth
178 mm
Height
285 mm
Weight
3.6 kg
Packaging content
Cables included
AC, USB
AC adapter included
Y
Other features
Scan media weight
27 - 413 g/m²
