Product Details
Introduction

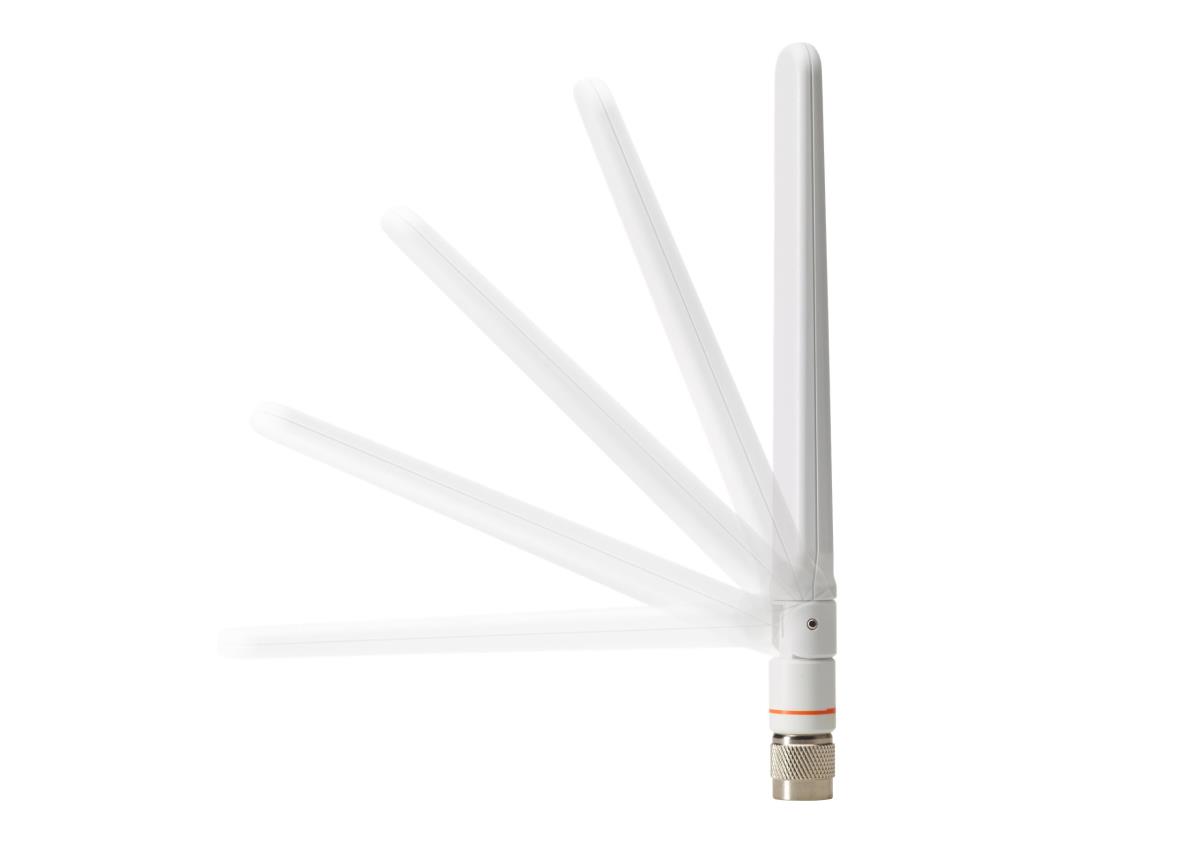

Single white dipole antenna with RP-TNC connector. The antenna provides indoor omnidirectional coverage. It has a 90-degree articulation radius and can be used with the Aironet 1830, 1850, 2800, and 3800 Series and Cisco Catalyst 9115AX, 9120AX, 9130AX Series access points.
Performance
Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
2 dBi
Antenna gain (5 GHz)
4 dBi
Impedance
50 O
Horizontal beam width (2.4 GHz)
63°
Horizontal beam width (5 GHz)
39°
Antenna gain level (max)
4 dBi
Features
Antenna type
Omni-directional antenna
Antenna connector type
RP-TNC
Connector gender
Male
Polarization
Dual polarization
Voltage Standing Wave Ratio (VSWR)
2:1
Purpose
Indoor
Compatible products
Cisco Catalyst 9115AX, 9120AX, 9130AX
Product colour
White
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 85 °C
Packaging content
Quantity per pack
1 pc(s)
Quick installation guide
Y
Manual
Y
Information
| Part Number: | AIR-ANT2524DW-RS= |
