Introduction

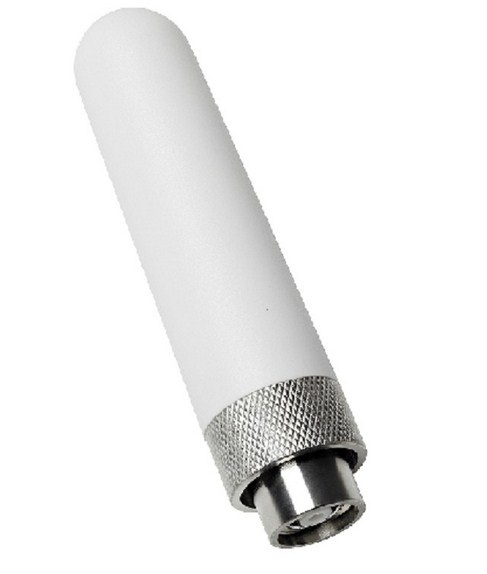

This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.
The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.
Performance
Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
3 dBi
Antenna gain (5 GHz)
5 dBi
Impedance
50 O
Horizontal beam width (2.4 GHz)
35°
Vertical beam width (2.4 GHz)
35°
Horizontal beam width (5 GHz)
35°
Vertical beam width (5 GHz)
35°
Antenna gain level (max)
5 dBi
Features
Antenna type
Omni-directional antenna
Antenna connector type
RP-TNC
Connector gender
Male
Voltage Standing Wave Ratio (VSWR)
2.0:1
Purpose
Indoor
Compatible products
AP1600, AP2600, AP3600, AP3700
Product colour
White
Operational conditions
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Packaging content
Quantity per pack
1 pc(s)
Information
| Part Number: | AIR-ANT2535SDW-RS= |
