Product Details
Introduction

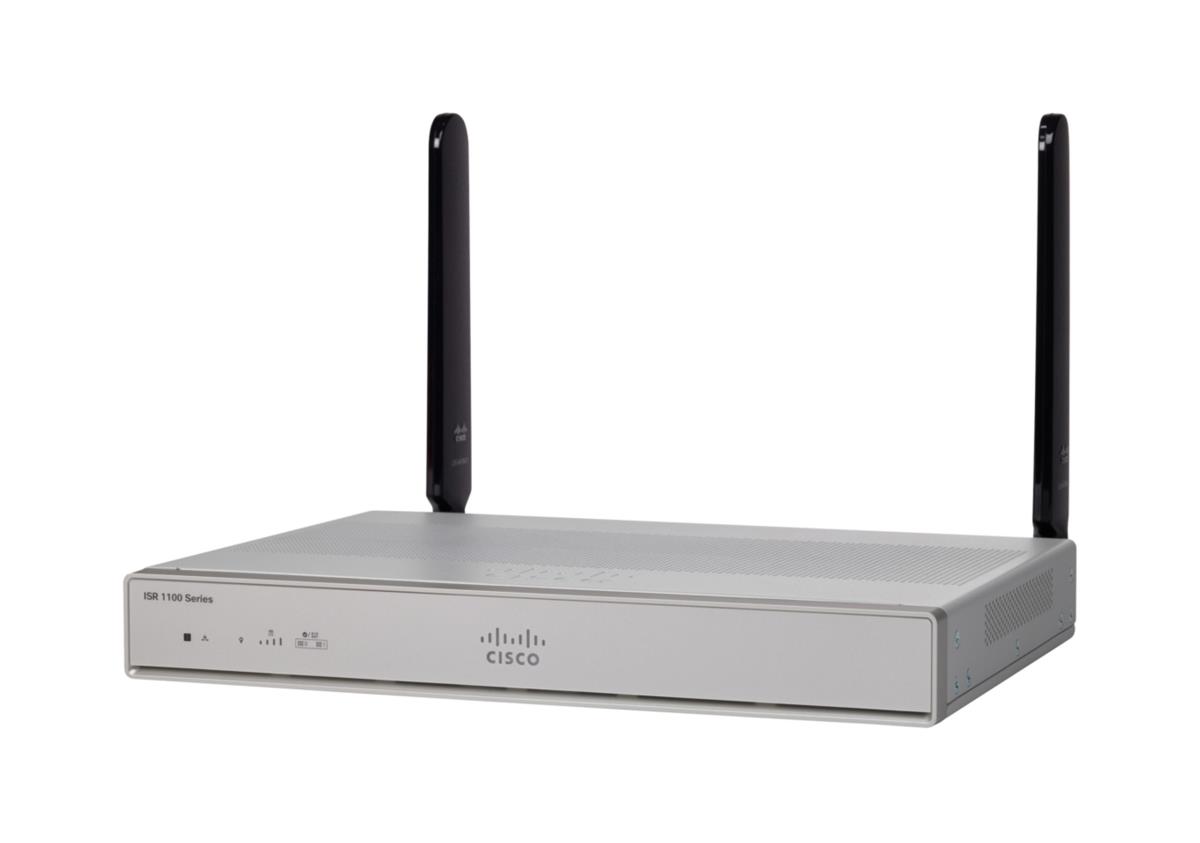

Cisco® 1100 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities.
The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices and in service provider managed environments.
WAN connection
Ethernet WAN
Y
Network
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Y
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Management features
Web-based management
Y
Quality of Service (QoS) support
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
8
Gigabit Ethernet (copper) ports quantity
8
USB version
3.2 Gen 1 (3.1 Gen 1)
Security
Security algorithms
3DES,802.1x RADIUS,AES,DES
Firewall
Y
Features
Flash memory
4096 MB
Internal memory
4096 MB
Design
Product colour
Silver
Antenna
Antenna type
Not supported
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
0 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4570 m
Weight & dimensions
Width
323 mm
Depth
244 mm
Height
44 mm
Weight
2.59 kg
Information
| Part Number: | C1111-8P |
