Introduction
Cisco® 1000 Series Integrated Services Routers (ISRs) with Cisco IOS® XE Software combine Internet access, comprehensive security, and wireless services (5G, LTE Advanced 3.0 wireless WAN and 802.11ax wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with separate data and control plane capabilities.
WAN connection
Ethernet WAN
Y
DSL WAN
Y
SIM card slot
Y
3G/4G USB modem compatibility
Y
Network
Ethernet LAN
Y
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Dynamic DNS (DDNS)
Y
Mobile network
3G
Y
Mobile network generation
4G
4G
Y
3G standards
HSPA+,UMTS
4G standard
LTE-A
Short Message Service (SMS)
Y
DSL features
ADSL2
Y
VDSL2
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
8
USB port
Y
Management features
Web-based management
Y
Quality of Service (QoS) support
Y
Security
Security algorithms
3DES,128-bit AES,256-bit AES
Authentication method
RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512
Access Control List (ACL)
Y
System event log
Y
Protocols
DHCP client
Y
DHCP server
Y
Design
Product type
Tabletop router
Antenna
Antenna type
External
Features
Internal memory
8192 MB
Flash memory
8192 MB
Power
Power source type
AC
Power over Ethernet (PoE)
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4570 m
Weight & dimensions
Width
322 mm
Depth
226 mm
Height
41.9 mm
Information

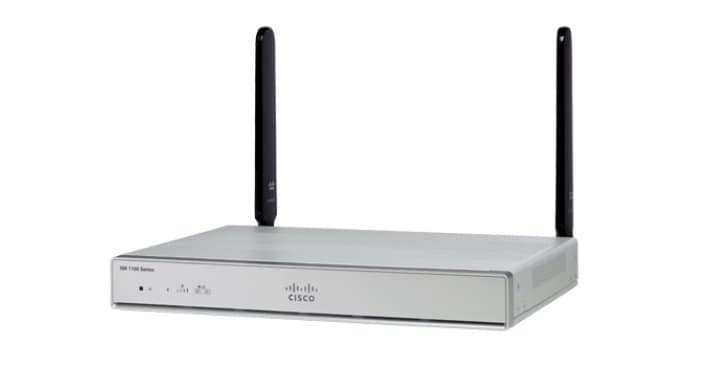

| Part Number: | C1127-8PLTEP |
