Product Details
Introduction

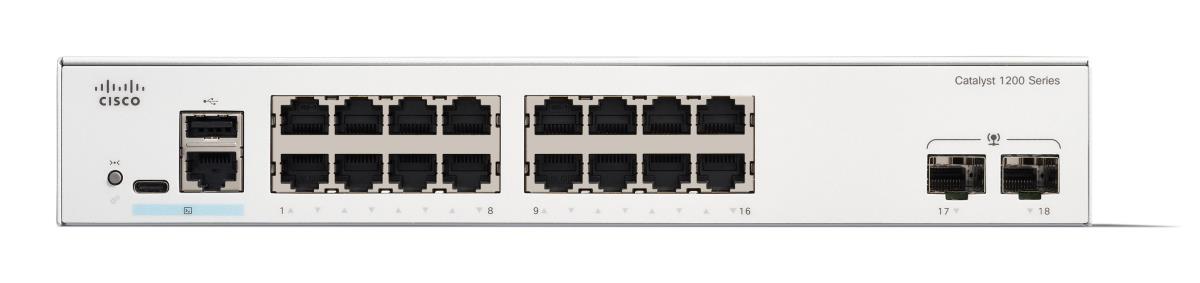

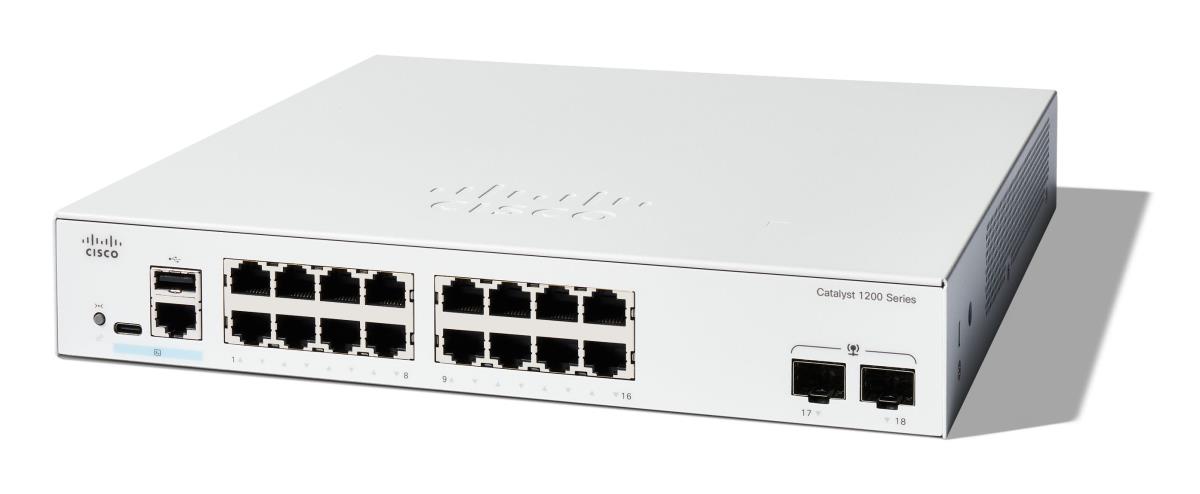

The Cisco Catalyst 1200-16T-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
MIB support
Y
Network
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
1000 Mbit/s
VLAN support
Yes
10G support
No
Data transmission
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Security
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
HTTPS, SSH, SSL/TLS
MAC address filtering
Yes
SSH/SSL support
Yes
Multicast features
Multicast support
Yes
Design
Product colour
White
Housing material
Metal
Reset button
Yes
LED indicators
Yes
Country of origin
China
Performance
Processor frequency
1400 MHz
Internal memory
1024 MB
Flash memory
512 MB
Power
Power source
AC
Power supply included
Yes
Power plug type
Type C
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Other features
Packaging content
Switch, power cable, USB Type C cable and mounting hardware
Weight & dimensions
Width
271.5 mm
Depth
268.2 mm
Height
43.9 mm
Packaging data
Package width
414 mm
Package depth
399 mm
Package height
108 mm
Package weight
3.71 kg
Information
| Part Number: | C1200-16T-2G |
