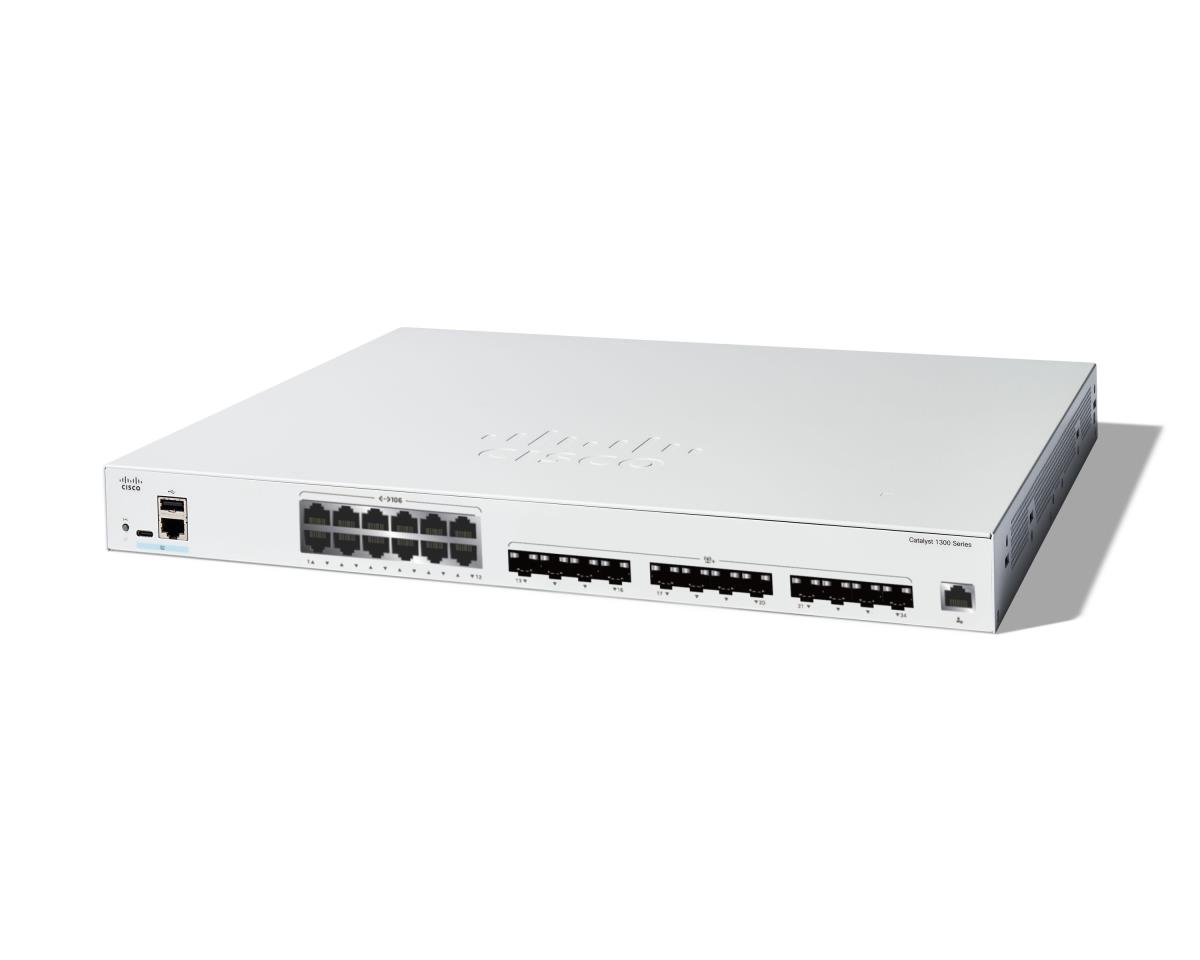

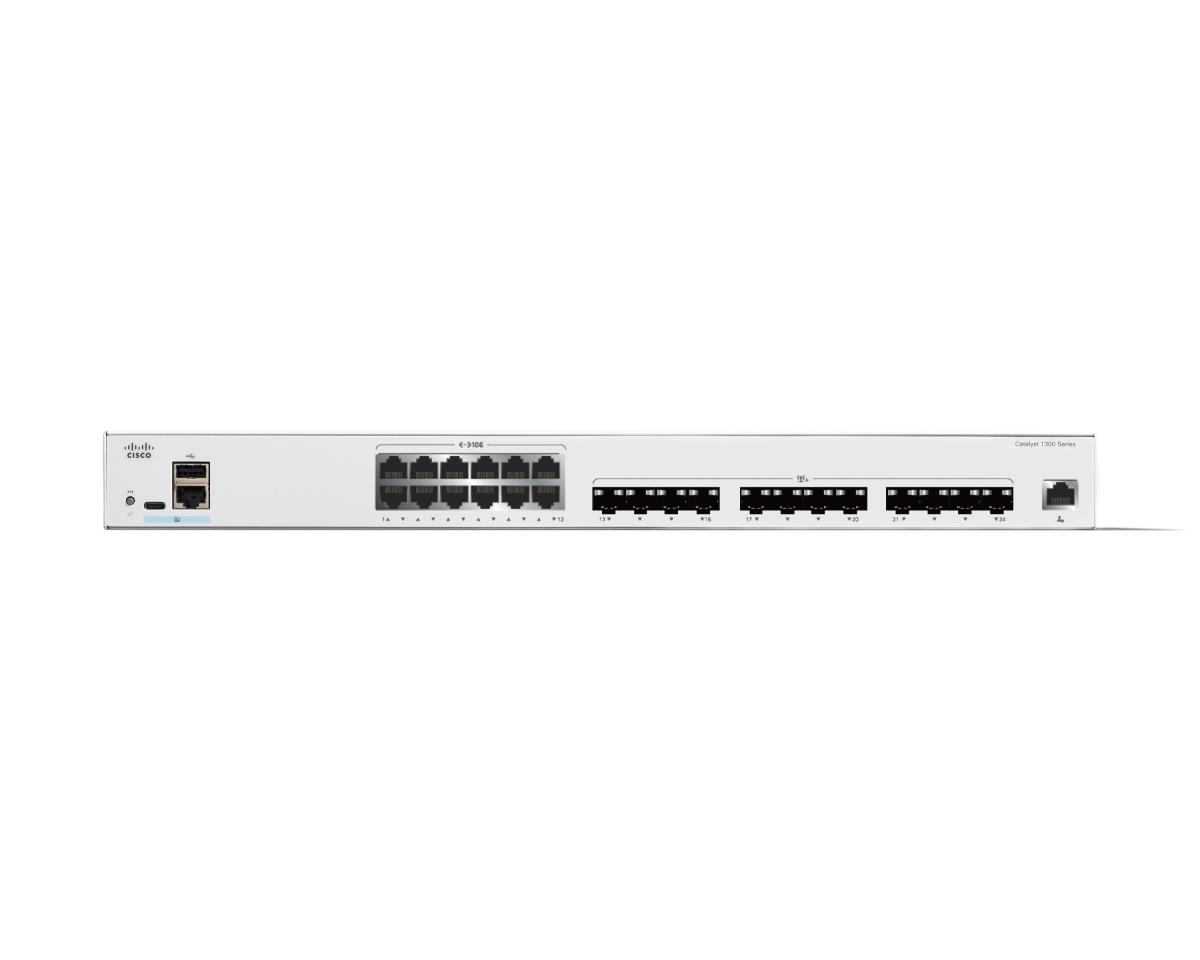

Introduction
The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Configuring Location Settings (CLI)
Yes
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
12
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
SFP+ module slots quantity
12
Console port
RJ-45/USB Type-C
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported
Cat5e
Port mirroring
Yes
Policy-based routing
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
QinQ implementation
Selective QinQ
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN
Data transmission
Switching capacity
480 Gbit/s
MAC address table
16000 entries
Number of queues
8
Static route
Yes
Number of static routes
990
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
8 MB
Security
DHCP features
DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
Access Control List (ACL) rules
1024
IGMP snooping
Yes
IGMP proxy
Yes
Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
SSH/SSL support
Yes
Authentication
MAC-based authentication, Web-based authentication
DoS attack prevention
Yes
Authentication type
RADIUS, TACACS+
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Design
Rack mounting
Yes
Product colour
Grey
Reset button
Yes
Country of origin
China
Certification
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Performance
Built-in processor
Yes
Processor frequency
1.4 MHz
Memory type
DDR4-SDRAM
Internal memory
1000 MB
Flash memory
512 MB
Noise level
39 dB
Plug and Play
Yes
Mean time between failures (MTBF)
427188 h
Power
Power source
AC
AC input voltage
100 - 220 V
AC input frequency
50/60 Hz
Power consumption (typical)
88.2 W
Power plug type
Type C
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
300.76 BTU/h
Weight & dimensions
Width
445 mm
Depth
350 mm
Height
44 mm
Weight
4.2 kg
Packaging data
Package width
430 mm
Package depth
574.7 mm
Package height
105.9 mm
Package weight
5.6 kg
Other features
Packaging content
Switch, power cable, USB Type C cable and mounting hardware
