Product Details
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Configuring Location Settings (CLI)
Yes
MIB support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
28
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Console port
RJ-45/USB Type-C
SFP28 ports quantity
4
Network
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D
10G support
Yes
Port mirroring
Yes
Policy-based routing
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
QinQ implementation
Selective QinQ
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN
Data transmission
Switching capacity
192 Gbit/s
MAC address table
16000 entries
Number of queues
8
Static route
Yes
Number of static routes
990
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
3 MB
Security
DHCP features
DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
Access Control List (ACL) rules
3072
IGMP snooping
Yes
IGMP proxy
Yes
Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
SSH/SSL support
Yes
Authentication
MAC-based authentication, Web-based authentication
DoS attack prevention
Yes
Authentication type
RADIUS, TACACS+
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Protocols
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
Design
Rack mounting
Yes
Product colour
Grey
Reset button
Yes
Performance
Memory type
DDR4-SDRAM
Internal memory
21000 MB
Flash memory
1000 MB
Noise level
49.5 dB
Plug and Play
Yes
Mean time between failures (MTBF)
343272 h
Power
Power source
AC
AC input voltage
100 - 220 V
AC input frequency
50/60 Hz
Power consumption (typical)
103.9 W
Power consumption (max)
870.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE++ (4PPoE)
Power over Ethernet (PoE) ports quantity
24
Total Power over Ethernet (PoE) budget
740 W
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
3104.3 BTU/h
Weight & dimensions
Width
444.3 mm
Depth
270 mm
Height
43.9 mm
Weight
4.23 kg
Certificates
Certification
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Information

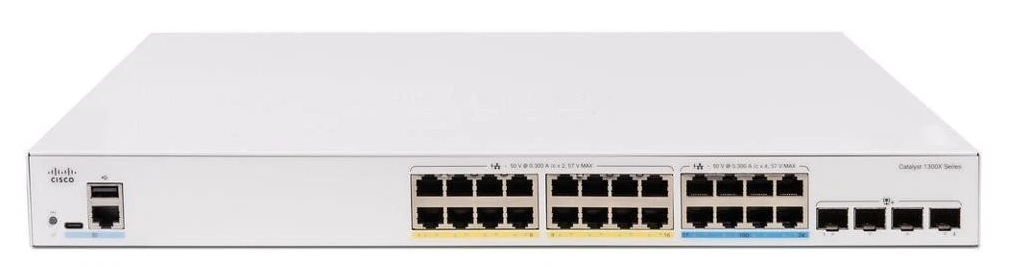

| Part Number: | C1300X-24NGU-4X |
