Product Details
Introduction

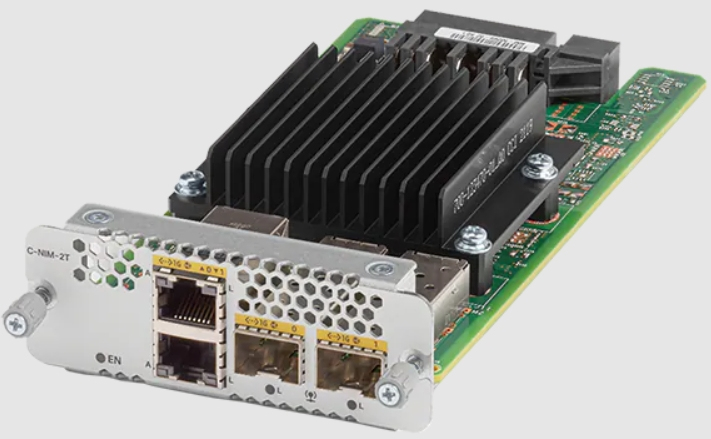

The C-NIM-2T is a dual combo port module with two RJ-45 copper line ports and two SFP fiber ports. The ports on this NIM are configured in two port groups with one RJ45 port and one SFP port in each group. One port from each group can be configured for simultaneous use, providing flexibility in the selection of media for WAN connectivity. The RJ-45 ports support 100BASE-TX and 1000BASE-T copper connections. The SFP ports support 100BASE-FX and 1000BASE-X fiber connections. The module supports 256-bit WAN MACsec. The C-NIM-2T is supported on the Catalyst 8200 Series, 8200L, and all 8300 Series platforms.
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
1000BASE-TX
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Performance
Compatibility
Catalyst 8200 Series, 8200L, and all 8300 Series platforms.
Power
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
89 mm
Depth
184 mm
Height
32 mm
Weight
360 g
Information
| Part Number: | C-NIM-2T= |
