Introduction

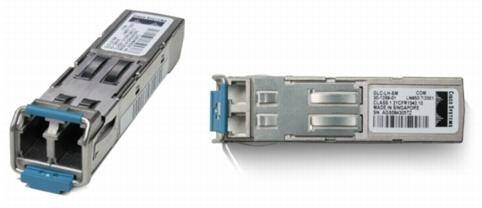

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network (Figure 1). SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers
The 100BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers.
Performance
Maximum data transfer rate
1000 Mbit/s
Fiber optic connector
LC, PC
Maximum transfer distance
10000 m
Maximum transfer distance (Single-mode)
10000 m
Maximum transfer distance (Multi-mode)
550 m
Wavelength
1310 nm
Cabling technology
100BASE-LX/LH
Operational conditions
Operating temperature (T-T)
-40 - 85 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Weight
75 g
Other features
Transmit power range
-3 - -9.5 dBmW
Dimensions (WxDxH)
13.4 x 56.5 x 8.5 mm
Information
| Part Number: | GLC-LX-SM-RGD= |
