Introduction

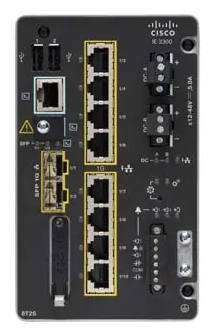

Cisco Catalyst IE3300 Rugged Series Data Sheet
The Cisco Catalyst IE3300 Rugged Series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.
Product overview
Cisco Catalyst IE3300 Rugged Series switches deliver high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3300 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Cisco Industrial Network Director, and can be easily set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.
The IE3300 series (with expansion module) supports power budget of up to 360W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
Ports & interfaces
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2
Console port
RJ-45
USB 2.0 ports quantity
2
Compatible memory cards
SD
Power connector
DC-in jack
Performance
Harmonized System (HS) code
85176990
Internal memory
2000 MB
Flash memory
1500 MB
Mean time between failures (MTBF)
633420 h
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Y
ARP inspection
Y
System event log
Y
MIB support
802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB
Network
Networking standards
IEEE 1588,IEEE 802.11ac,IEEE 802.11n,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x
10G support
N
Link aggregation
Y
Broadcast storm control
Y
Spanning tree protocol
Y
Number of VLANs
256
Data transmission
MAC address table
8000 entries
Number of queues
8
Jumbo frames support
Y
Jumbo frames
8996
Security
DHCP features
DHCP server
Access Control List (ACL)
Y
Access Control List (ACL) ingress
3000
IGMP snooping
Y
IGMP entries
1000
Security algorithms
802.1x RADIUS,SNMPv3,SSH
MAC address filtering
Y
BPDU filtering/protection
Y
Authentication
Guest VLAN, MAC-based authentication
Authentication type
IEEE 802.1x,RADIUS,TACACS+
Multicast features
Protocols
Management protocols
IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Switching protocols
IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Design
Rack mounting
Y
Product colour
Black
LED indicators
Y
International Protection (IP) code
IP20
DIN rail mounting
Y
Certification
UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
Power
Power supply included
Y
Redundant power supply (RPS) support
Y
DC input voltage
9.6 - 60 V
Input current
3.8 A
Power consumption (typical)
23 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 4572 m
Weight & dimensions
Width
91 mm
Depth
135 mm
Height
152 mm
Weight
1.7 kg
