Product Details
Introduction

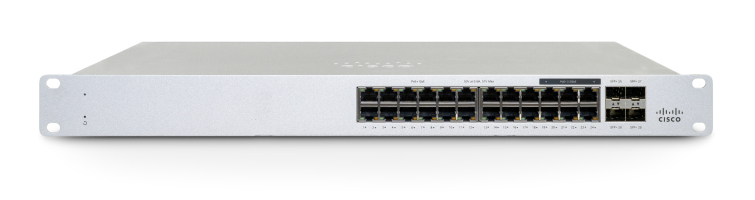

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Number of management ports
1 pc(s)
Network
Networking standards
IEEE 802.1Q, IEEE 802.3bt
10G support
Yes
Port mirroring
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Virtual LAN features
Voice VLAN
Data transmission
Switching capacity
56 Gbit/s
Security
DHCP features
DHCP snooping
IGMP snooping
Yes
Security algorithms
SNMP
Authentication
MAC-based authentication
Authentication type
IEEE 802.1x, RADIUS
Multicast features
Multicast support
Yes
Multicast features
Multicast traffic suppression
Protocols
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)
Design
Rack mounting
Yes
Form factor
1U
Product colour
White
LED indicators
Yes
Performance
Firmware upgradeable
Yes
Mean time between failures (MTBF)
768152 h
Power
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
8 A
Power consumption (max)
406 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
440 mm
Depth
250 mm
Height
34 mm
Weight
5.5 kg
Information
| Part Number: | MS130-24P-HW |
