Product Details
Introduction
Cisco offers a comprehensive range of pluggable optical modules for the Cisco ONS family of multiservice platforms. The wide variety of modules gives you flexible and cost-effective options for all types of client interfaces. Cisco offers a range of GBICs for Gigabit Ethernet use, a wide variety of SFP modules, XFP modules and has recently introduced SFP+, CXP and CFP pluggable modules. These small, modular optical interface transceivers offer a convenient and cost-effective solution for an array of applications in the data center, campus, metropolitan-area access and ring network, storage area network, and long-haul network.
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Single-mode fiber (SMF) supported
Y
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
LR
Maximum transfer distance
2000 m
Wavelength
1310 nm
Cabling technology
40GBASE-LR4
Duplex system
Full
Auto MDI/MDI-X
Y
Features
Hot-Plug support
Y
Certification
MSA
Operational conditions
Operating temperature (T-T)
-40 - 85 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Packaging data
Number of products included
1 pc(s)
Information

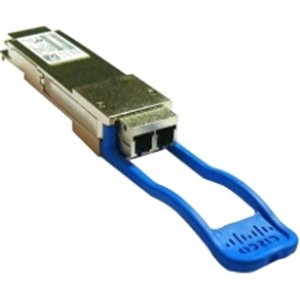

| Part Number: | WSP-Q40GLR4L= |
