Introduction

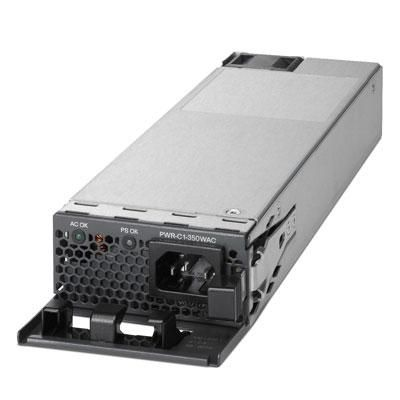

PWR-C1-350WAC-P
350 W AC Platinum certified power supply module
Power Supply Modules Overview
The switch operates with either one or two active power supply modules. A switch that is part of a StackPower stack operates with power that is supplied by other stack switches.
You can use two AC modules or one module and blank cover. All power supply modules have internal fans. All switches ship with a blank cover in the second power supply slot.
Features
Harmonized System (HS) code
85177900
Product type
Power supply
Product colour
Black
Material
Metal
Heat dissipation
1194 BTU/h
Power
Total power
350 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Maximum current
4 A
DC output voltage
-56 V
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
82.5 mm
Depth
309.9 mm
Height
40.1 mm
Weight
1.2 kg
Information
| Part Number: | PWR-C1-350WAC-P= |
