Product Details
Introduction
BTU
Features
Harmonized System (HS) code
85177900
Product type
Power supply
Product colour
Black, Grey
Internal
Y
LED indicators
Y
Heat dissipation
426.5 BTU/h
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC
Certification
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386, EN 61000-3-2, EN 61000-3-3
Performance
Compatibility
Cisco Catalyst C9200, C9200L
Technical details
Compliance certificates
CE
Sustainability compliance
Y
Sustainability certificates
CE
Power
Total power
125 W
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
Maximum current
1.6 A
DC output voltage
12 V
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
101.6 mm
Depth
193 mm
Height
40.1 mm
Weight
680 g
Information

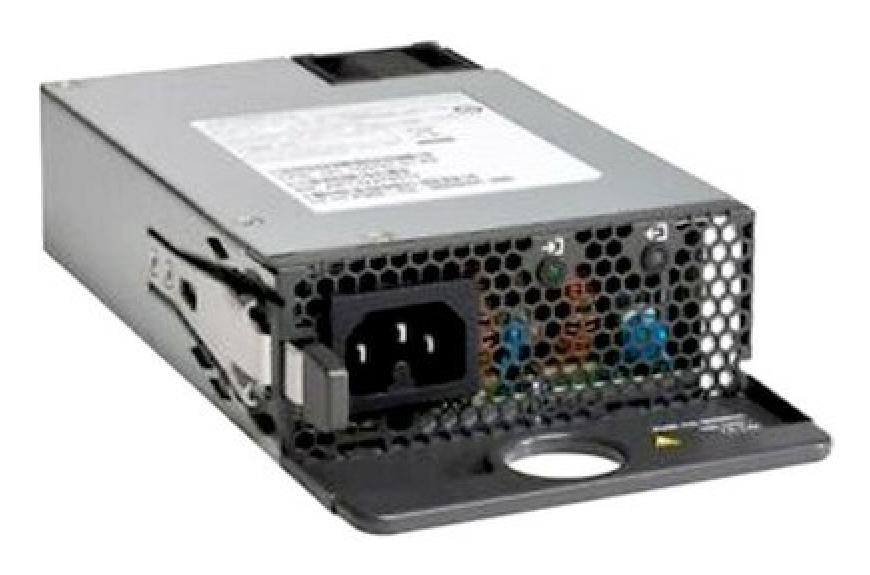

| Part Number: | PWR-C5-125WAC= |
