Product Details
Introduction

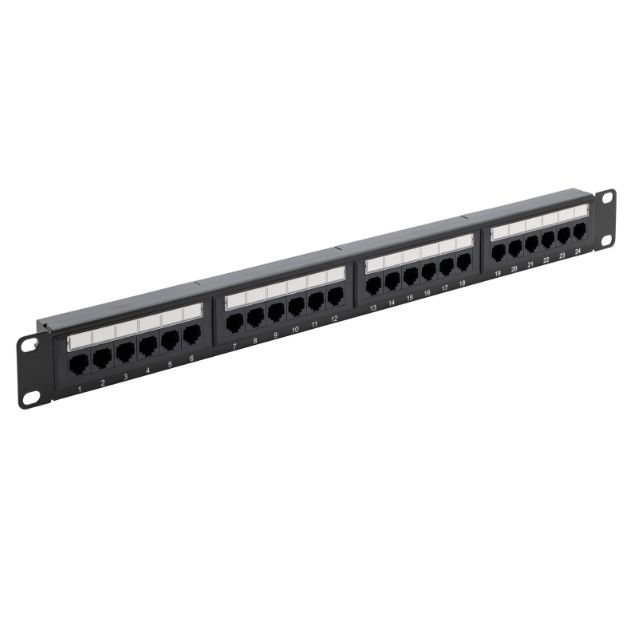

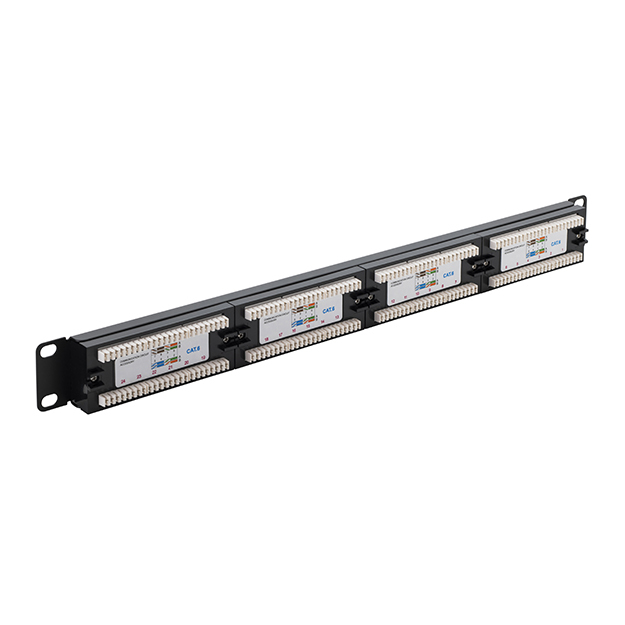

Our CAT6 patch panel is designed to manage and organise your network connections, featuring 24 ports on the front for easy access and the corresponding termination points on the back. It also features removable cards on the front of the panel for personalisation which allows you to connect cables from your PCs, printers and router without error. These are commonly used in data centres and telecommunications rooms to simplify network management.
Network
Ethernet interface type
Fast Ethernet
Maximum data transfer rate
1000 Mbit/s
Ports quantity
24
Connector(s)
RJ-45
Connector contacts plating
Gold
Cable types supported
Cat5, Cat5e, Cat6
Single-mode fiber (SMF) supported
No
Multi-mode fiber (MMF) supported
No
AWG wire size
22/26
Design
Product colour
Black
Material
ABS synthetics
Mounting
Rack mounting
Rack capacity
1U
Cable connection
RJ45 Male
Cable management
Yes
Certificates
Compliance certificates
RoHS
Certification
REACH
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Width
480 mm
Height
44 mm
Depth
33 mm
Weight
700 g
Packaging content
Cable tie(s) included
Yes
Number of cable ties
4
Packaging data
Package width
510 mm
Package depth
92 mm
Package height
60 mm
Package weight
82.5 g
Package type
Box
Logistics data
Country of origin
China
Information
| Part Number: | 90-0030 |
