Introduction
The HD-RXU-4KZ-101-2G-B is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM Essentials HD-TXU-4KZ Series transmitter for the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable (Crestron DM-CBL-8G or DM-CBL-ULTRA sold separately) must be used to connect the HD-RXU-4KZ-101-2G-B to the DM Essentials transmitter.
The HD-RXU-4KZ-101-2G is available in black (model HD-RXU-4KZ-101-2G-B).
Interoperability with a DM Essentials HD-TXU-4KZ Series Transmitter
For interoperability between the HD-RXU-4KZ-101-2G-B and an HD-TXU-4KZ Series transmitter, the DM Essentials input port of the HD-RXU-4KZ-101-2G-B must be connected to the DM Essentials output port of the HD-TXU-4KZ Series transmitter.
NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-2G is paired with a DM Essentials transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Essentials HD-PS Series switcher.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.

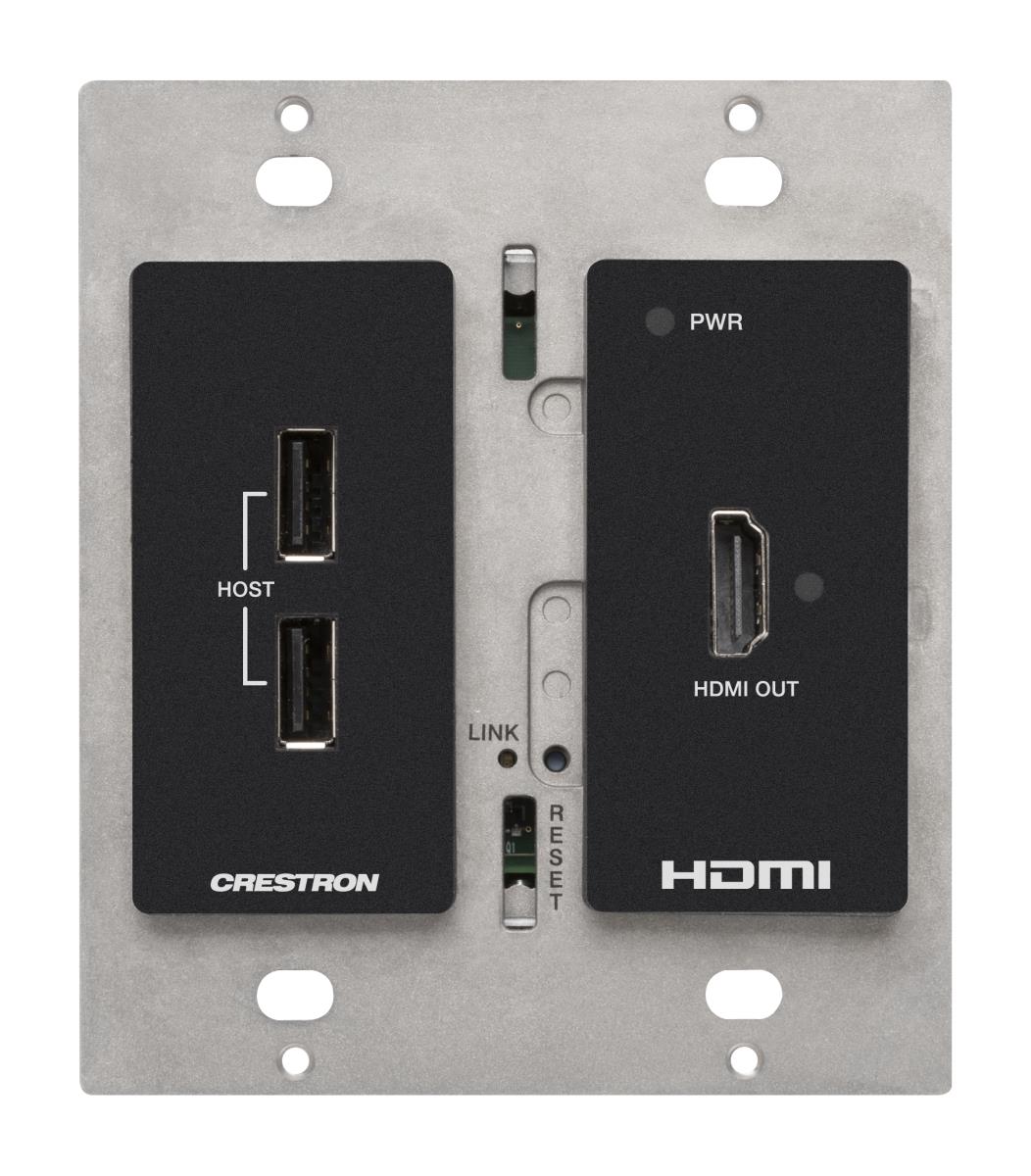

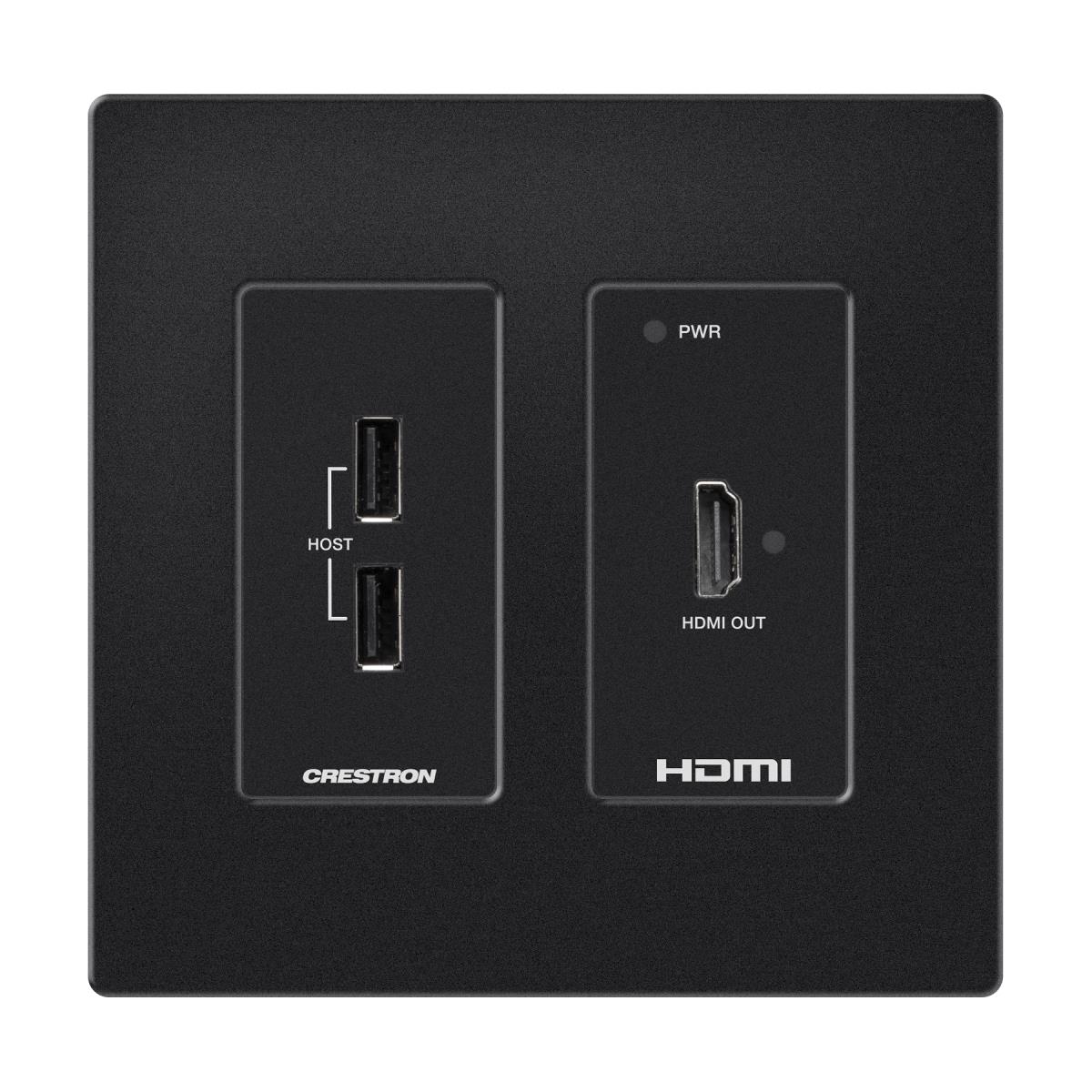

Two-Gang Wall Plate Design
The HD-RXU-4KZ-101-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-RXU-4KZ-101-2G can receive power from the remote DM Essentials transmitter (surface mountable only).
Features
Ports & interfaces
Power
Operational conditions
Weight & dimensions
Packaging content
Technical details
Information
| Part Number: | HD-RXU-4KZ-101-2G-B |
