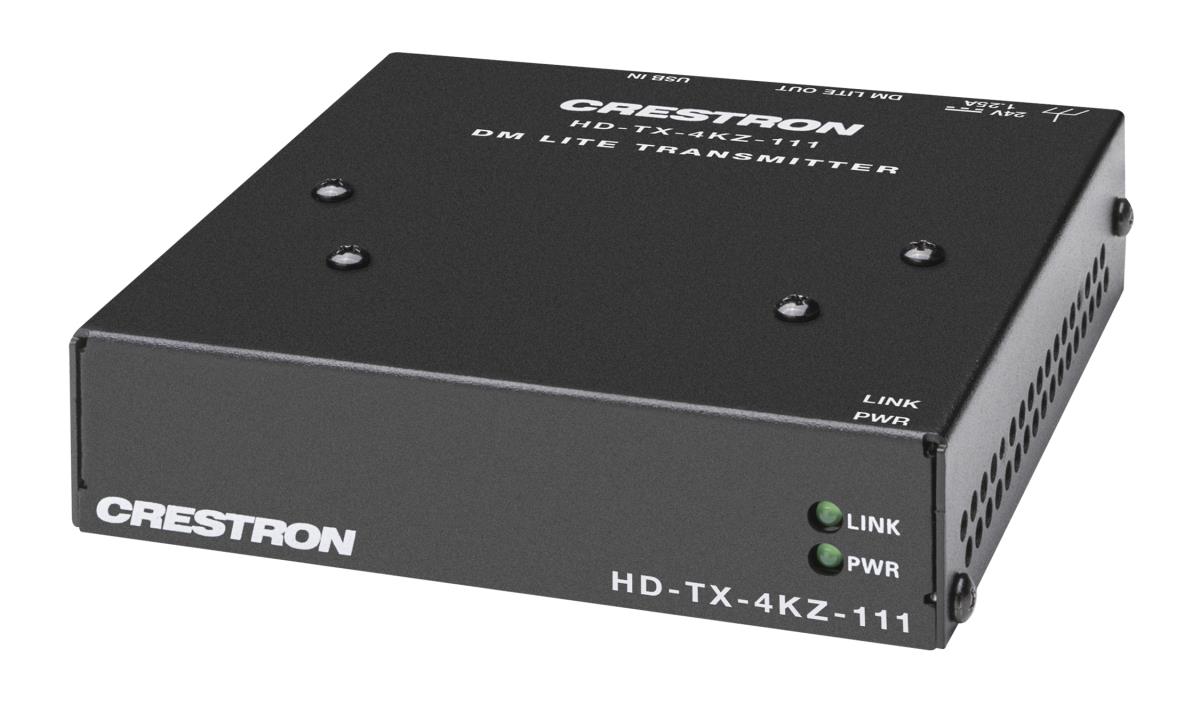

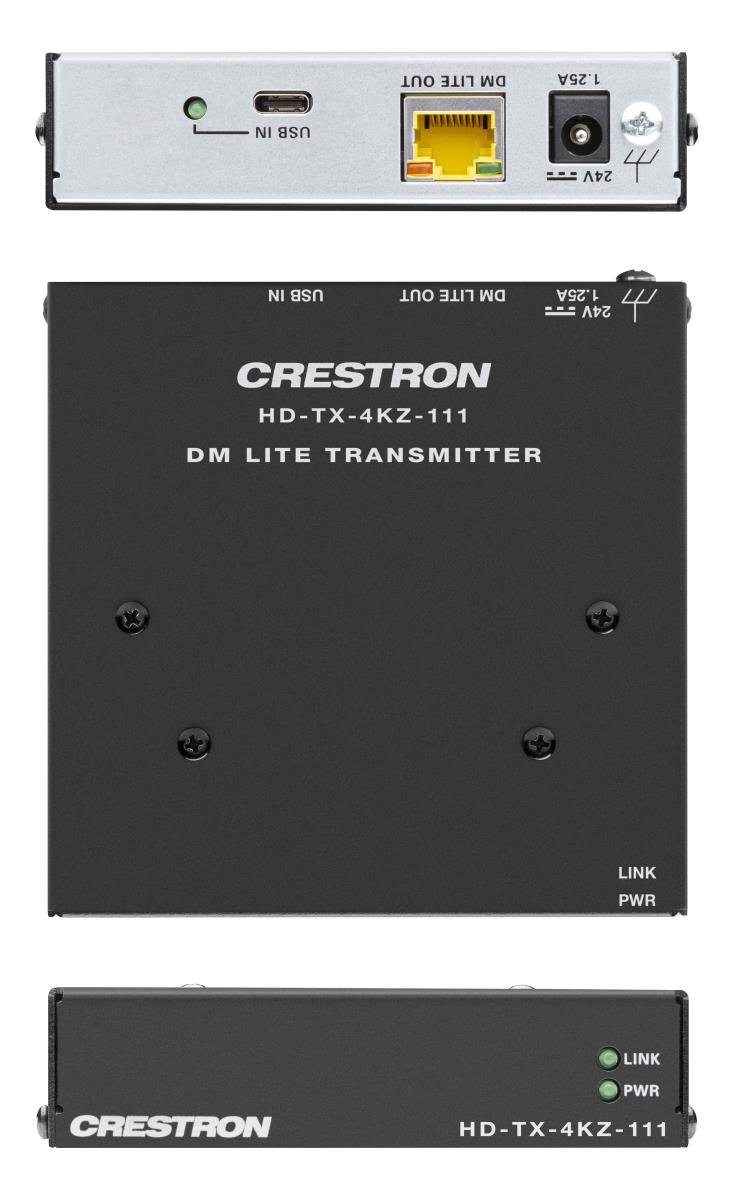

CRESTRON DM Lite 4K Transmitter - USB-C DisplayPort - Signal Extension over CATX Cable

CRESTRON DM Lite 4K Transmitter - USB-C DisplayPort - Signal Extension over CATX Cable

£265.97 (incl. VAT)

Qty:

Add to basket

Part Number:	HD-TX-4KZ-111
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

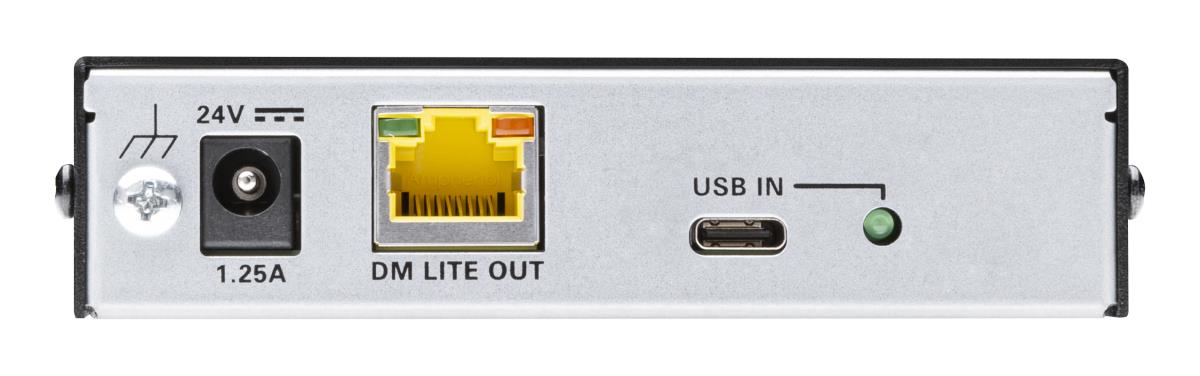

The HD-TX-4KZ-111 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD-TX-4KZ-111 includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111 to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

Interoperability with a DM Lite Receiver or DMPS Lite Switcher

The DM Lite output port of the HD-TX-4KZ-111 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101, and HD-RXCA-4KZ-101. Supported DMPS Lite switchers are the HD-PS621, HD-PS622, HD-PS401, HD-PS402, and HD-RX-4K-210-C-E(-POE).

Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.

The HD-TX-4KZ-111 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111 is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-TX-4KZ-111 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

Compact, Surface-Mountable Design

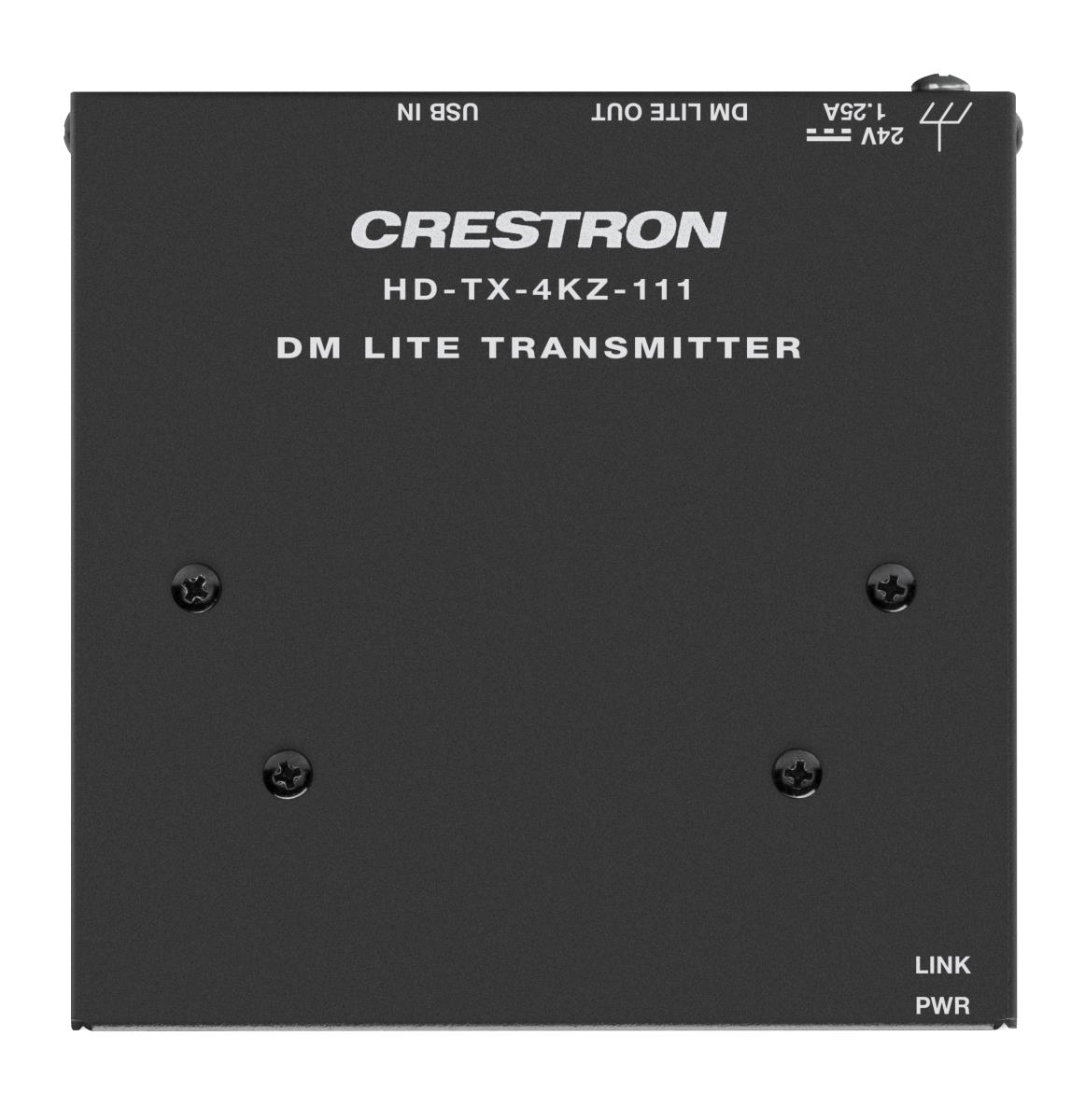

Compact in design, the HD-TX-4KZ-111 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TX-4KZ-111 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.

Features

Type AV receiver

Maximum resolution 4096 x 2160 pixels

Cable types supported Cat5e

Maximum transfer distance 70 m

High Dynamic Range (HDR) supported Yes

High Dynamic Range (HDR) technology Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus)

Maximum refresh rate 60 Hz

IR pass-through Yes

HDCP pass-through Yes

RS-232 pass-through Yes

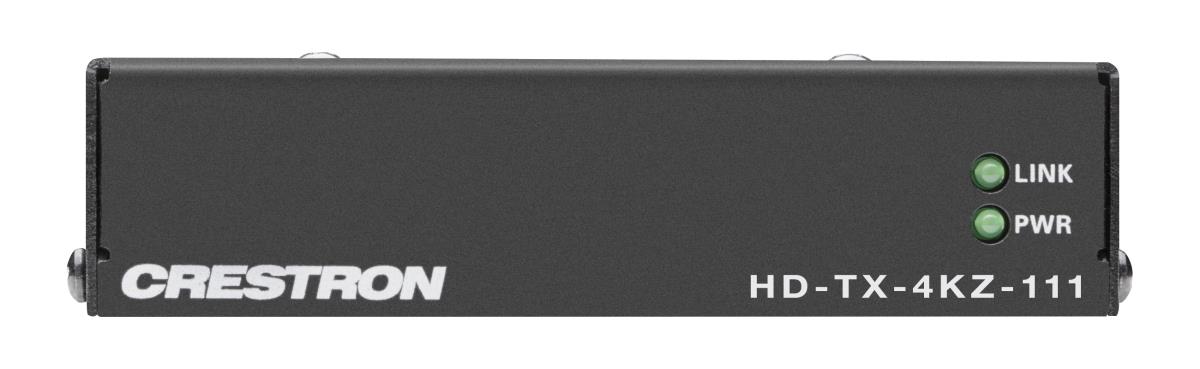

LED indicators Activity, Link, Power

Supported graphics resolutions 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160

Audio formats supported DTS, LPCM

HDCP Yes

Material Metal, Polycarbonate (PC)

Colour depth 12 bit

Rack mounting Yes

Frame rate 60 fps

HDCP version 2.3

Product colour White

Ports & interfaces

Connectivity technology Wired

RJ-45 input ports 1

Number of HDMI outputs 1

Power

Power source type AC

AC input voltage 100 - 240 V

Current 2.5 A

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 20 - 90%

Weight & dimensions

Width 106 mm

Depth 27 mm

Height 105 mm

Weight 339 g

Packaging content

Cables included UTP

IR extender included Yes

IR emitter included Yes

Mounting brackets included Yes

Technical details

Compliance certificates CE, Federal Communications Commission (FCC)
