Product Details
Introduction
The HD-TXU-4KZ-111-2G is a DM® Essentials 4K60 4:4:4 transmitter designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver. A USB-C® input with DisplayPort™ Alt Mode capability enables signal extension of a DisplayPort AV signal along with USB 2.0 data. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-TXU-4KZ-111-2G to the DM Essentials receiver.
The HD-TXU-4KZ-111-2G is available in two models: HD-TXU-4KZ-111-2G-B (black) and HD-TXU-4KZ-111-2G-W (white).
Interoperability with a DM Essentials HD-RXU-4KZ Series Receiver
For interoperability between the HD-TXU-4KZ-111-2G and an HD-RXU-4KZ Series receiver, the DM Essentials output port of the HD-TXU-4KZ-111-2G must be connected to the DM Essentials input port of the HD-RXU-4KZ Series receiver.
NOTE: USB 2.0 data extension is not supported if the HD-TXU-4KZ-111-2G is paired with a DM Essentials receiver other than an HD-RXU-4KZ Series receiver or paired with a DMPS Essentials switcher (HD-PS Series or HD-RX-4K-210-C-E[-POE]).
4K60 4:4:4 and HDR Support
The HD-TXU-4KZ-111-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-TXU-4KZ-111-2G, enabling connection to a wide variety of supported USB 2.0 peripheral devices.

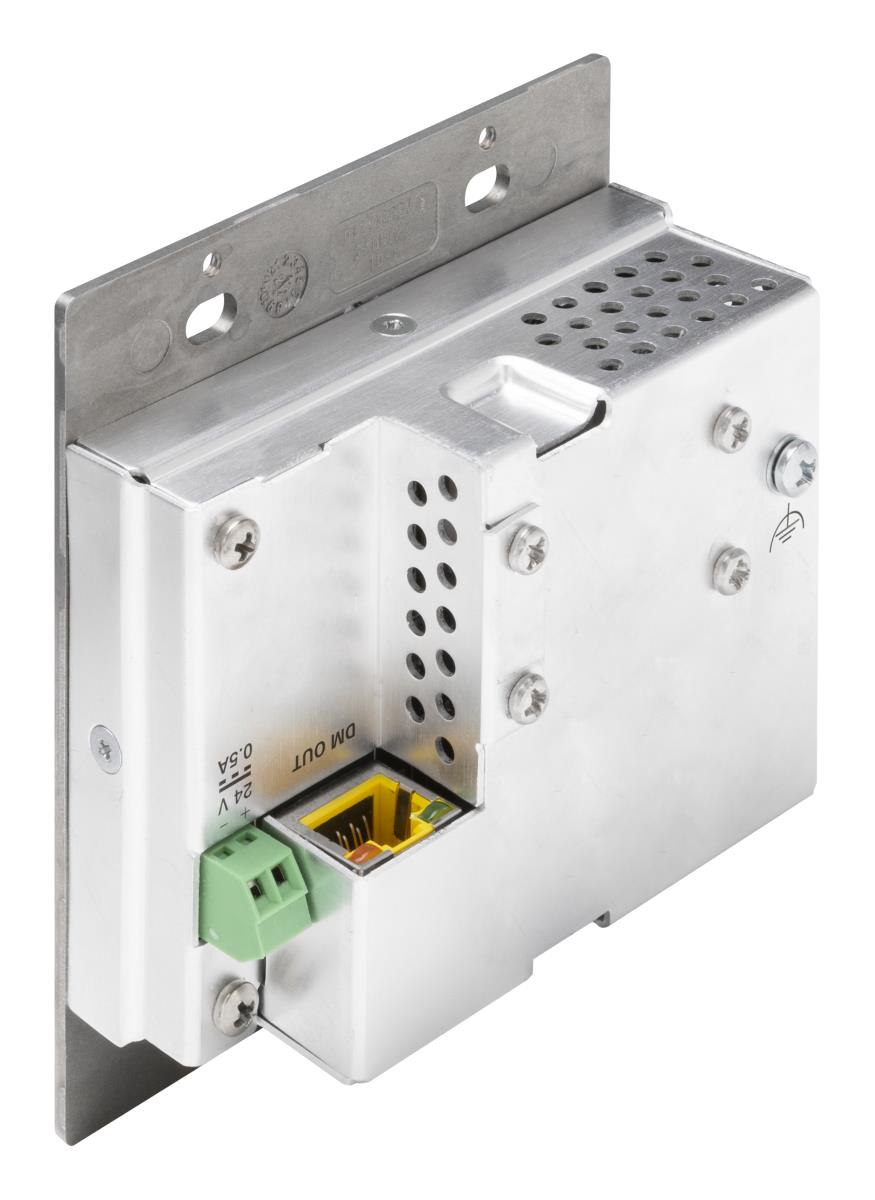

Two-Gang Wall Plate Design
The HD-TXU-4KZ-111-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD-TXU-4KZ-111-2G can receive power from the remote DM Essentials receiver (surface mountable only).
Features
Ports & interfaces
Power
Operational conditions
Weight & dimensions
Packaging content
Technical details
Information
| Part Number: | HD-TXU-4KZ-111-2G-W |
