Introduction
D-Link's new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link's new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

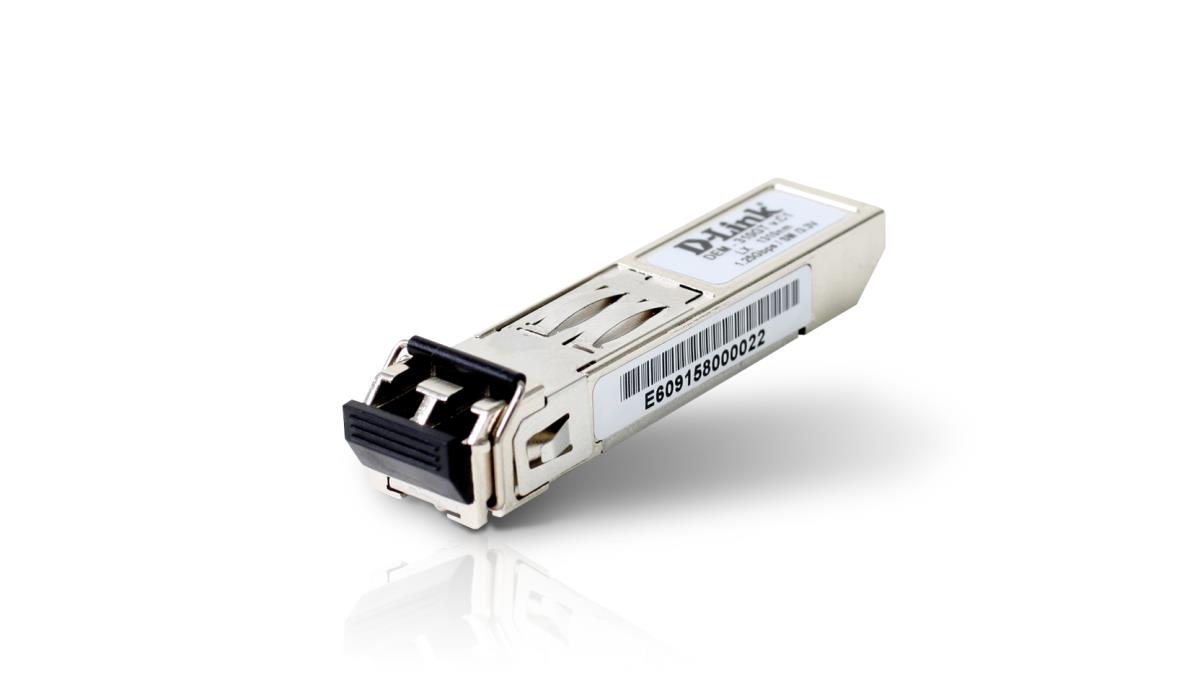

The DEM-310GT is a high performance 1310nm multimode/Singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on multimode/Singlemode fiber for distances of up to 550m/550m/10km on 62.5µm/50µm/9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 3-year product warranty and free technical support.
Features
Product colour
Stainless steel
Internal
Y
Network
Data transfer rate
1 Gbit/s
Data link protocols
Gigabit Ethernet
Cabling technology
1000Base-LX
Compliance industry standards
802.3z
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Weight & dimensions
Dimensions (WxDxH)
29.8 x 11.8 x 56.3 mm
Ports & interfaces
I/O ports
mini-GBIC
Technical details
Technical features
Optical Receiver Sensitivity -20dBm
Package depth
131 mm
Package width
74 mm
Package height
49 mm
Package weight
64 g
Shipping (inner) case length
36 cm
Shipping (inner) case width
26 cm
Shipping (inner) case height
31 cm
Shipping (inner) case net weight
3.2 kg
Products per shipping (inner) case
50 pc(s)
Pallet gross weight (air)
246.8 kg
Master (outer) cases per pallet (air)
54 pc(s)
Products per pallet (air)
2700 pc(s)
Pallet gross length
102 cm
Pallet gross width
122 cm
Pallet height (air)
199 cm
Pallet gross weight (sea)
246.8 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (sea)
2700 pc(s)
Pallet height (sea)
199 cm
Shipping (inner) case gross weight
4.2 kg
Information
| Part Number: | DEM-310GT |
