Introduction
- Plug and Play operation
- 8 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link GreenT technology, saves energy and increases the product's lifespan
D-Link's DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.
Robust design
The DES-108 is designed with durability and performance in mind. The sturdy metal housing will protect it against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.
QoS (Quality of Service)
Despite being an unmanaged, Plug and Play switch, the DES-108 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.
Power-saving technology
The DES-108 is part of D-Link GreenT, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
Management features
Switch layer
L2
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Quality of Service (QoS) support
Y
Network
10G support
Yes
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Networking standards
IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support
N
Copper ethernet cabling technology
100BASE-TX,10BASE-T
Full duplex
Y
Flow control support
Y
Auto MDI/MDI-X
Y
Data transmission
Jumbo frames
1536
Switching capacity
16 Gbit/s
MAC address table
1000 entries
Store-and-forward
Yes
Number of queues
2
Jumbo frames support
Yes
Packet buffer memory
0.768 MB
Supported data transfer rates
10/100 Mbps
Switching capacity
1.6 Gbit/s
MAC address table
1000 entries
Store-and-forward
Y
Maximum data transfer rate
0.1 Gbit/s
Jumbo frames support
Y
Packet buffer memory
0.768 MB
Design
Form factor
Desktop
Rack mounting
No
Product colour
Black
Housing material
Metal

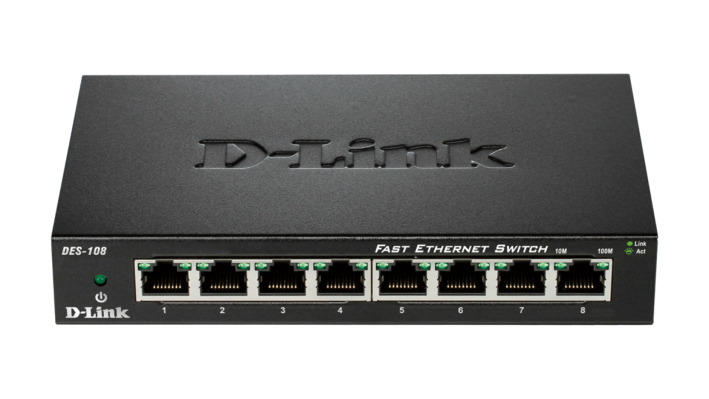

LED indicators
Link, Power
Rack mounting
N
Product colour
Black
Housing material
Metal
LED indicators
Link, Power
Certification
RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Power
Power source
AC
Power consumption (max)
4.5 W
Input current
1 A
Input voltage
5 V
Power consumption (typical)
1 W
Input current
1 A
Input voltage
5 V
Power consumption (typical)
4.5 W
Operational conditions
Heat dissipation
17.47 BTU/h
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

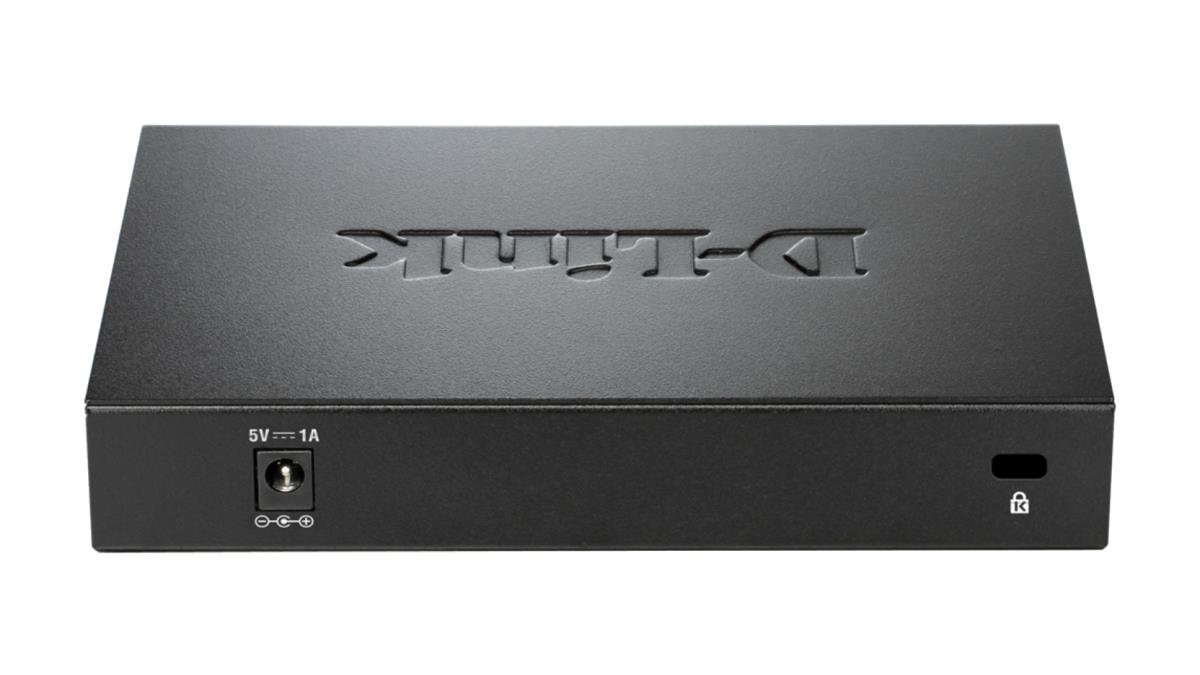

Power connector
DC-in jack
Basic switching RJ-45 Ethernet ports quantity
8
Power connector
DC-in jack
Security
MAC address filtering
Yes
MAC address filtering
Y
Performance
Mean time between failures (MTBF)
511323 h
Mean time between failures (MTBF)
511323 h
Weight & dimensions
Width
162 mm
Depth
102 mm
Height
28 mm
Weight
412 g
Certificates
Certification
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
Technical details
Shipping (inner) case height
44.3 cm
Shipping (inner) case width
26 cm
Shipping (inner) case length
37 cm
Shipping (inner) case net weight
6.1 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
357.5 kg
Master (outer) cases per pallet (air)
48 pc(s)
Products per pallet (air)
480 pc(s)
Pallet gross length
102 cm
Pallet gross width
122 cm
Pallet height (air)
2.07 m
Pallet gross weight (sea)
357.5 kg
Master (outer) cases per pallet (sea)
48 pc(s)
Products per pallet (sea)
480 pc(s)
Pallet height (sea)
2.07 m
Shipping (inner) case gross weight
7 kg
Packaging data
Package width
208 mm
Package depth
250 mm
Package height
68 mm
Package weight
610 g
Other features
Data transfer rate
200 Mbit/s
Dimensions (WxDxH)
162 x 102 x 28 mm
