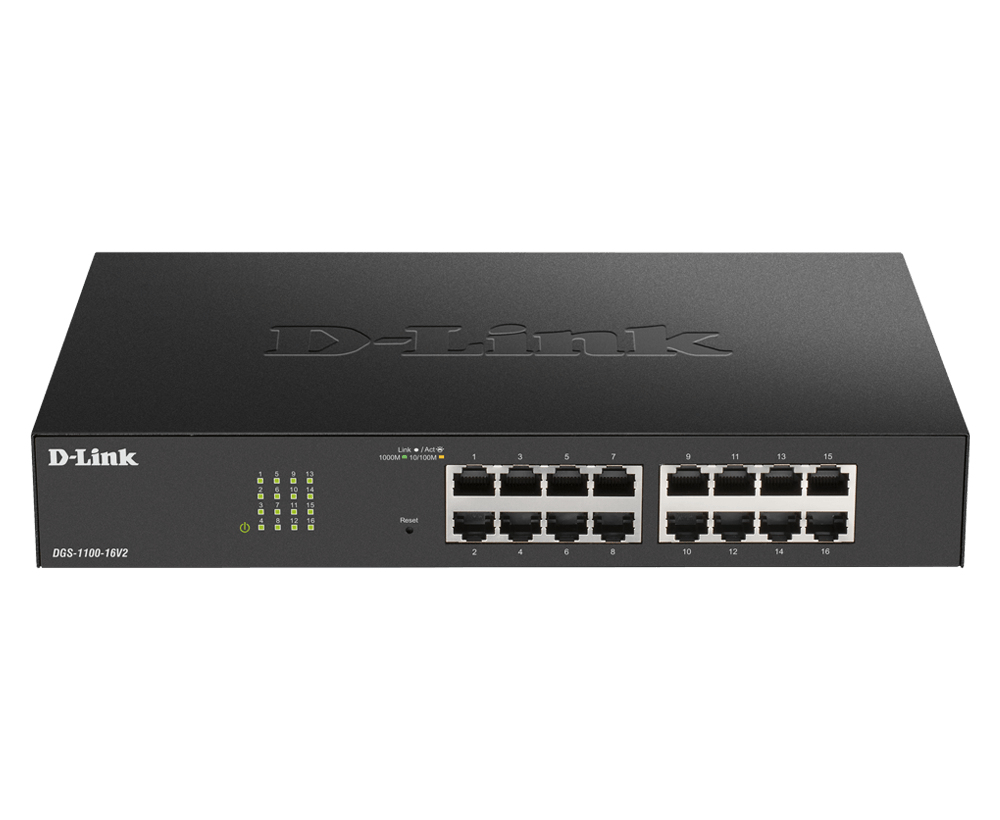

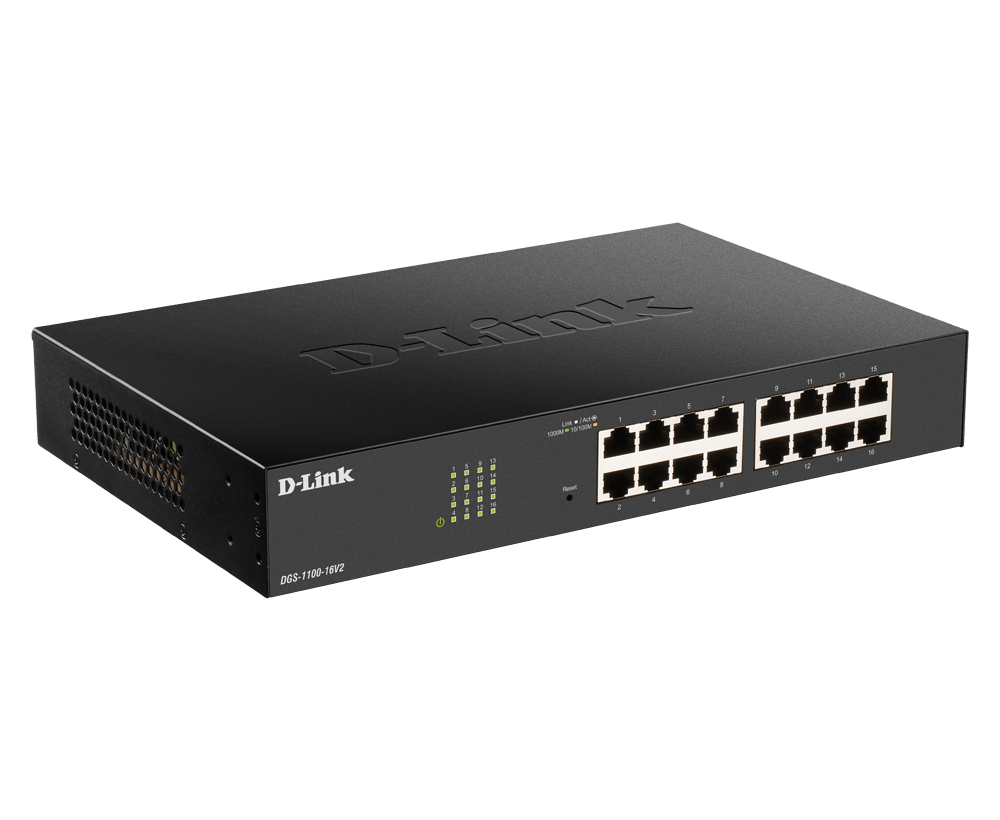

D-LINK Switch Dgs-1100-16v2 16 Ports Gigabit Smart Managed

£85.63

Part Number: DGS-1100-16V2
Delivery: 1 - 2 days

Product Details

Introduction

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds
Take your Ethernet speeds to the next level with Gigabit Connectivity

Cutting Edge Green Technology
Innovative D-Link Green power saving features keep your budget in check

Manage Anywhere, Anytime
Remote setup & management is easy, and can be done from anywhere.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Performance

Noise level 0 dB
Harmonized System (HS) code 85176990
Built-in processor Y
Processor frequency 125 MHz
Memory type DRAM
Flash memory 16 MB
Fanless Y
Mean time between failures (MTBF) 710519 h

Network

Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support N
Copper ethernet cabling technology 10BASE-T,10BASE-TX,1000BASE-T
Port mirroring Y
Full duplex Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Rate limiting Y
Auto MDI/MDI-X Y
Spanning tree protocol Y
Head-of-line (HOL) blocking Y
Auto-negotiation Y
VLAN support Y
Virtual LAN features Port-based VLAN,Voice VLAN
Number of VLANs 128

Management features

Switch layer L2
Switch type Managed
Quality of Service (QoS) support Y
Web-based management Y
System event log Y

Design

Rack mounting Yes
Product colour Black
LED indicators Y
Certification EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Data transmission

Switching capacity 32 Gbit/s
Forwarding rate 23.81 Mpps
MAC address table 8000 entries
Store-and-forward Y
Number of queues 4
Jumbo frames support Y
Jumbo frames 9216
Packet buffer memory 4.1 MB

Security

DHCP features DHCP client
IGMP snooping Y
Security algorithms SNMP,SSL/TLS
Queue scheduling algorithms SPQ,Weighted Round Robin (WRR)

Multicast features

Multicast support Y

Power

AC input voltage 100 - 240 V
Power consumption (max) 10.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) N

Operational conditions

Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 2000 m
Heat dissipation 34.46 BTU/h

Weight & dimensions

Width 280 mm
Depth 180 mm
Height 44 mm
Weight 1.27 kg

Information

Part Number: DGS-1100-16V2
