Introduction
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

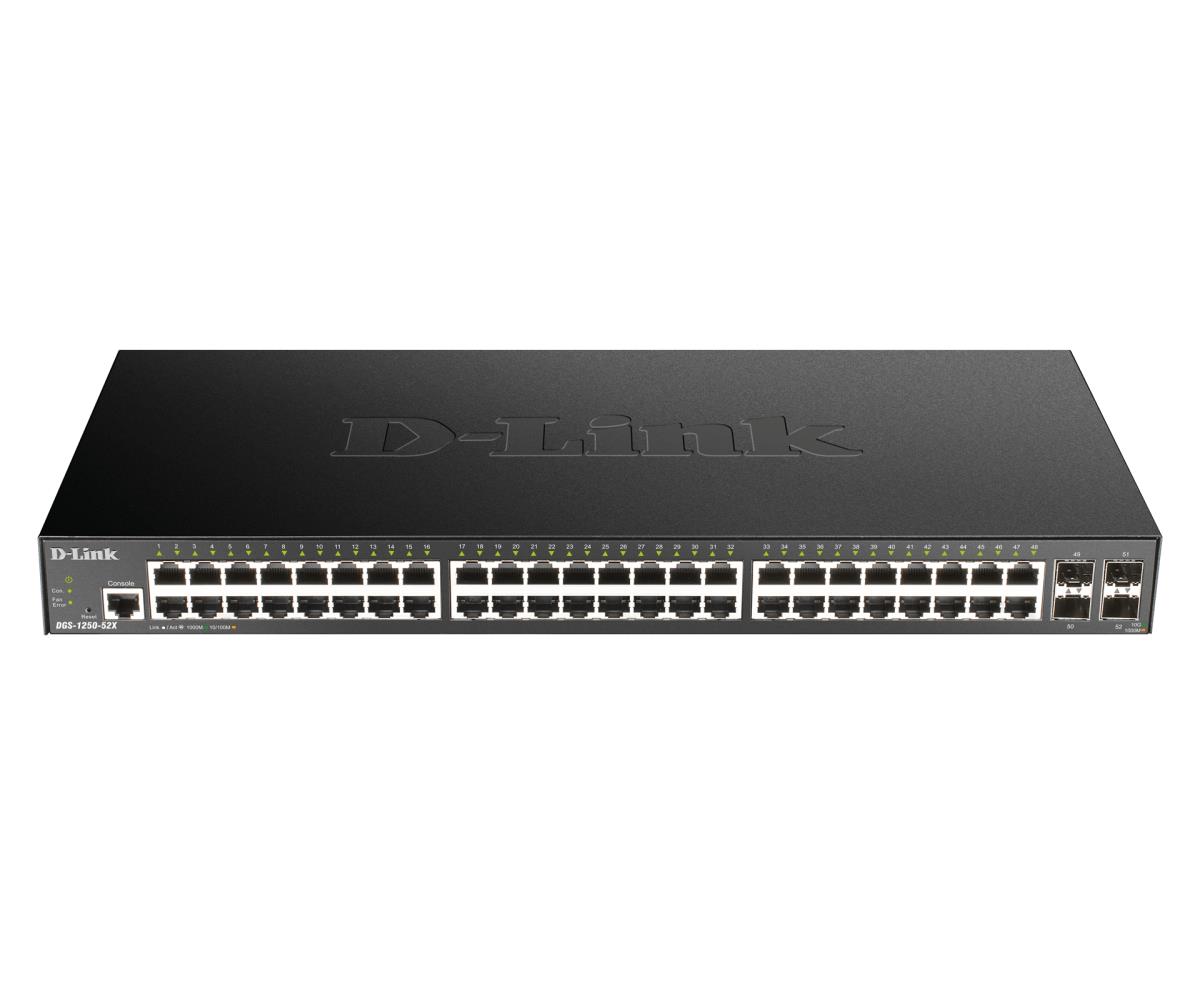

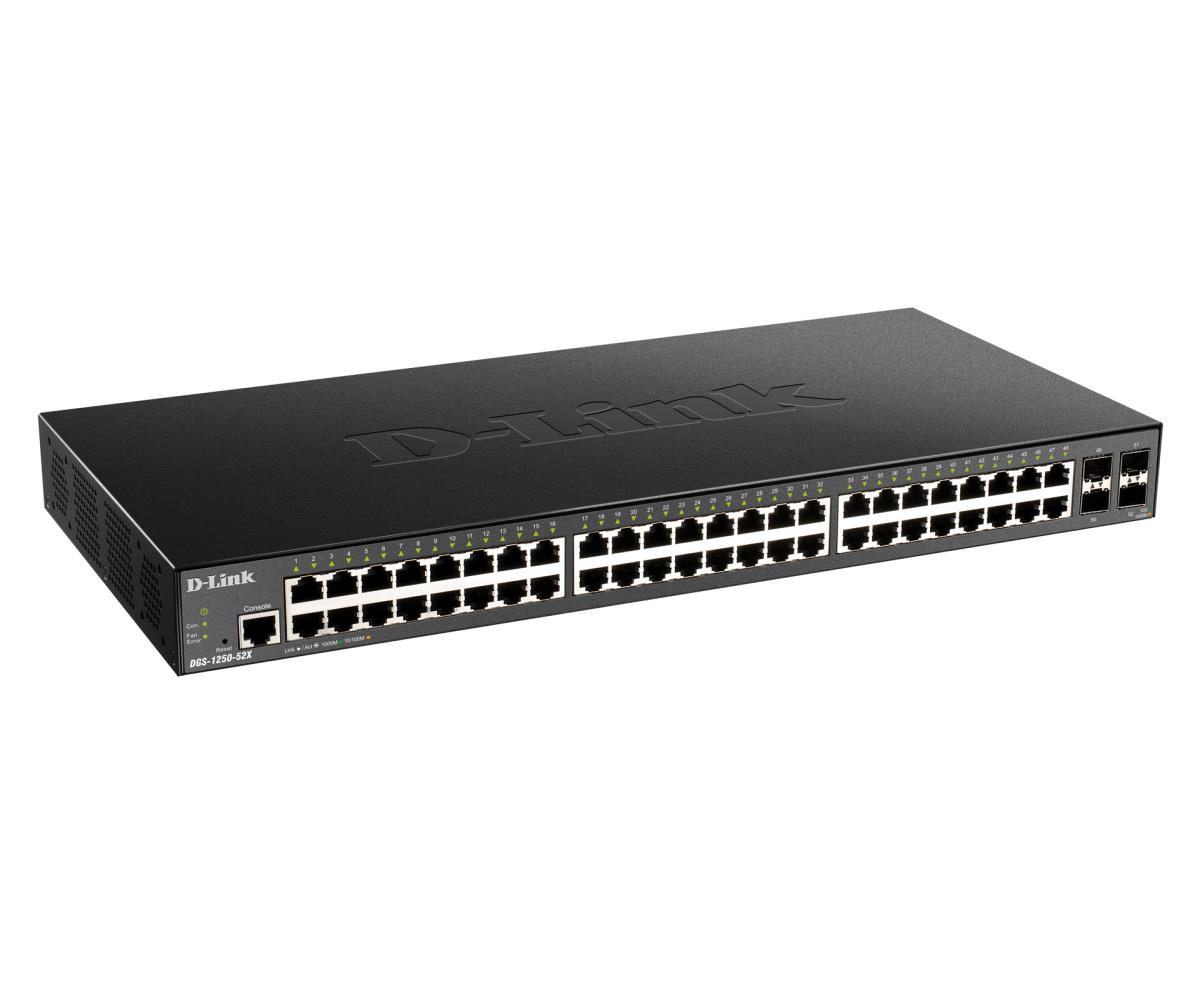

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers - enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes equipped with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.
The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Management features
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Y
Web-based management
Y
Configuring Location Settings (CLI)
Y
ARP inspection
Y
System event log
Y
MIB support
RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620,
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Console port
RJ-45
Network
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Auto MDI/MDI-X
Y
Spanning tree protocol
Y
Head-of-line (HOL) blocking
Y
VLAN support
Y
Virtual LAN features
Voice VLAN
Number of VLANs
4094
Optical fiber
Fiber ethernet cabling technology
100BASE-FX,1000BASE-LHX,1000BASE-X,1000BASE-LX,1000BASE-SX,1000BASE-ZX
Data transmission
Switching capacity
176 Gbit/s
Forwarding rate
130.95 Mpps
MAC address table
32000 entries
Static route
Y
Number of static routes
124
Jumbo frames support
Y
Jumbo frames
12000
Packet buffer memory
16 MB
Security
DHCP features
DHCP client,DHCP server,DHCP snooping
Access Control List (ACL)
Y
Access Control List (ACL) rules
768
IGMP snooping
Y
Security algorithms
EAP,LEAP,MD5,PEAP,SSH,SSL/TLS,TTLS
Loop protection
Y
IP-MAC-Port binding
Y
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Design
Product colour
Black
LED indicators
Activity, Link, Power, Speed
Electromagnetic compatibility
CE A, VCCI A, FCC A, IC, BSMI
Certification
CB, UL, BSMI, CCC
Performance
Memory type
DDR3-SDRAM
Internal memory
2048 MB
Flash memory
64 MB
Noise level
50.7 dB
Mean time between failures (MTBF)
589984.72 h
Technical details
Shipping (inner) case height
38.4 cm
Shipping (inner) case width
47.8 cm
Shipping (inner) case length
58.5 cm
Shipping (inner) case net weight
18.3 kg
Products per shipping (inner) case
5 pc(s)
Pallet gross weight (air)
382.7 kg
Master (outer) cases per pallet (air)
16 pc(s)
Products per pallet (air)
80 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
167.1 cm
Pallet gross weight (sea)
382.7 kg
Master (outer) cases per pallet (sea)
16 pc(s)
Products per pallet (sea)
80 pc(s)
Pallet height (sea)
167.1 cm
Shipping (inner) case gross weight
22.8 kg
Power
Power supply included
Y

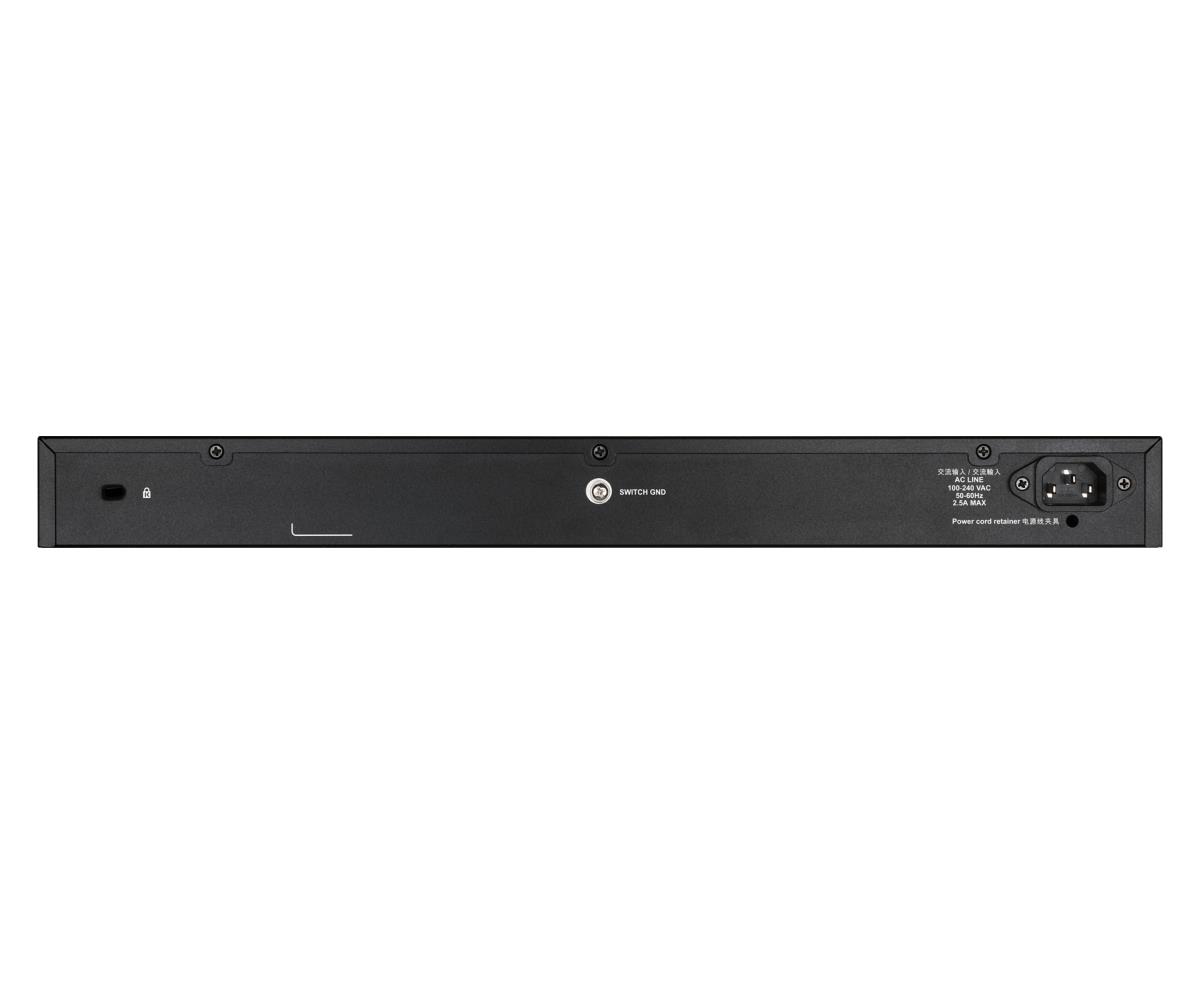

AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
51.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
174.592 BTU/h
Weight & dimensions
Width
440 mm
Depth
210 mm
Height
44 mm
Weight
3.01 kg
Packaging data
Package width
351 mm
Package depth
565 mm
Package height
91 mm
Package weight
4.28 kg
