Product Details
Introduction

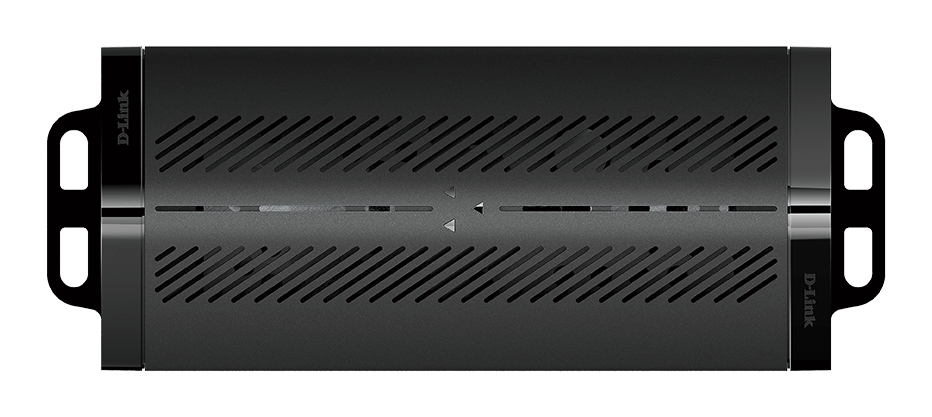

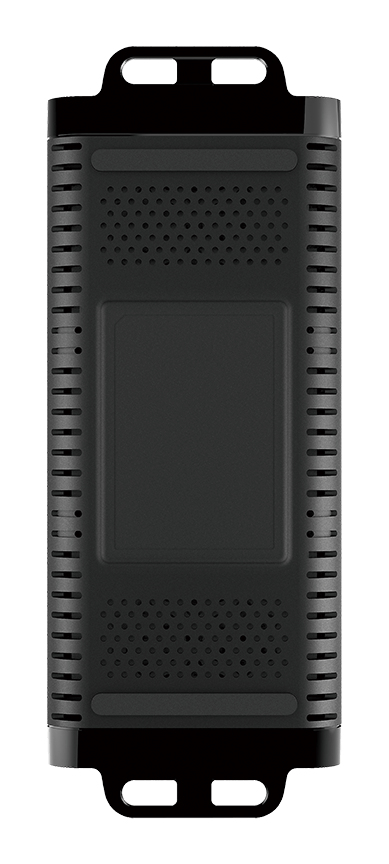

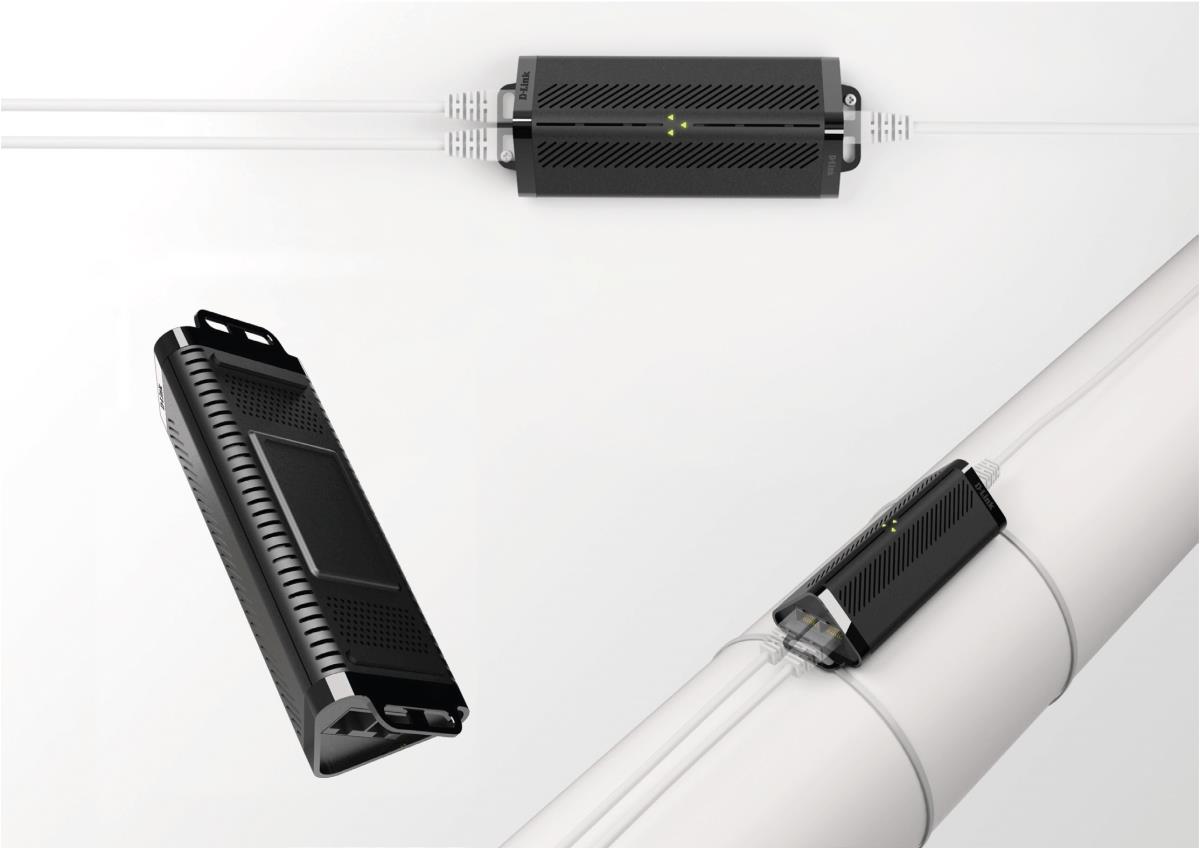

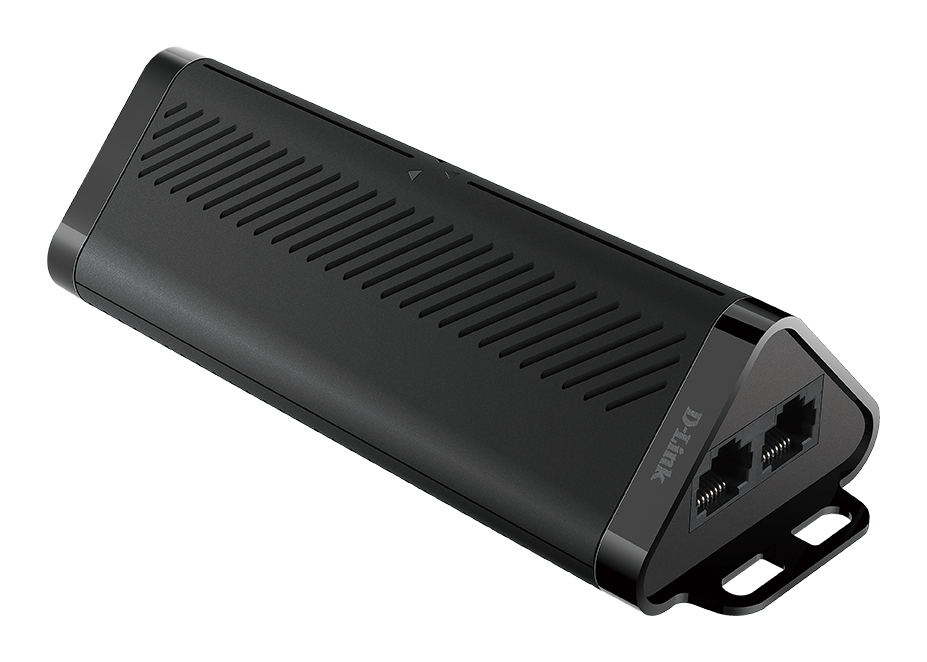

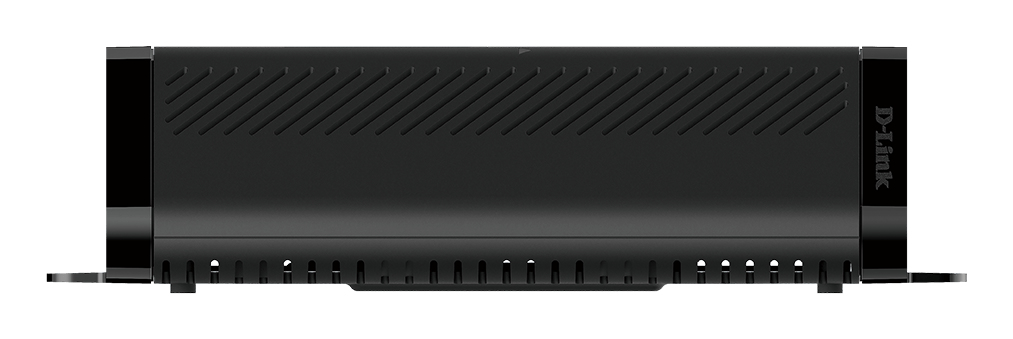

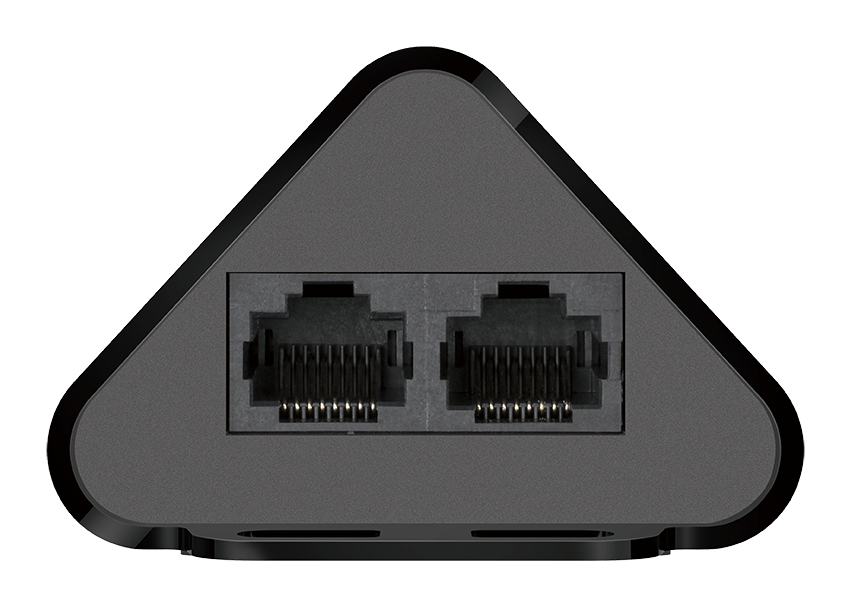

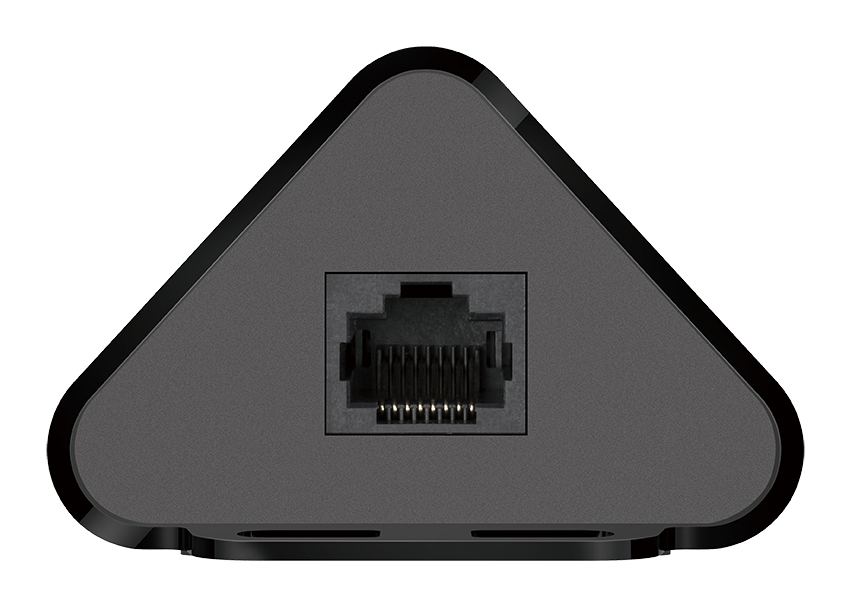

The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power-over-Ethernet connection to be extended up to 500 m. With several mounting options, the DPE-302GE allows PoE devices to be deployed virtually anywhere over longer distances, eliminating the need for a nearby power outlet and attached power supply.
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Y
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Duplex system
Full, Half
Features
LED indicators
PoE
Certification
CE
FCC
LVD/CE
IC
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
DC-in jack
Y
Power
Power consumption (max)
3.05 W
Operational conditions
Operating temperature (T-T)
-10 - 60 °C
Operating temperature (T-T)
-40 - 85 °F
Operating relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
5 - 95 °C
Weight & dimensions
Weight
154 g
Dimensions (WxDxH)
155 x 60 x 40 mm
Packaging data
Package width
109 mm
Package depth
217 mm
Package height
59 mm
Package weight
292 g
Logistics data
Shipping (inner) case length
45.4 cm
Shipping (inner) case width
31.2 cm
Shipping (inner) case height
24.5 cm
Shipping (inner) case net weight
6 kg
Products per shipping (inner) case
20 pc(s)
Pallet gross weight (air)
301.4 kg
Master (outer) cases per pallet (air)
42 pc(s)
Products per pallet (air)
840 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
185 cm
Pallet gross weight (sea)
301.4 kg
Master (outer) cases per pallet (sea)
42 pc(s)
Products per pallet (sea)
840 pc(s)
Pallet height (sea)
185 cm
Shipping (inner) case gross weight
6.67 kg
Information
| Part Number: | DPE-302GE |
