Product Details
Introduction

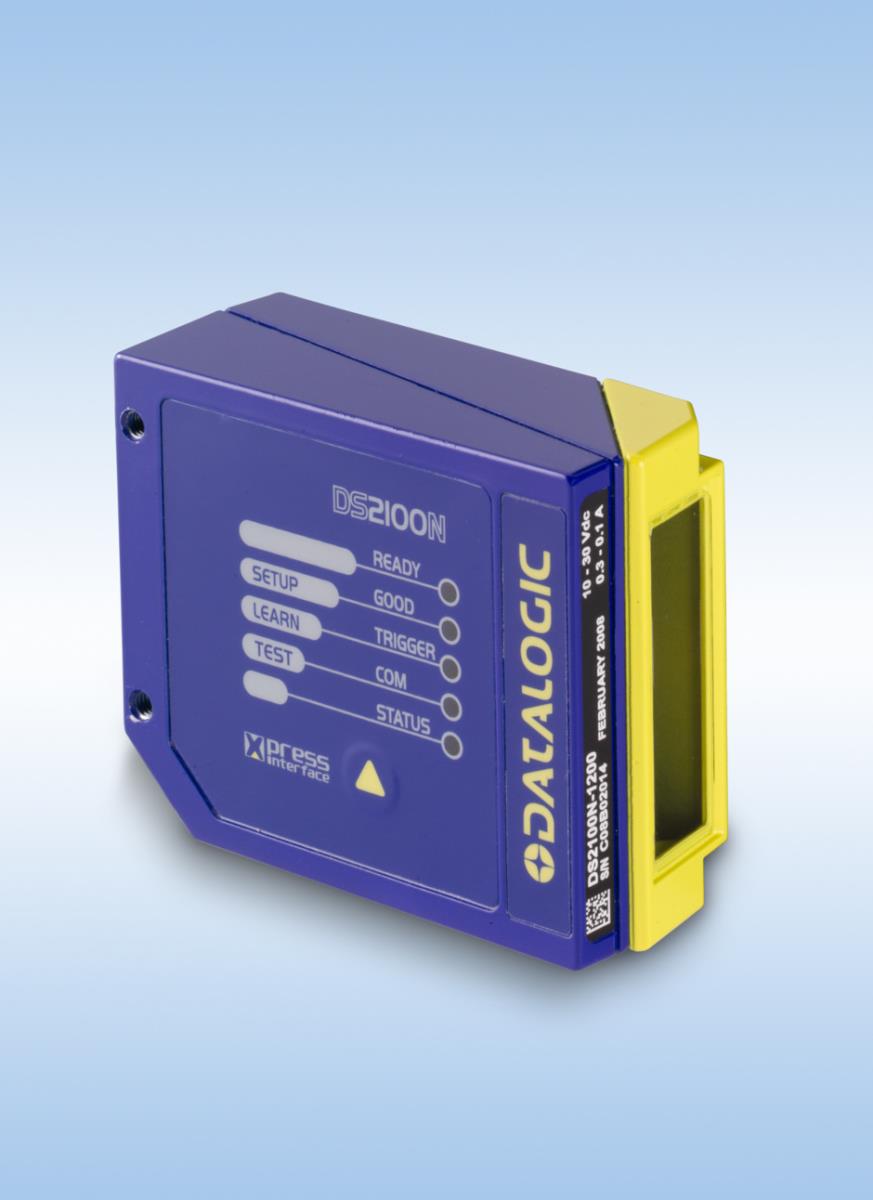

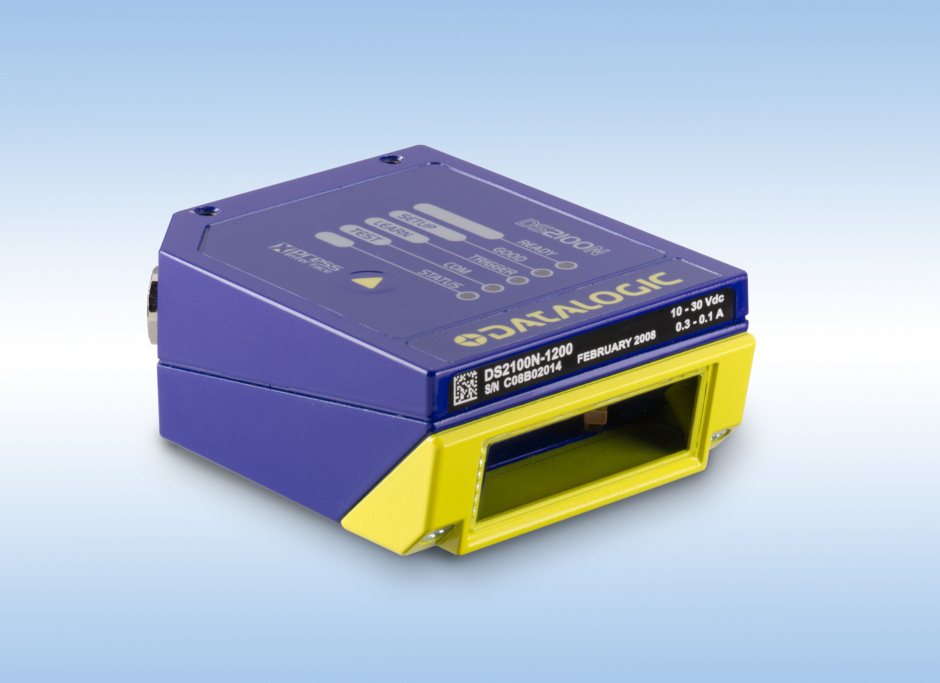

The new DS2100N industrial laser bar code reader takes advantage of Datalogic Automation's successful experience in 1D bar code reading, satisfying the demanding application needs of the largest manufacturers worldwide.
DS2100N provides greater profitability and productivity in the most common warehousing, shop floor and OEM applications.
Scanning
Working distance
30 cm
Read rate (max)
1000 reads/s
Decoding standards
Code2/5, Code39, Code93, Code128, EAN/UPC, EAN128, Codabar, Pharmacode, ISBN128
Ports & interfaces
Standard interfaces
RS-232,RS-485
Performance
International Protection (IP) code
IP65
Product colour
Blue, Yellow
Certification
IEC 825-1 Class 2, CDRH Class II
Power
Input voltage
10 - 30 V
Power requirements
3W
Weight & dimensions
Weight
330 g
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Other features
Dimensions (WxDxH)
84 x 68 x 34 mm
Compatible operating systems
ID-NET
Genius
X-PRESS
Information
| Part Number: | 930153189 |
