Introduction
Fanless Slim PC with integrated ULV processor in industrial design

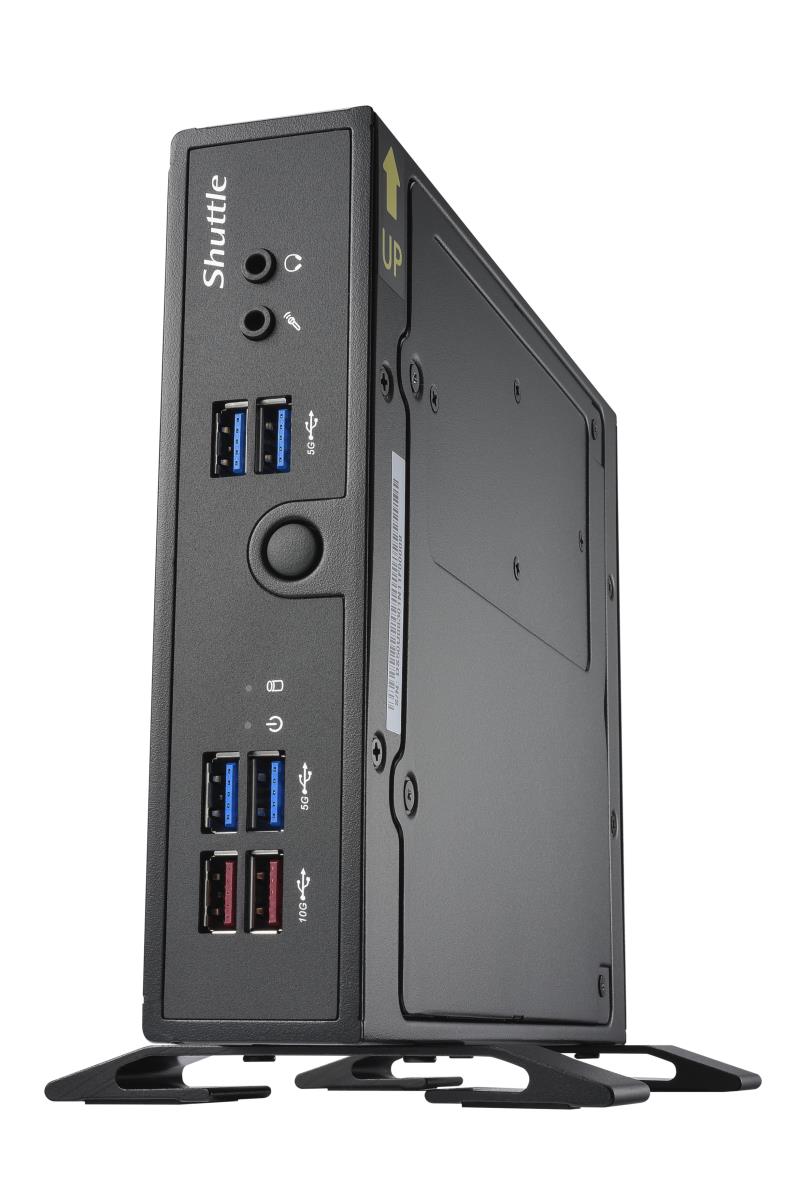

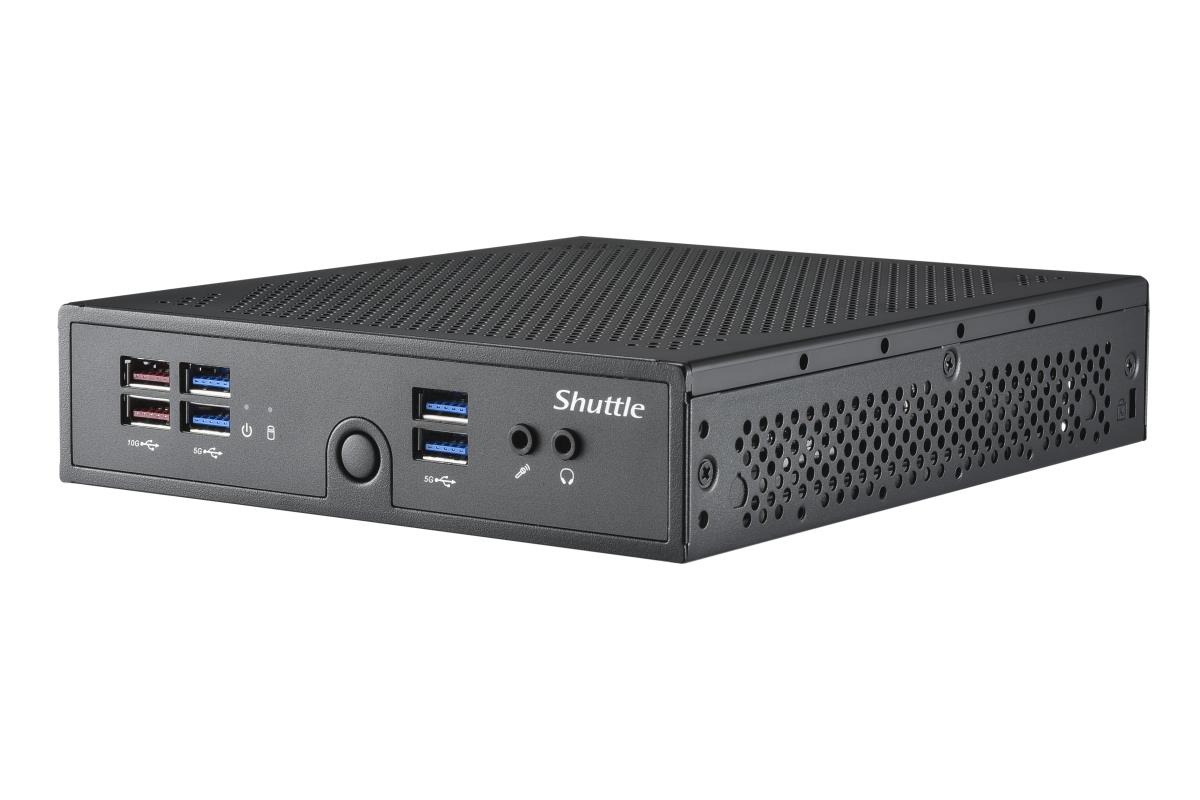

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.
Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor generation
13th gen Intel® Core™ i5
Processor model
i5-1335U
Processor cores
10
Processor threads
12
Processor boost frequency
4.6 GHz
Performance cores
2
Efficient cores
8
Built-in processor
Yes
Performance-core boost frequency
4.6 GHz
Efficient-core boost frequency
3.4 GHz
Processor cache
12 MB
Thermal Design Power (TDP)
15 W
ECC supported by processor
No
Memory
Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
64 GB
Supported memory clock speeds
5200 MHz
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Memory voltage
1.1 V
Internal memory installed
No
Storage
Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5,M.2
Storage drive interface
PCI Express, Serial ATA III
NVMe
Yes
Number of storage drives supported
3
Storage drives installed
No
Graphics
On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Audio
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I219, Intel I226-LM

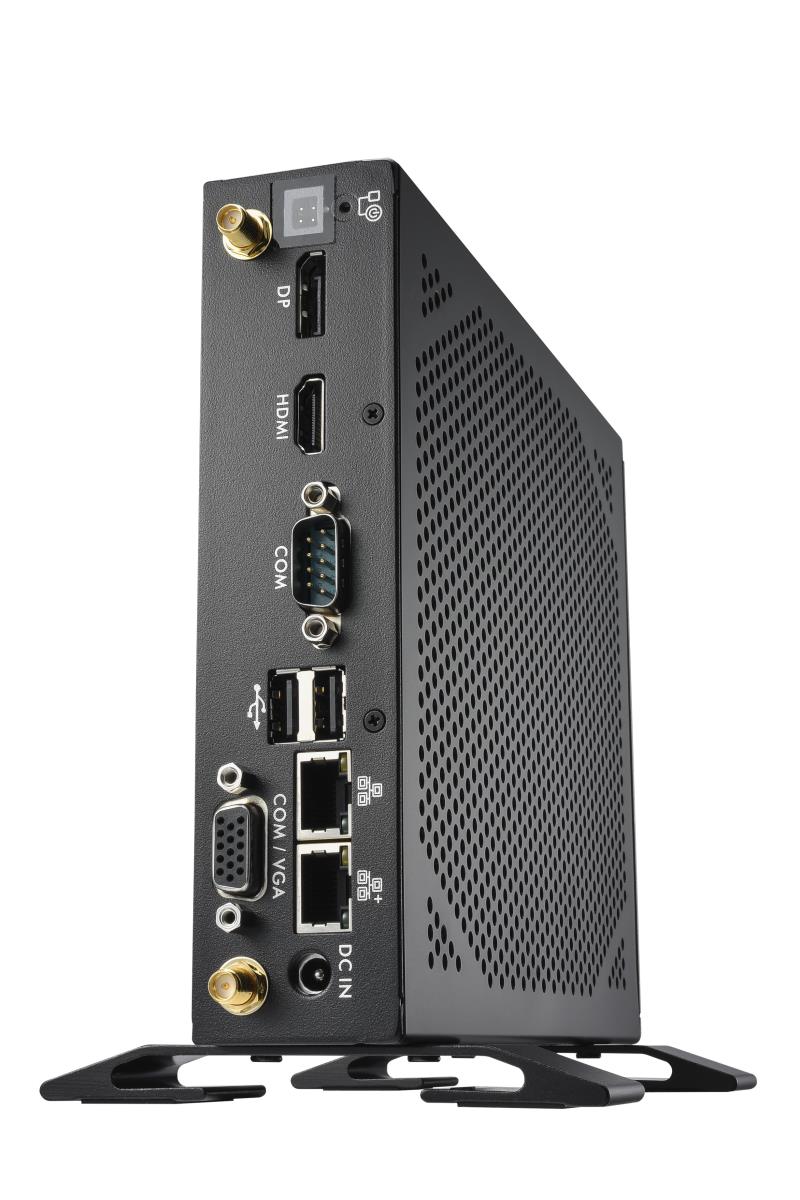

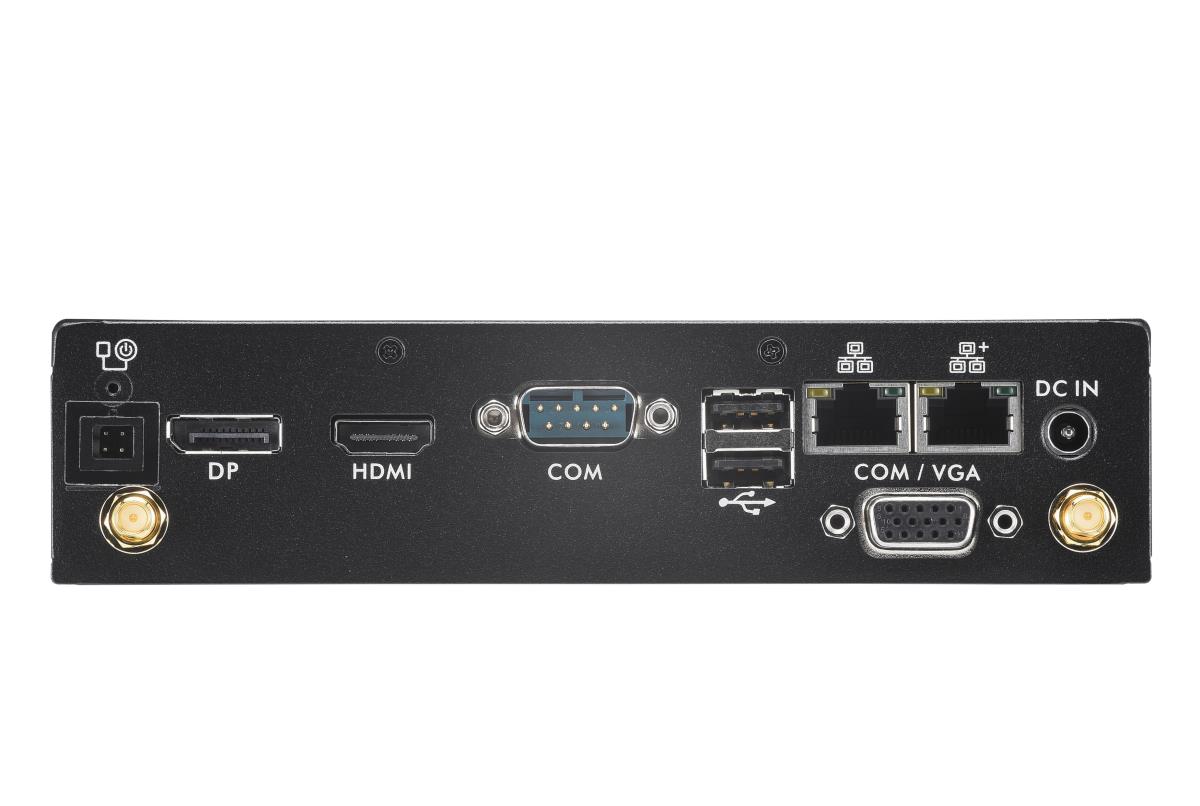

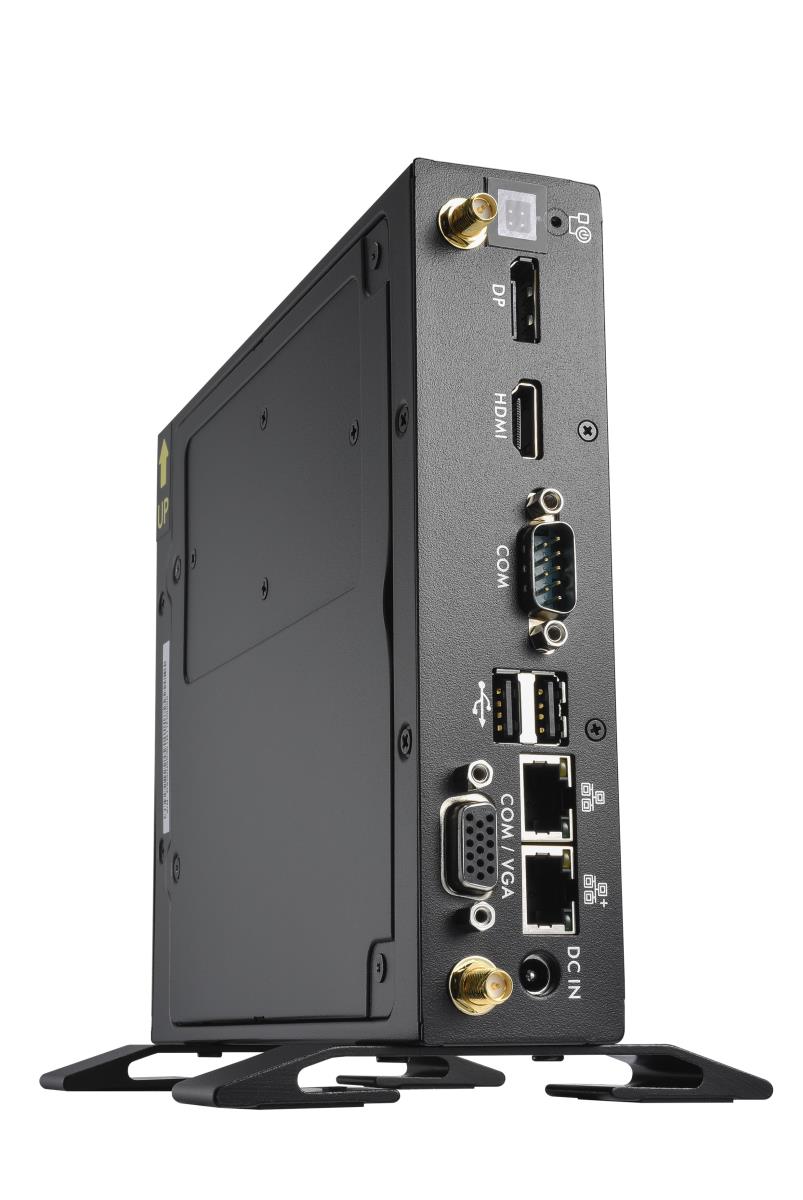

Ports & interfaces
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.0b
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
DisplayPort version
1.4
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
2
Serial ports quantity
1
DC-in jack
Yes
Design
Chassis type
1.3L sized PC
Product colour
Black
Cooling type
Passive
On/off switch
Yes
LED indicators
HDD, Power
Housing material
Steel
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Panel mounting interface
75 x 75,100 x 100 mm
Product type
Mini PC barebone
Performance
Number of processors supported
1
BIOS type
UEFI AMI
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0
Audio chip
RealTek ALC888S
Logistics data
Harmonized System (HS) code
84733080
Software
Windows operating systems supported
Windows 10, Windows 11
Linux operating systems supported
Yes
Operating system installed
No
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP
Power
Power supply type
External AC adapter
Power supply
90 W
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
19 V
AC adapter output current
1.6 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
200 mm
Depth
165 mm
Height
39.5 mm
Weight
1.6 kg
Package weight
2.3 kg
Packaging content
Power cord included
Yes
AC adapter included
Yes
Quick start guide
Yes
Technical details
Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
