Product Details
Introduction

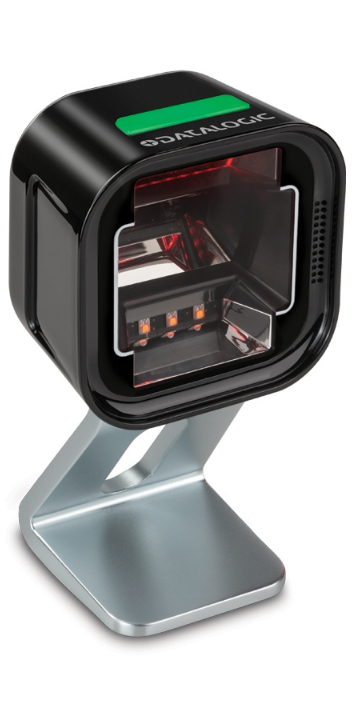

The Magellan 1500i is a high performance presentation scanner from Datalogic for a
variety of applications including retail POS, pharmacy and customer service. It provides outstanding performance on 1D and 2D barcodes from a variety of printed and mobile sources. The addition of Digimarc® Barcodes watermark decoding makes this a uniquely capable scanner.
Scanning
Type
Barcode module bar barcode readers
Scanner type
1D/2D
Linear (1D) barcodes supported
GS1 DataBar Expanded,GS1 DataBar Omnidirectional
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, MaxiCode, QR Code
Optical sensor resolution (W x H)
1280 x 800 pixels
Light levels (direct sunlight)
0 - 86100 lx
Ports & interfaces
Connectivity technology
Wired
Standard interfaces
RS-232,USB
Performance
International Protection (IP) code
IP52
Product colour
Black
Power
Input voltage
5 V
Weight & dimensions
Width
60 mm
Depth
75 mm
Height
106 mm
Weight
240 g
Packaging data
Cables included
USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Technical details
Sustainability certificates
RoHS
Information
| Part Number: | MG1501-10231-0200 |
