DATALOGIC Powerscan Pm9501 433 MHz Direct Part Evo

Introduction

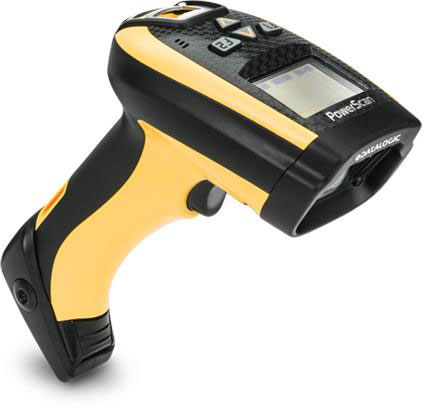

The PowerScanT 9501 2D area imagers combine omnidirectional reading capabilities with outstanding optical characteristics, resulting in a scanner that is able to read any kind of bar code, regardless of orientation!

The PowerScan family of bar code readers are the ultimate industrial hand held scanners designed and constructed to withstand the toughest environmental conditions.

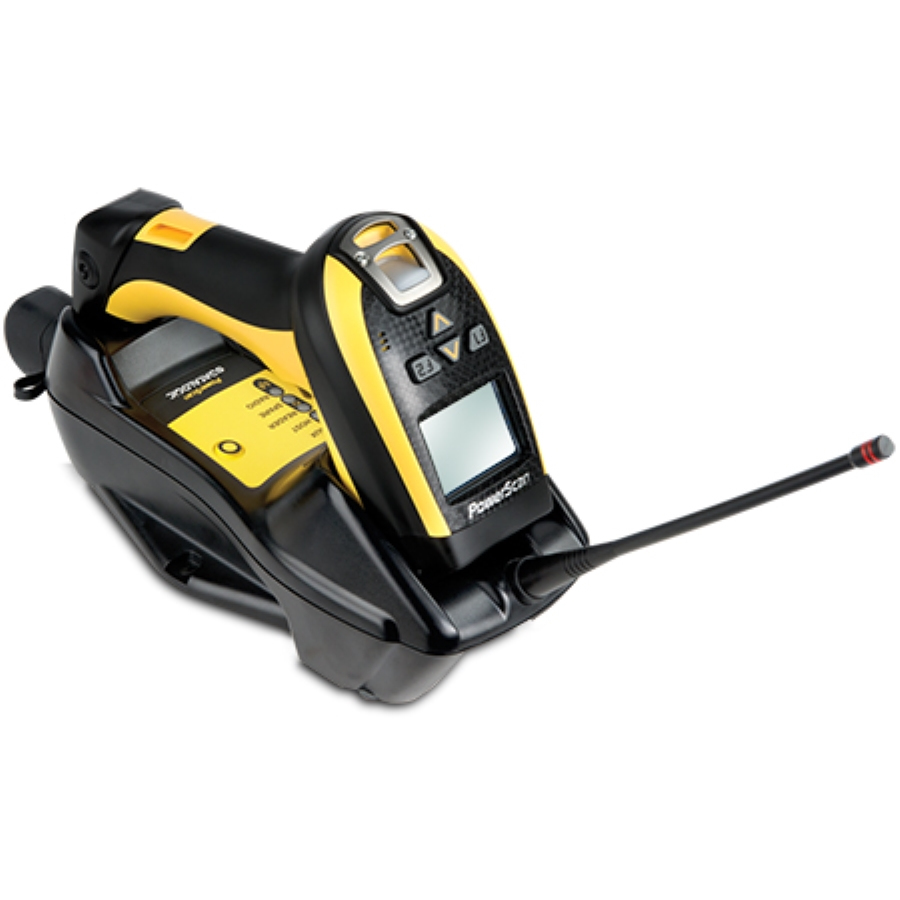

The PowerScan PD9531 imager is the corded version of the new series. The 9501 cordless area imagers are comprised of the PBT9501 / PM9501 imagers. The PBT9501 features Bluetooth® wireless technology and the PM9501 features Datalogic's STAR Cordless SystemT narrow band radio.

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.

The 9501 area imagers also feature Datalogic's exclusive 3 Green Lights (3GLT) for superior good-read feedback. The patented 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.

The PowerScan 9501 imagers introduce a new technology with the 'Liquid Lens' feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic's MotionixT motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).

Scanning

Ports & interfaces

Performance

Power

Weight & dimensions

Packaging data

Operational conditions

Technical details
