Product Details
Introduction

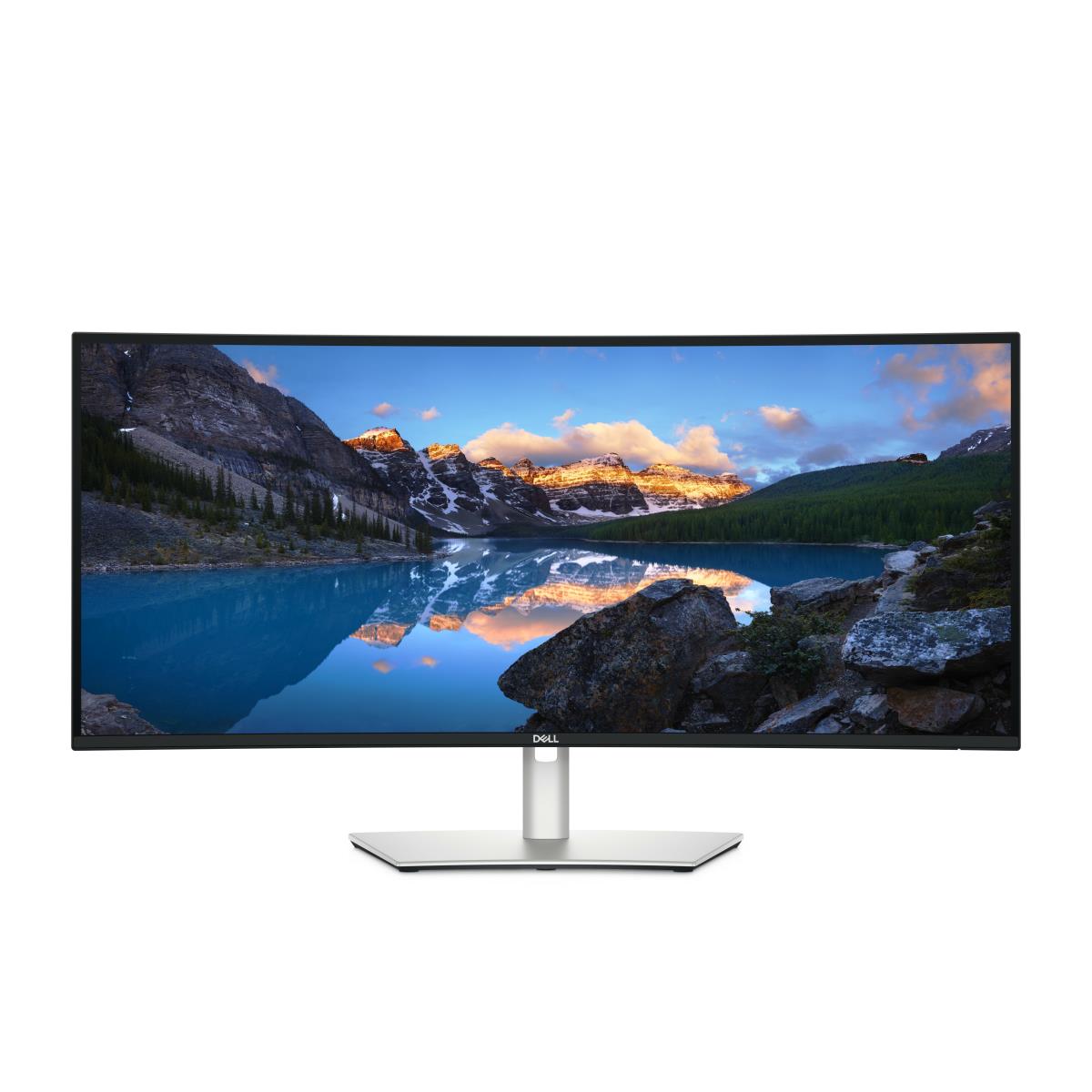

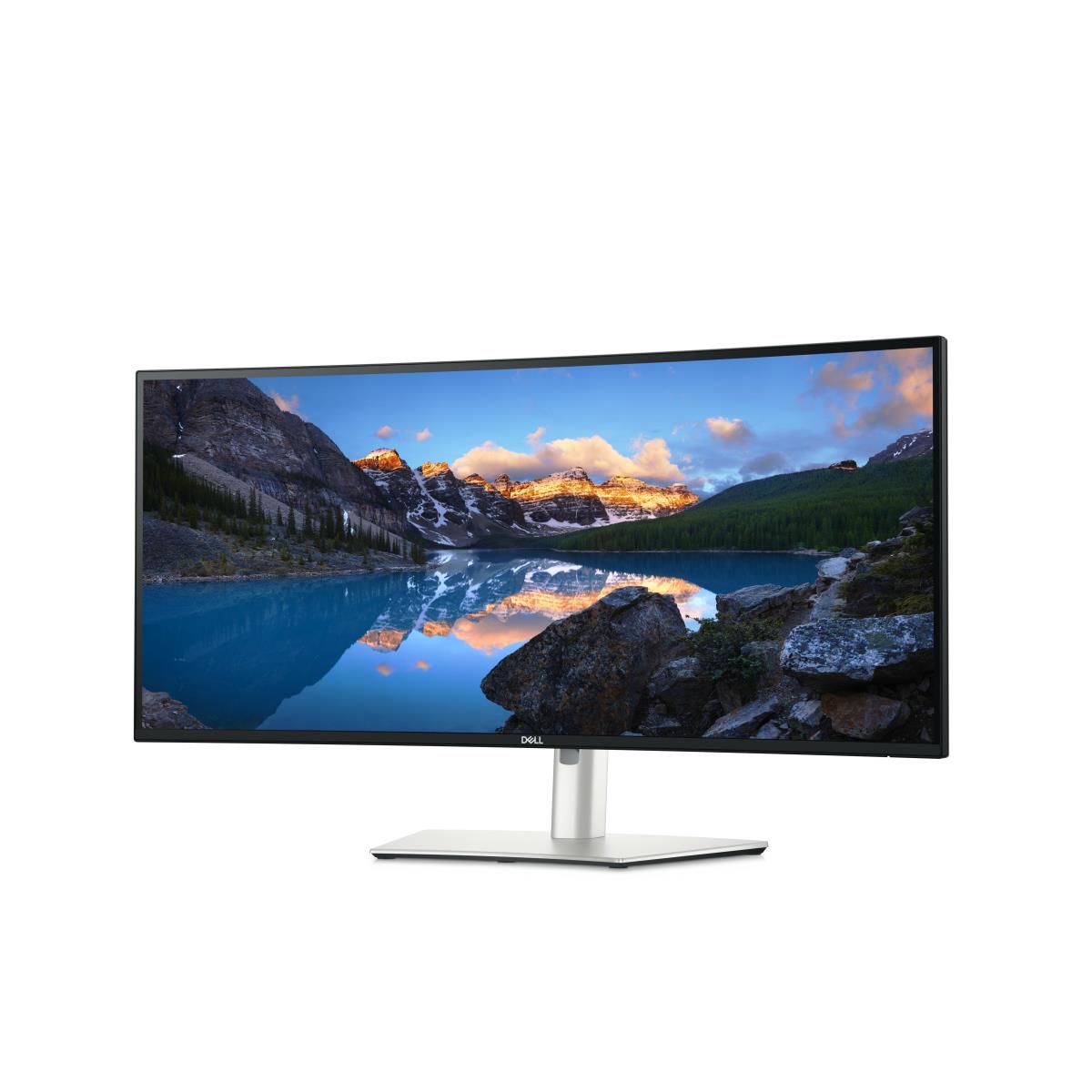

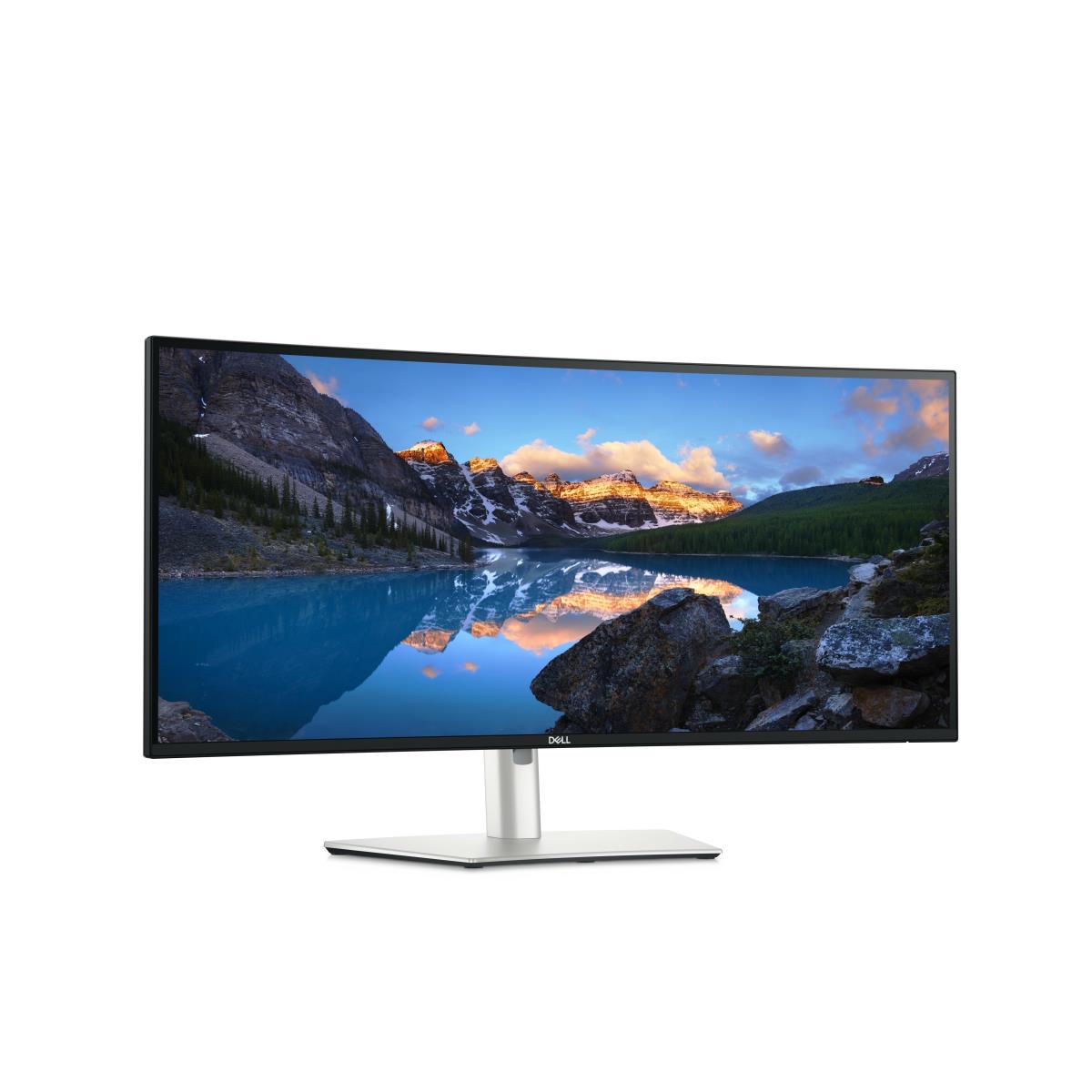

34-inch curved Thunderbolt™ hub monitor made for clear focus and greater comfort. Featuring 5-Star Eye Comfort and 120Hz refresh rate.
Monitor Type
TV / Monitor
Monitor
Model Specifications
Model
U3425WE
Display Type
LCD
Screen Size
34"
Cabinet Colour
Silver
Backlighting Technology
LED
Display
Screen Technology
IPS
Pixel Pitch
0.2325 mm x 0.2325 mm
Response Time
8 ms (Normal)
5 ms (Fast)
5 ms (Fast)
Screen Shape
1900R Curvature
LED backlight
Yes
Display diagonal
86.7 cm (34.1")
Display resolution
3440 x 1440 pixels
HD type
Wide Quad HD
Native aspect ratio
21:9
Display technology
LCD
Panel type
IPS
Backlight type
LED
Touchscreen
No
Display brightness (typical)
300 cd/m˛
Response time
8 ms
Anti-glare screen
Yes
Screen shape
Curved
Screen curvature rating
1900R
Supported graphics resolutions
640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1600 x 1200, 1920 x 1080 (HD 1080), 2560 x 1440, 3440 x 1440
Supported video modes
480p, 576p, 720p, 1080i, 1080p
Contrast ratio (typical)
2000:1
Maximum refresh rate
120 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Response time (fast)
5 ms
Pixel pitch
0.2325 x 0.2325 mm
Pixel density
110 ppi
Horizontal scan range
25 - 185 kHz
Vertical scan range
48 - 120 Hz
Viewable size, horizontal
80 cm
Viewable size, vertical
33.5 cm
Viewable size diagonal
86.7 cm
High Dynamic Range (HDR) supported
No
Surface hardness
3H
RGB colour space
DCI-P3
Colour gamut
98%
sRGB coverage (typical)
100%

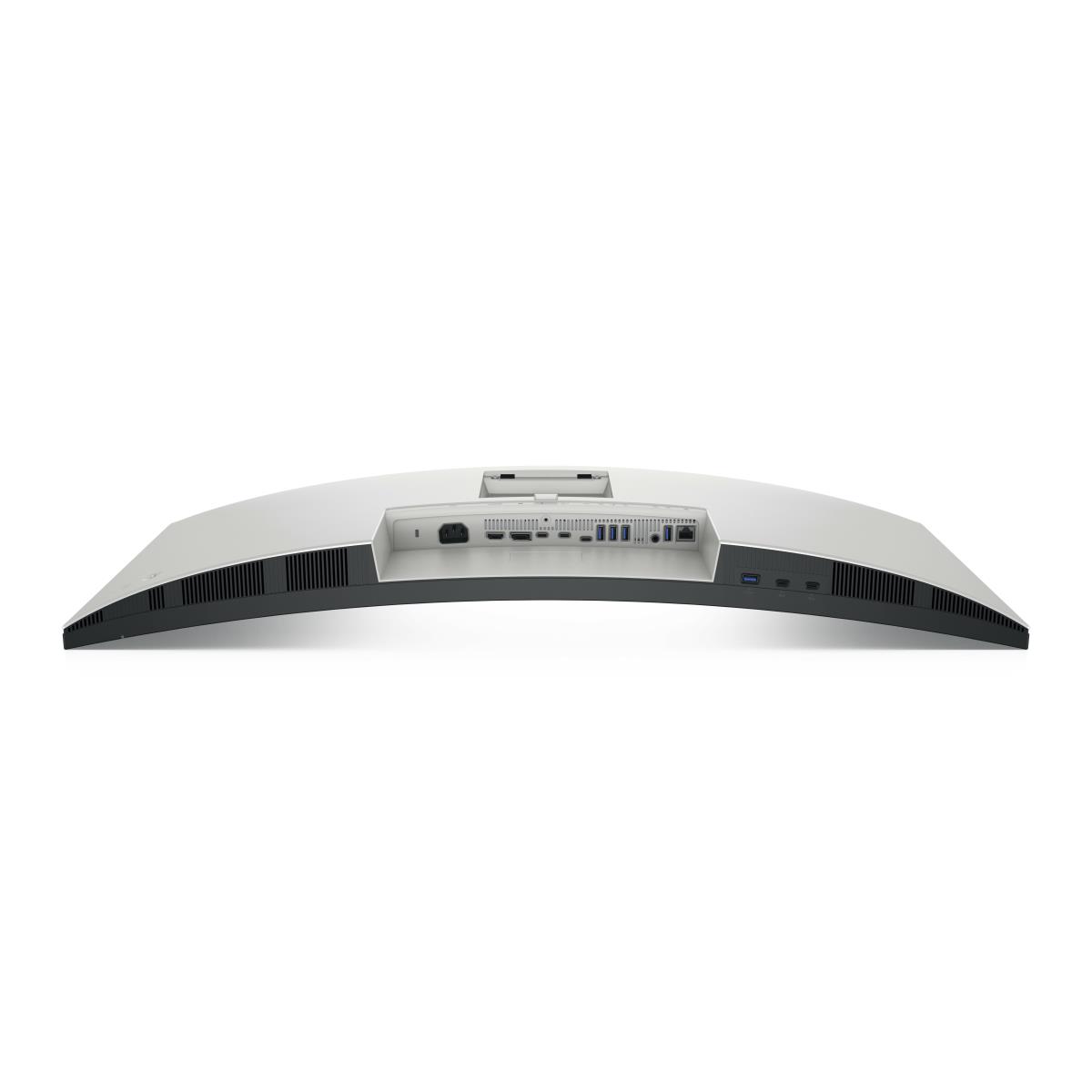

Connectivity
Audio
1 x Audio line-out port
Display Port
1 x DP 1.4 (HDCP1.4 & 2.2)
HDMI
1 x HDMI
RJ 45
1 x RJ45
Thunderbolt port
1 x ThunderboltT 4 downstream port (15 W) for daisy chaining (Video + Data)
1 x ThunderboltT 4 upstream port (Video + Data). Alternate mode with DisplayPort 1.4, Power Delivery up to 90 W
1 x ThunderboltT 4 upstream port (Video + Data). Alternate mode with DisplayPort 1.4, Power Delivery up to 90 W

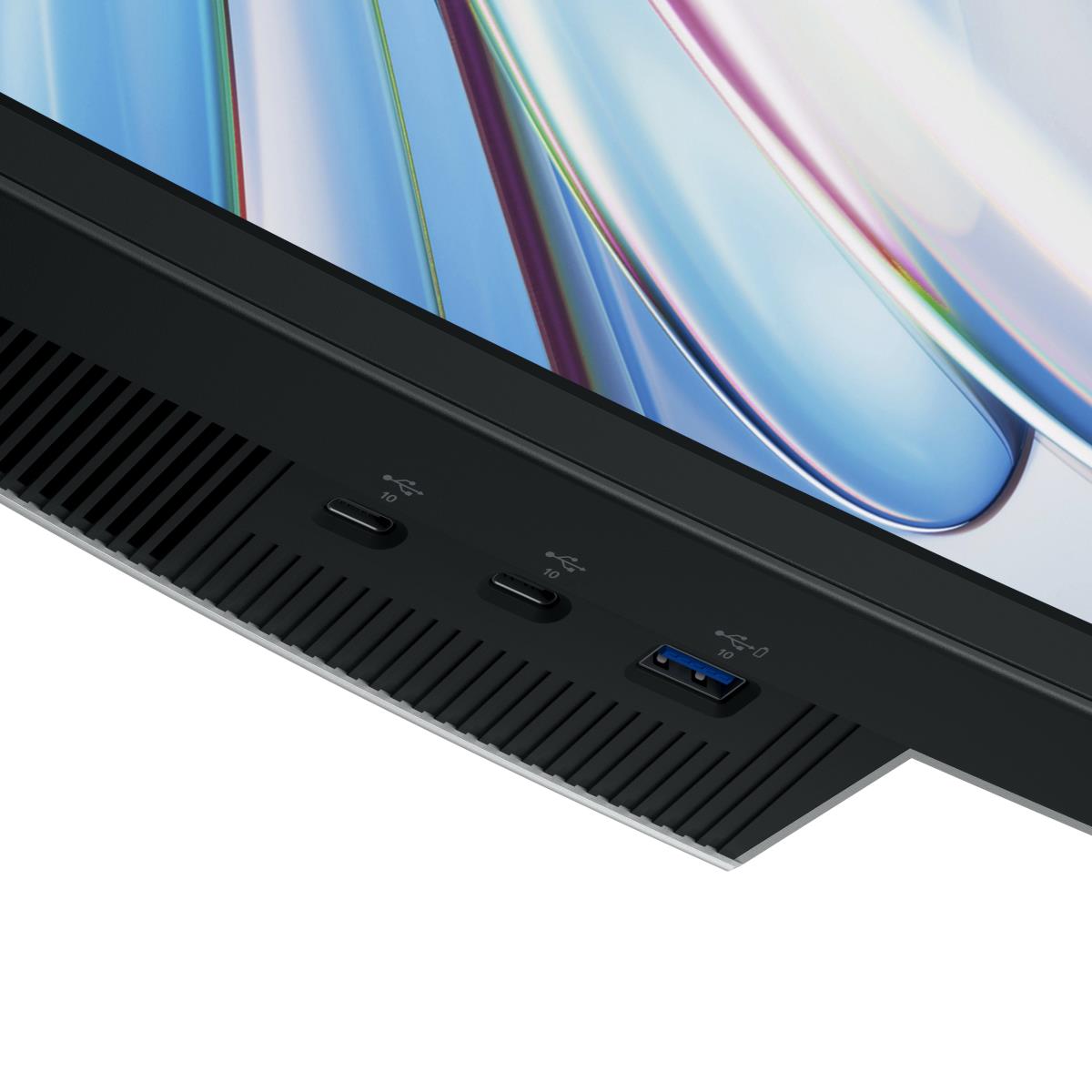

USB
1 x USB-Type C upstream port (data only) (super speed USB 10 Gbps, USB 3.2 Gen2)
4 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2)
1 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with BC1.2 power charging
2 x USB Type-C downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with power charging (15 W)
4 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2)
1 x USB Type-A downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with BC1.2 power charging
2 x USB Type-C downstream port (super speed USB 10 Gbps, USB 3.2 Gen2) with power charging (15 W)
Brightness
300 cd/m2 (typical)
Aspect Ratio
21:9
Colours
1.07 Billion colors (8bit + A-FRC)
Maximum Resolution
3440 x 1440
Multimedia
Multimedia Capability
Yes
Speakers
2 x 5W Built-in Speaker
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
10 W
Power
Power Voltage
100 VAC to 240 VAC / 50 Hz or 60 Hz
Power Consumption
0.3 W (Off mode)
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
32 kWh
Power consumption (typical)
31.5 W
Power consumption (standby)
0.5 W
Power consumption (max)
250 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
3.2 A
Power supply type
Internal
Energy efficiency scale
A to G
Ergonomics
Supported Mounting
100 x 100 mm
Tilt angle
-5°/+21°
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington

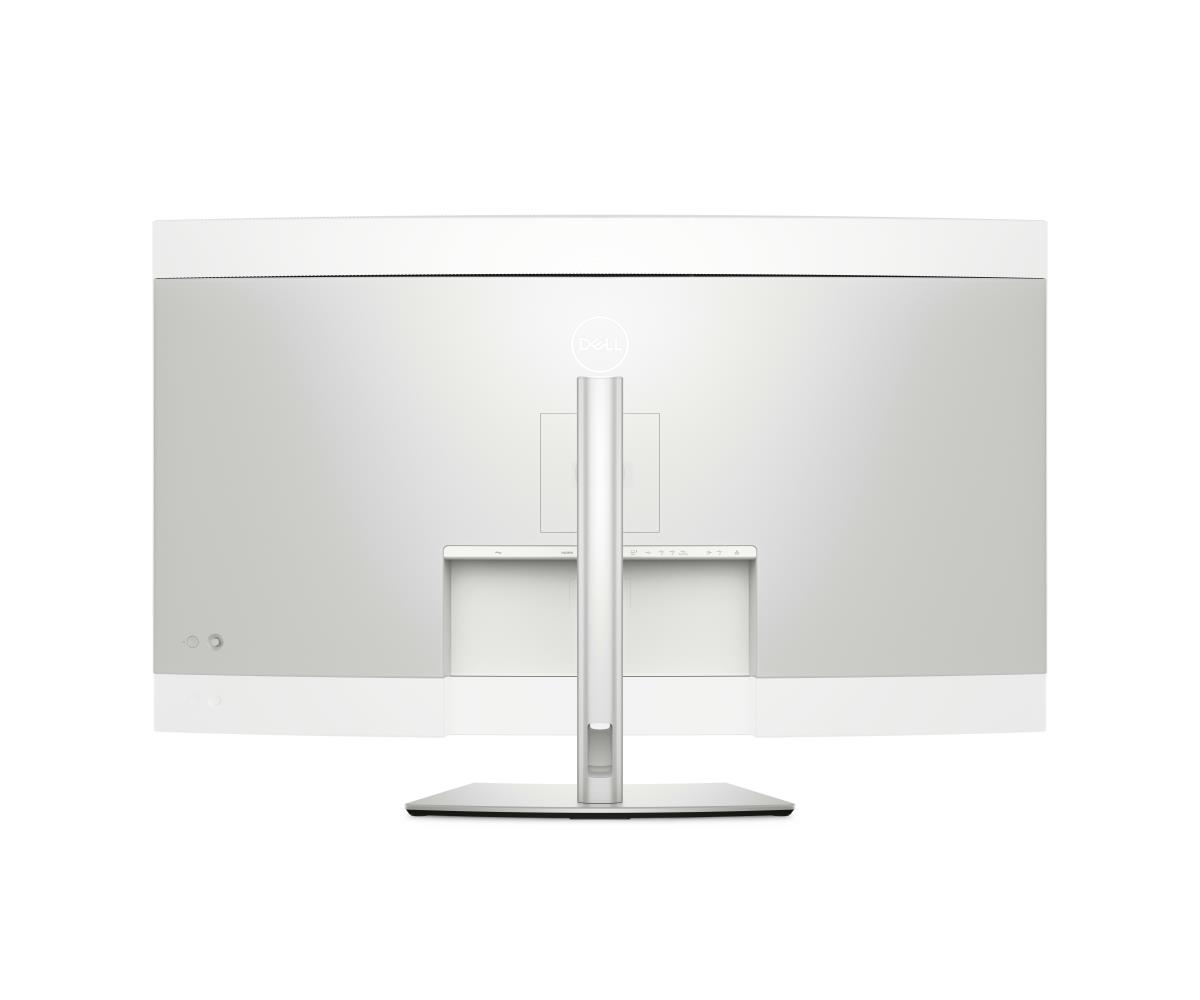

Height adjustment
Yes
Height adjustment
15 cm
Pivot
No

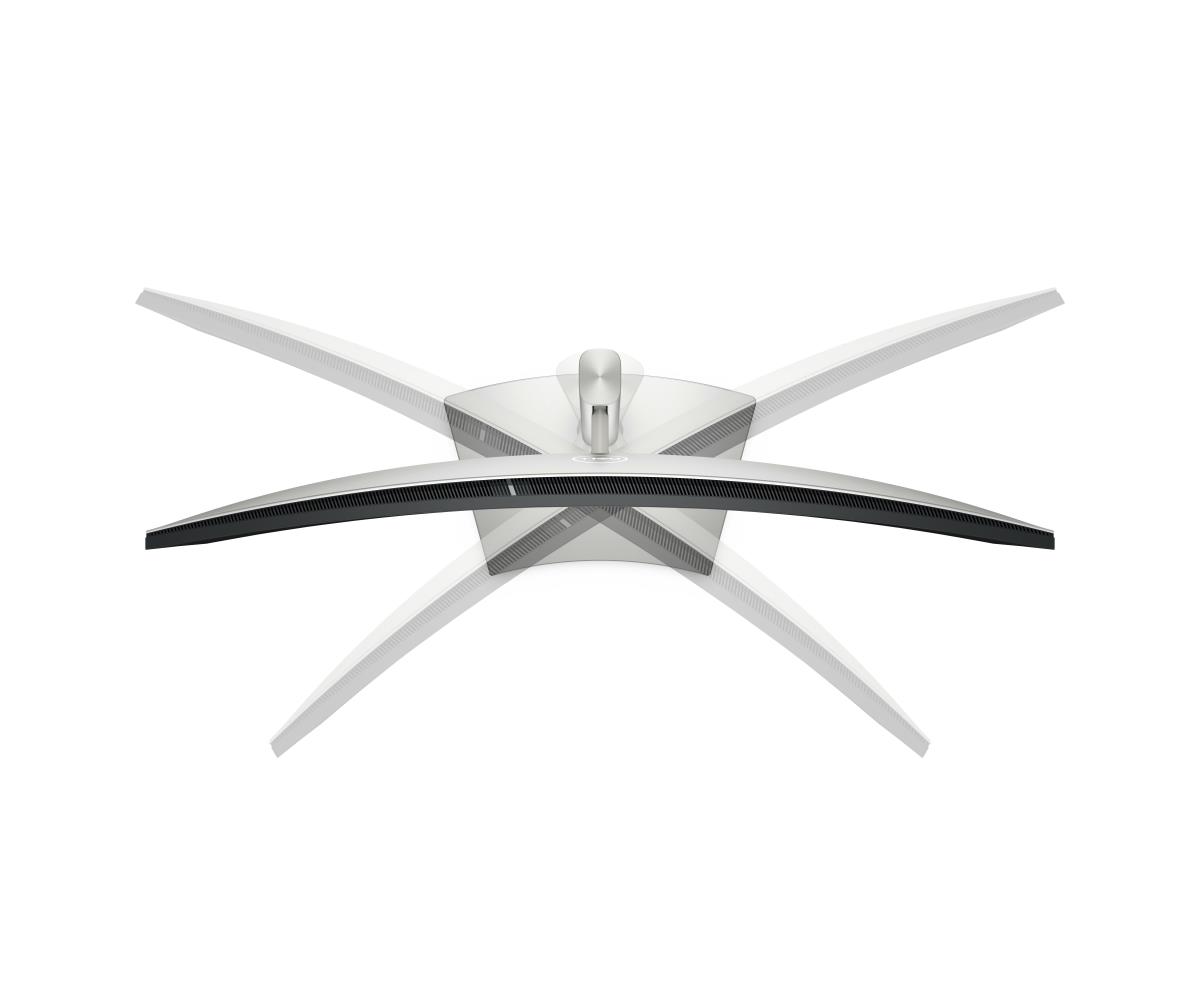

Swivelling
Yes
Swivel angle range
-30 - 30°

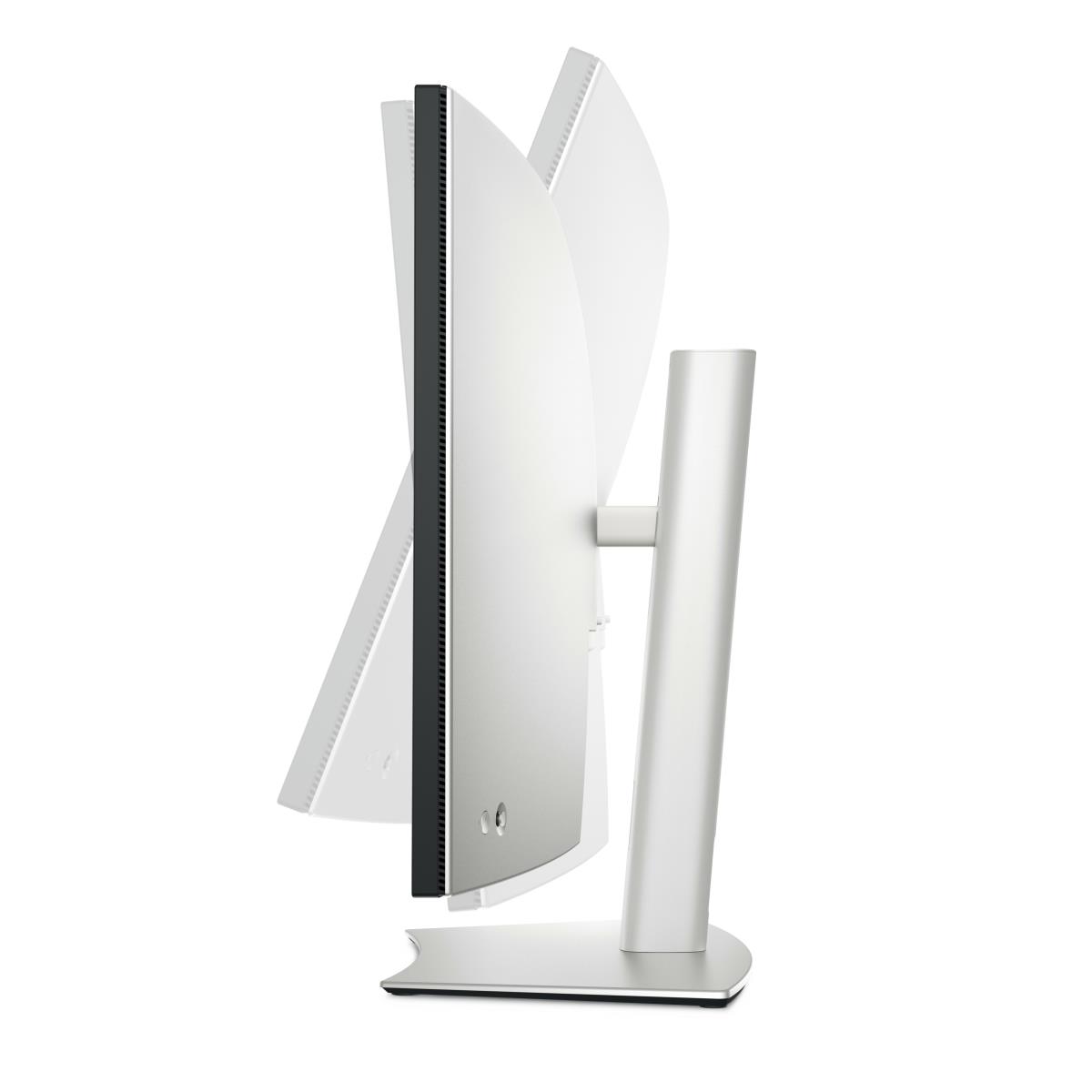

Tilt adjustment
Yes
Tilt angle range
-5 - 21°
On Screen Display (OSD)
Yes
Plug and Play
Yes
LED indicators
Yes
Green Certificates
Energy Star Certified
Yes
Green Compliant
Yes
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Flicker-free technology
Yes
Low Blue Light technology
Yes
Design
Market positioning
Business
Product colour
Black, Silver
Front bezel colour
Black
Detachable stand
Yes
Feet colour
Silver
Heavy metals free
Hg (mercury)
Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB upstream port type
USB Type-C
Number of USB Type-C upstream ports quantity
2
USB Type-A downstream ports quantity
5
USB Type-C downstream ports quantity
3
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
USB Power Delivery up to
90 W
HDMI
Yes
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Thunderbolt 4 ports quantity
2
Headphone out
Yes
Headphone outputs
1
HDCP
Yes
HDCP version
1.4/2.2
Carbon footprint
Total carbon footprint
361
Carbon emissions (Manufacturing)
149.093
Carbon emissions (Logistics)
28.158
Carbon emissions (Energy Usage)
154.147
Carbon emissions (End-of-Life)
29.602
Total carbon emissions (w/o Use phase)
206.853
PAIA version
GaBi version 1, 2024
Network
Wi-Fi
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 90%
Operating altitude
0 - 5000 m
Non-operating altitude
5000 - 12192 m
Packaging content
Stand included
Yes
Cables included
AC, DisplayPort, HDMI, USB Type-C to USB Type-C
Power adapter included
Yes
Remote control included
No
Stylus included
No
Quick start guide
Yes
Weight & dimensions
Width (with stand)
813.5 mm
Depth (with stand)
240.4 mm
Height (with stand)
542.8 mm
Weight (with stand)
7.78 kg
Width (without stand)
813.5 mm
Depth (without stand)
105.1 mm
Height (without stand)
359.1 mm
Weight (without stand)
10.4 kg
Bezel width (side)
9.78 mm
Bezel width (top)
1.04 cm
Bezel width (bottom)
1.39 cm
Packaging data
Package weight
15.1 kg
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, TCO
Doesn't contain
PVC/BFR
European Product Registry for Energy Labelling (EPREL) code
1777749
Other features
Ethernet LAN (RJ-45) ports
1
Technical details
Compliance certificates
RoHS
Information
| Part Number: | DELL-U3425WE |
