Product Details
Introduction

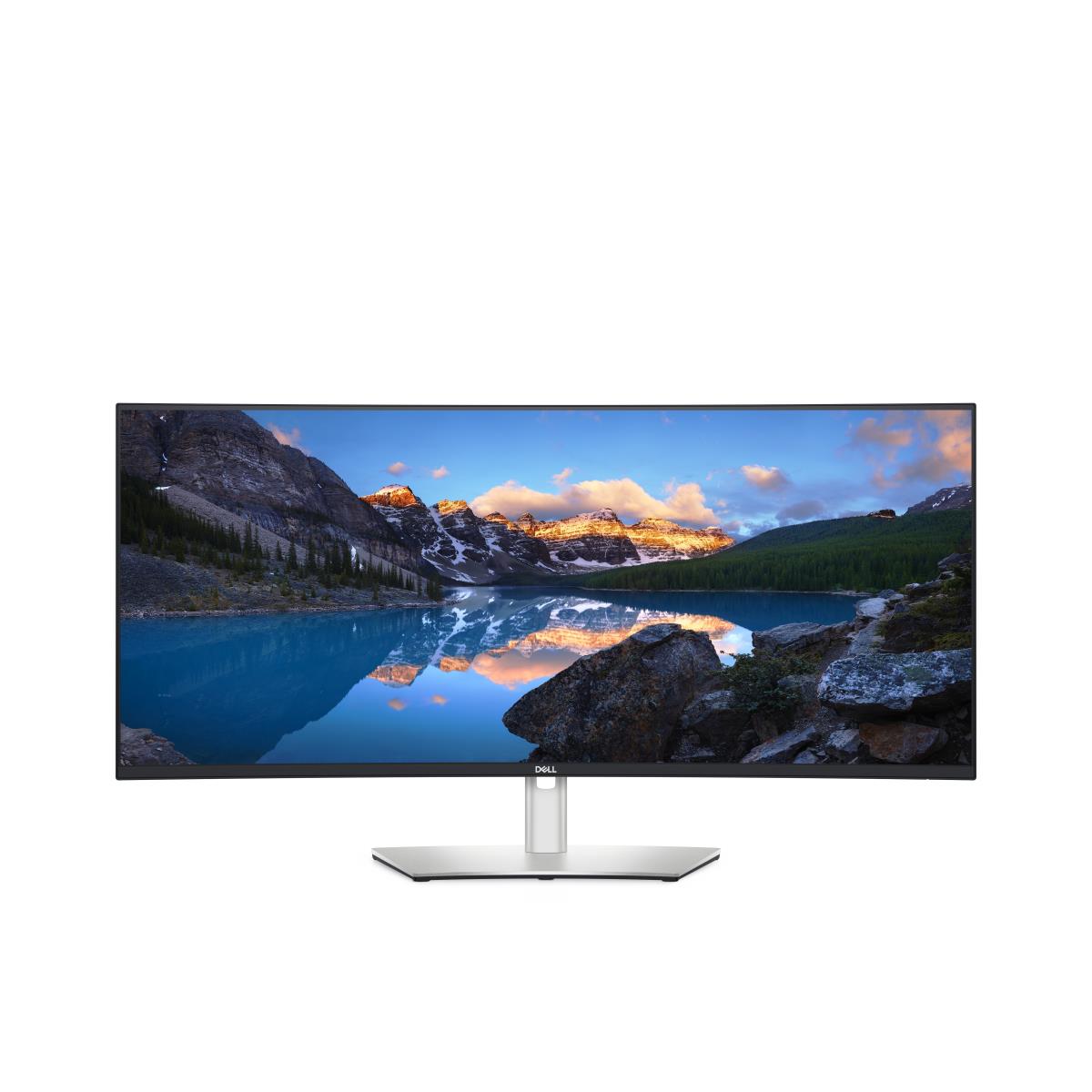

With its IPS Black panel technology and vast color coverage, this ultrawide WQHD+ curved screen monitor immerses you in a world that's as beautiful as it is practical.
Display
Display diagonal
95.2 cm (37.5")
Display resolution
3840 x 1600 pixels
HD type
Wide Quad HD+
Native aspect ratio
21:9
Display technology
LCD
Panel type
IPS
Backlight type
W-LED
Touchscreen
No
Display brightness (typical)
300 cd/m²
Response time
8 ms
Anti-glare screen
Yes
Screen shape
Curved
Screen curvature rating
2300R
Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 1200, 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 1600
Supported video modes
480p, 576p, 720p, 1080i, 1080p
Contrast ratio (typical)
2000:1
Maximum refresh rate
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Response time (fast)
5 ms
Pixel pitch
0.22908 x 0.22908 mm
Pixel density
110.87 ppi
Horizontal scan range
30 - 100 kHz
Vertical scan range
56 - 76 Hz
Viewable size, horizontal
88 cm
Viewable size, vertical
36.7 cm
Display diagonal (metric)
95.25 cm
Surface hardness
3H
RGB colour space
DCI-P3
Colour gamut
98%
sRGB coverage (typical)
100%
Heat dissipation (typical)
118.74 BTU/h
Performance
NVIDIA G-SYNC
No
AMD FreeSync
No
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Built-in speaker(s)
Yes
Built-in camera
No
Number of speakers
2
RMS rated power
18 W
Design
Market positioning
Office
Product colour
Black, Silver
Front bezel colour
Black
Feet colour
Silver
Heavy metals free
Hg (mercury)

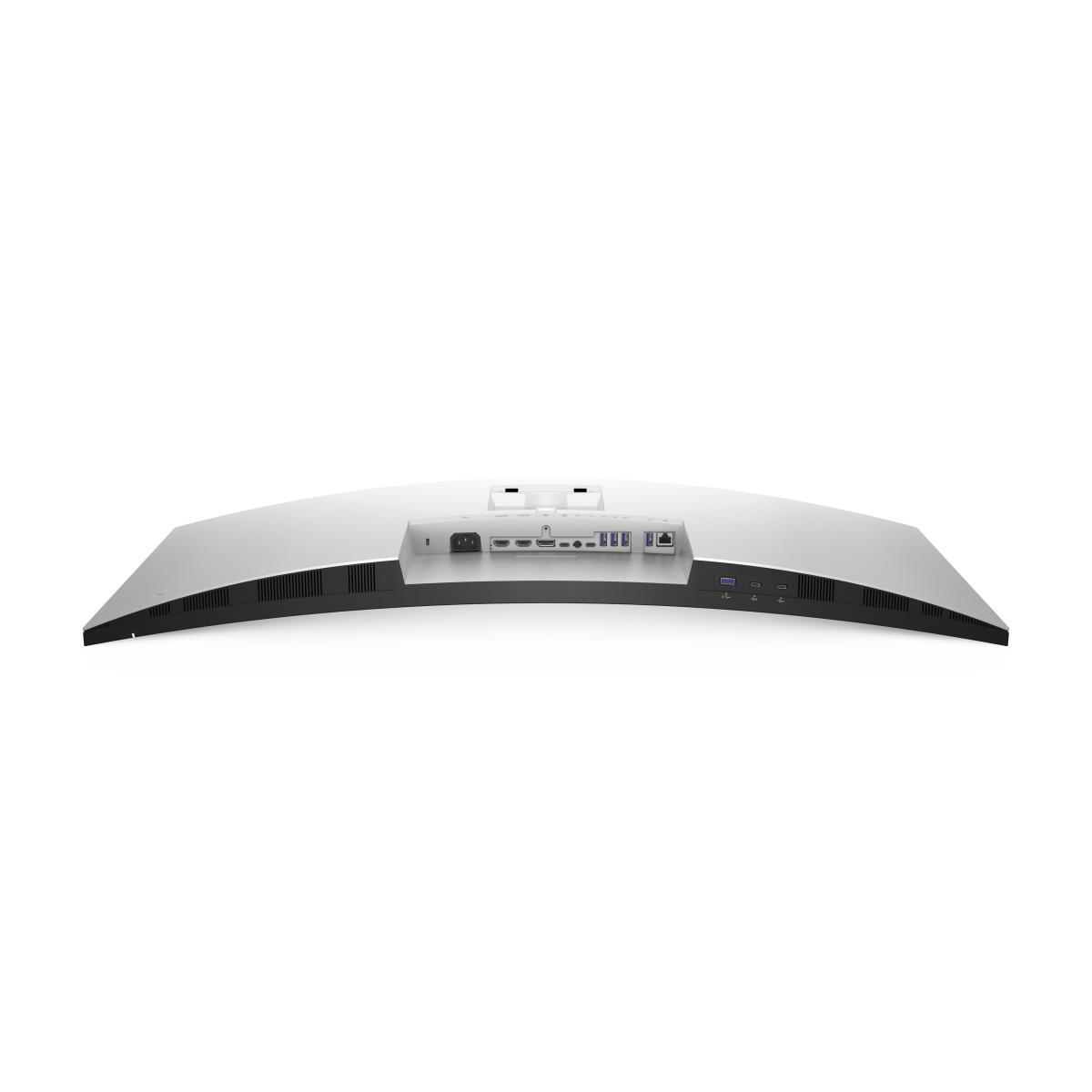

Ports & interfaces
Built-in USB hub
Yes
USB hub version
3.2 Gen 2 (3.1 Gen 2)
USB upstream port type
USB Type-C
Number of USB Type-C upstream ports quantity
2
USB Type-A downstream ports quantity
5
USB Type-C downstream ports quantity
2
USB Type-C DisplayPort Alternate Mode
Yes
USB Power Delivery
Yes
USB Power Delivery up to
90 W
HDMI
Yes
HDMI ports quantity
2
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Audio output
Yes
Headphone out
No
Microphone in
No
PC Audio in
No
Built-in KVM switch
Yes
HDCP
Yes
HDCP version
1.4
Network
Wi-Fi
No
Ergonomics
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes
Height adjustment
12 cm
Pivot
No
Swivelling
Yes

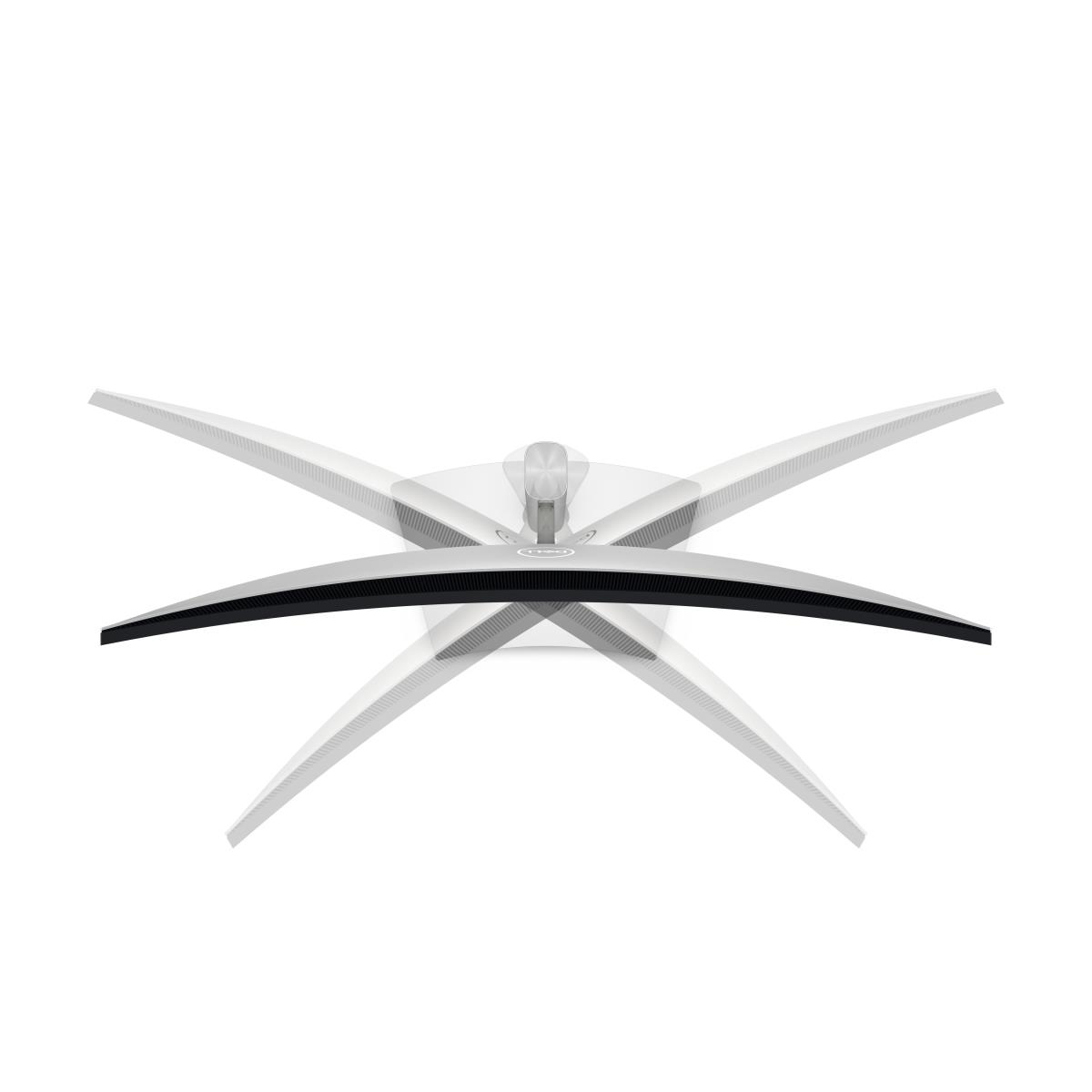

Swivel angle range
-30 - 30°

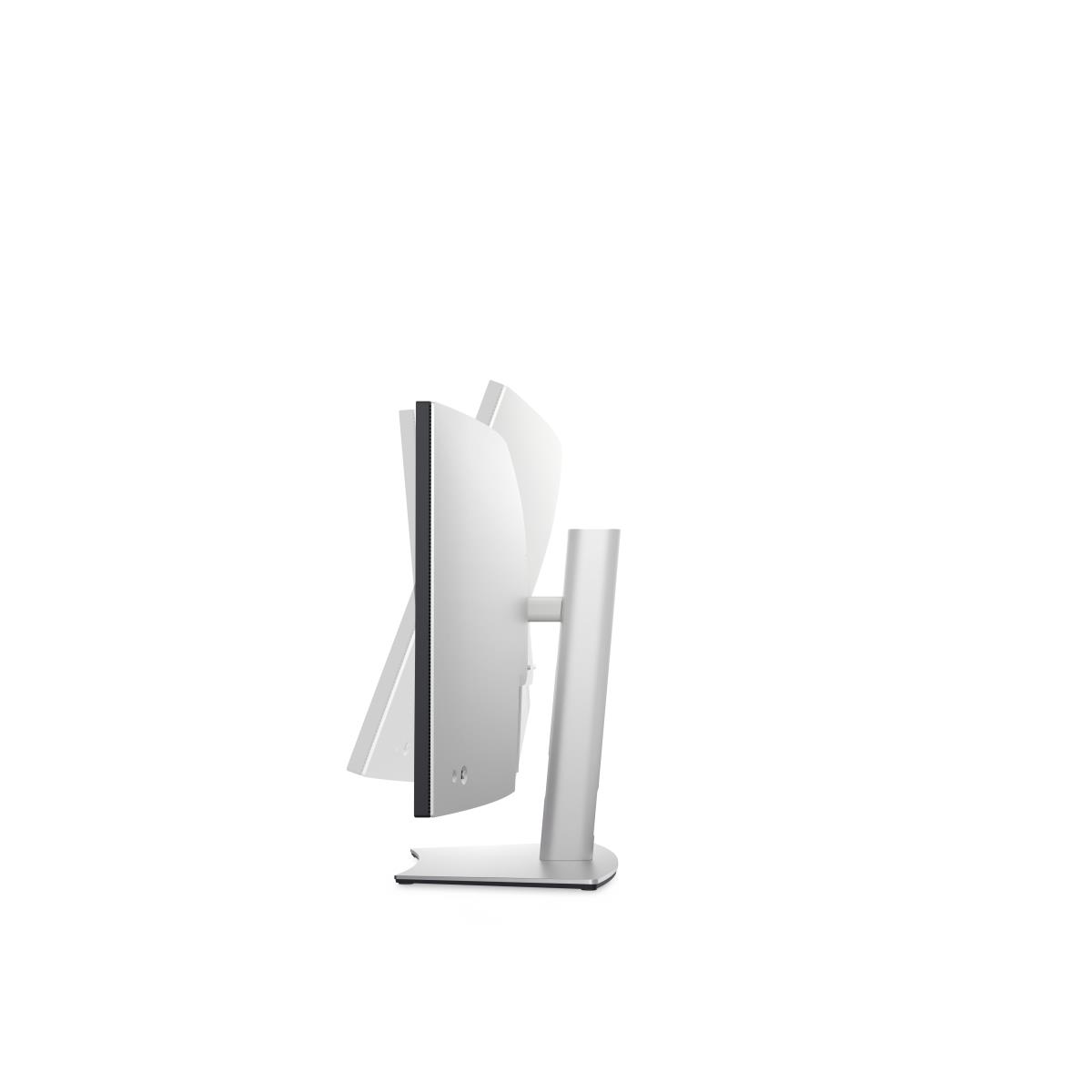

Tilt angle range
-5 - 21°
On Screen Display (OSD)
Yes
LED indicators
Yes
Tilt adjustment
Yes
Power
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
35 kWh
Power consumption (typical)
34.8 W
Power consumption (standby)
0.4 W
Power consumption (max)
245 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
3.2 A
Power supply type
Internal
Energy efficiency scale
A to G
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 80%
Storage relative humidity (H-H)
5 - 90%
Operating altitude
0 - 5000 m
Non-operating altitude
0 - 12192 m
Packaging content
Stand included
Yes
Cables included
AC, DisplayPort, HDMI, USB Type-C, USB Type-C to USB Type-A
Power adapter included
Yes
Remote control included
No
Stylus included
No
Quick start guide
Yes
DisplayPort cable length
1.8 m
HDMI cable length
1.8 m
Weight & dimensions
Width (with stand)
894.3 mm
Depth (with stand)
251.2 mm
Height (with stand)
443.8 mm
Weight (with stand)
12.8 kg
Width (without stand)
894.3 mm
Depth (without stand)
102.3 mm
Height (without stand)
392.3 mm
Weight (without stand)
8.79 kg
Bezel width (side)
9.97 mm
Bezel width (top)
1.05 cm
Bezel width (bottom)
1.53 cm
Packaging data
Package weight
19 kg
Sustainability
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, RoHS, TCO
Doesn't contain
Arsenic, PVC/BFR
European Product Registry for Energy Labelling (EPREL) code
1361189
Brand-specific features
Dell Display Manager (DDM) compatibility
Yes
Other features
Picture-by-Picture (PbP)
Yes
Maximum resolution
3840 x 1600 pixels
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Ethernet LAN (RJ-45) ports
1
Carbon footprint
Total carbon footprint (kg of CO2e)
906
Total carbon emissions, standard deviation (kg of CO2e)
232
Carbon emissions, manufacturing (kg of CO2e)
486.2
Carbon emissions, logistics (kg of CO2e)
105
Carbon emissions, energy usage (kg of CO2e)
302
Carbon emissions, end-of-life (kg of CO2e)
12.3
Total carbon emissions, w/o use phase (kg of CO2e)
604
PAIA version
1.3.2 2022
Technical details
Compliance certificates
RoHS
Information
| Part Number: | DELL-U3824DW |
