Product Details
Introduction

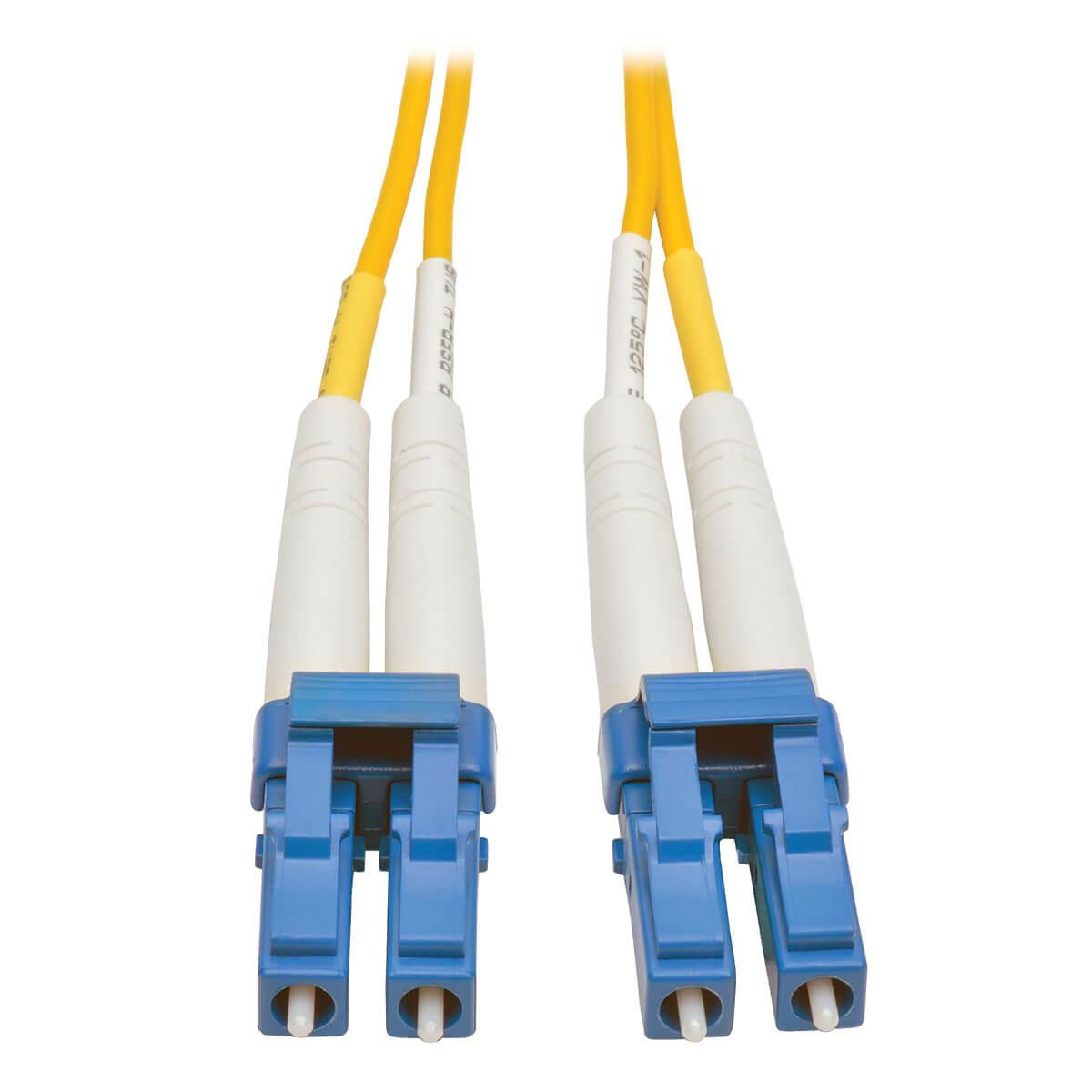

Manufactured from 9/125 duplex (zipcord) fiber
PVC jacket
Length: 3-meter ( 10ft ) Connectors: 2 LC and 2 LC connectors on each end
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)
Features
Connector polish type
UPC
Fibre optic type
OS2
Ethernet interface type
10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet
Data transfer rate
400 Gbit/s
Insertion loss
0.3 dB
Cable length
3 m
Connector 1
LC
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Cable type
OFNR
Product colour
Yellow
Core diameter
8.3 µm
Cladding diameter
125 µm
Fiber mode structure
Single-mode
Jacket material
Polyvinyl chloride (PVC)
Country of origin
China
Harmonized System (HS) code
8544.70.0000
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 60 °C
Technical details
Master (outer) case GTIN (EAN/UPC)
10037332099591
Packaging data
Package width
177.8 mm
Package depth
12.7 mm
Package height
228.6 mm
Package weight
40 g
Logistics data
Master (outer) case width
149.9 mm
Master (outer) case length
101.6 mm
Master (outer) case height
185.4 mm
Master (outer) case gross weight
410 g
Products per master (outer) case
10 pc(s)
Other features
Number of optical fibres
4
Information
| Part Number: | N370-03M |
