Product Details
Introduction

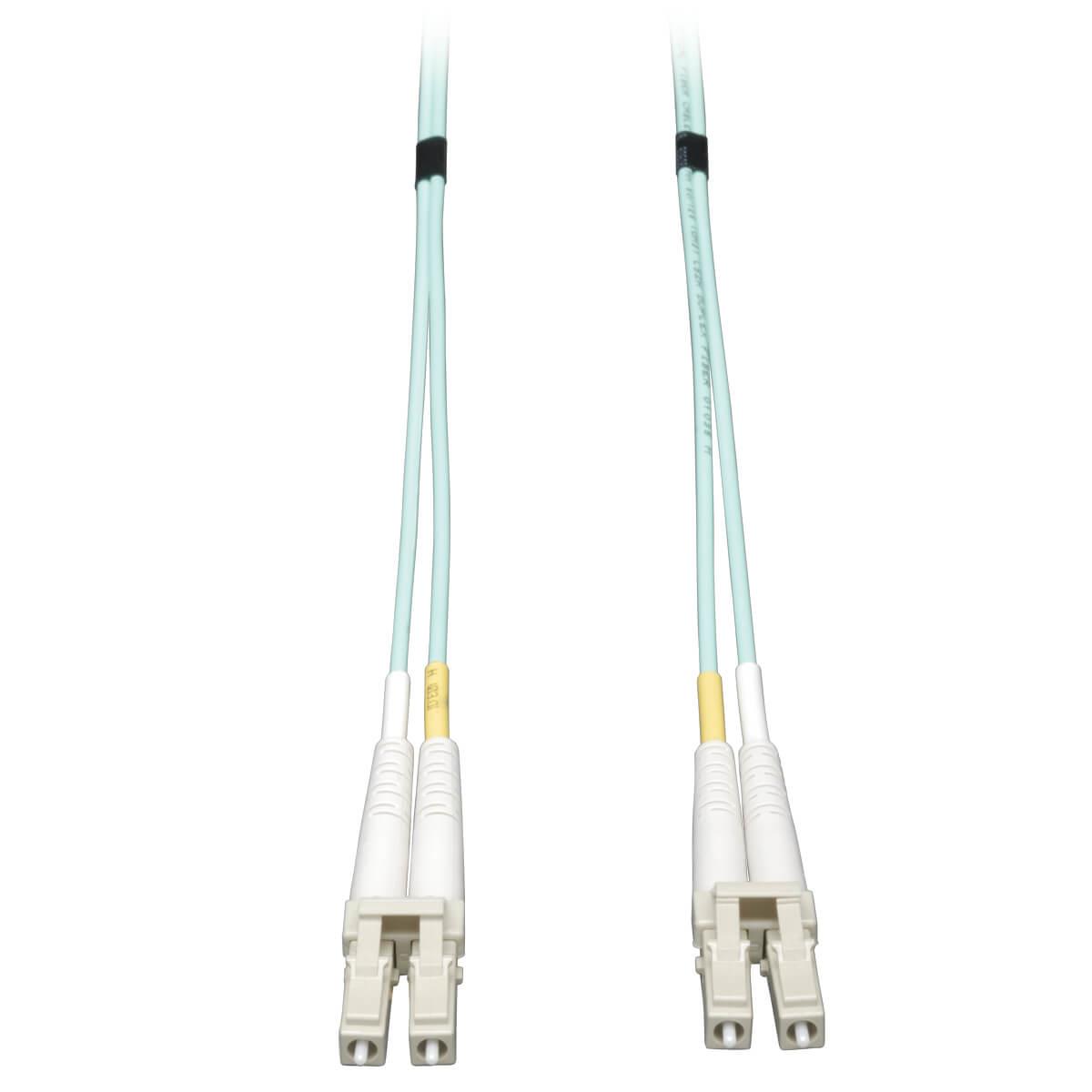

10 Meter ( 33ft ) LC/LC, OM3 Rated
10gb Ethernet speed to 300 meters @850nm
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant
Technical details
Compliance certificates
RoHS
Sustainability certificates
RoHS
Master (outer) case GTIN (EAN/UPC)
10037332124880
Features
Cable length
10 m
Connector 1
LC
Connector 2
LC
Connector 1 gender
Male
Connector 2 gender
Male
Fibre optic type
OM3
Product colour
Blue
Full duplex
Y
Core diameter
50 µm
Cladding diameter
125 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850 nm
Data transfer rate
10 Gbit/s
Jacket material
Low smoke zero halogen (LSZH)
Country of origin
China
Harmonized System (HS) code
8544.70.0000
Packaging data
Package width
177.8 mm
Package depth
12.7 mm
Package height
228.6 mm
Package weight
80 g
Logistics data
Master (outer) case width
154.9 mm
Master (outer) case length
149.9 mm
Master (outer) case height
185.4 mm
Master (outer) case gross weight
870 g
Products per master (outer) case
10 pc(s)
Other features
Core / cladding diameter
50/125 µm
Information
| Part Number: | N820-10M |
