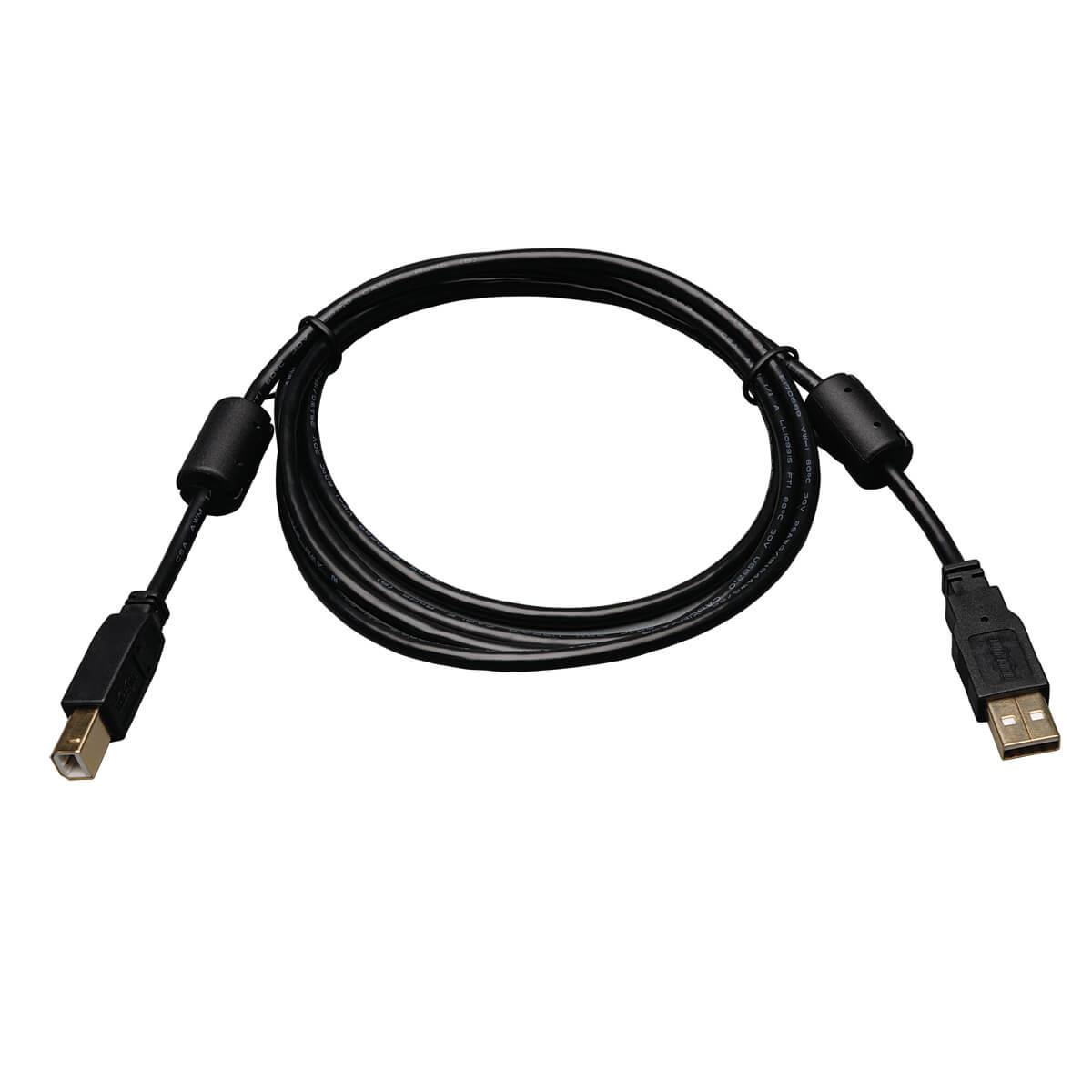

Product Details
Introduction
USB 2.0 certified
Supports faster data transfer rate (1.5 to 480 Mbps) for low speed and high speed devices including multimedia applications
Premium double-shielded cables with tinned copper braid and aluminum Mylar foil, Ferrite chokes
Gold plated connectors and gold plated copper contacts for superior conductivity.
Molded connectors and integral strain relief for extra durability and long life.
Features
Maximum data transfer rate
0.48 Gbit/s
Cable length
1.83 m
USB version
USB 2.0
Connector 1
USB A
Connector 2
USB B
Connector gender
Male/Male
Connector 1 gender
Male
Connector 2 gender
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
28/24
Connector contacts plating
Gold
Cable shielding
Aluminum mylar foil
Ferrite bead
Y
Maximum data transfer rate
480 Mbit/s
Product colour
Black
Country of origin
China
Technical details
Compliance certificates
RoHS
Harmonized System (HS) code
84733080
Sustainability certificates
RoHS
Packaging data
Package width
177.8 mm
Package depth
12.7 mm
Package height
228.6 mm
Package weight
90 g
Logistics data
Master (outer) case width
406.4 mm
Master (outer) case length
25.4 mm
Master (outer) case height
457.2 mm
Master (outer) case gross weight
970 g
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332156621
Information
| Part Number: | U023-006 |
