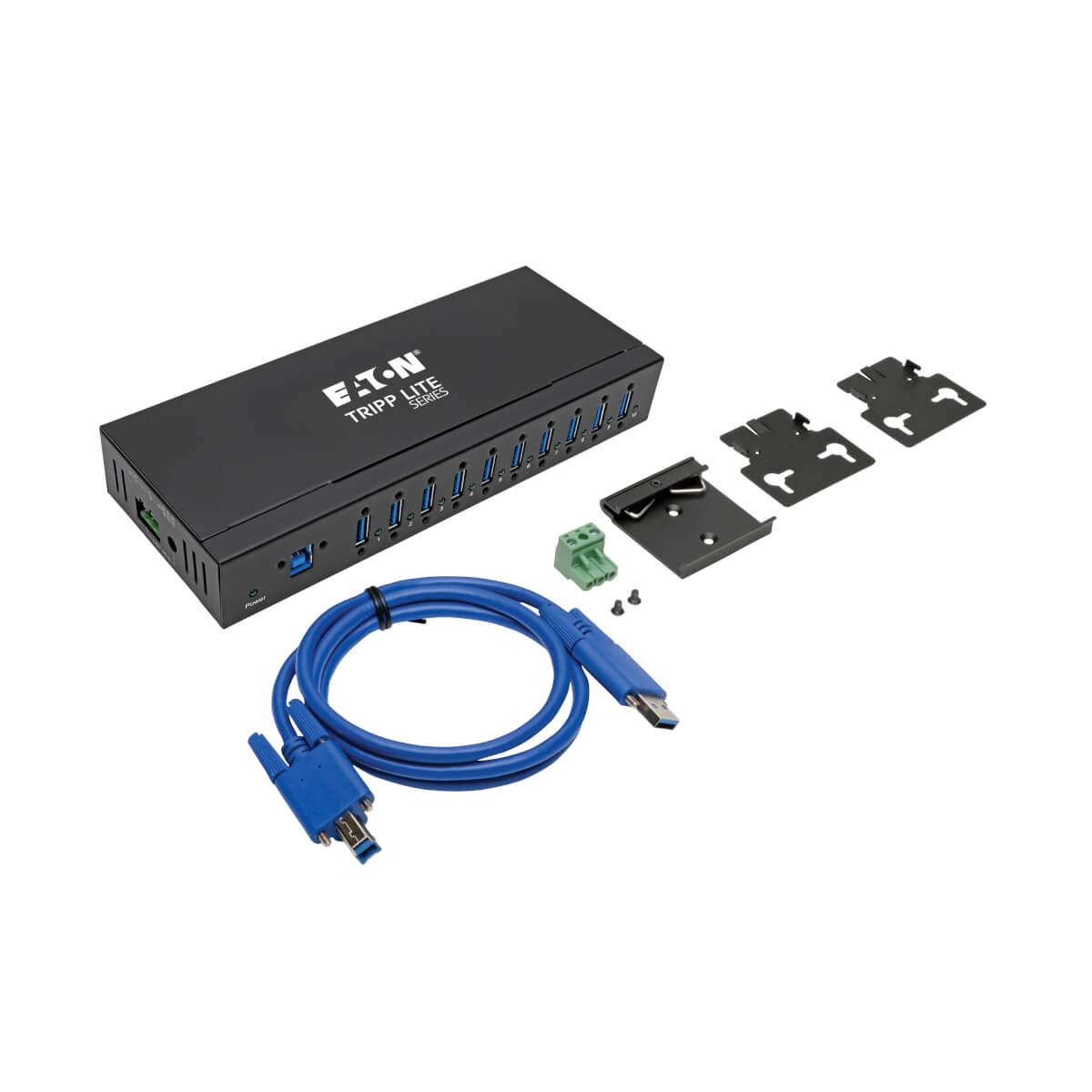

EATON CORPORATION 10-PORT INDUSTRIAL-GRADE USB3.0 HUB 20 KV ESD IMMUNITY MOUNTABLE

EATON CORPORATION 10-PORT INDUSTRIAL-GRADE USB3.0 HUB 20 KV ESD IMMUNITY MOUNTABLE

£173.05 (incl. VAT)

Qty:

Add to basket

Part Number:	U360-010-IND
	In Stock
	Delivery: 1 - 2 days

Product Details

Introduction

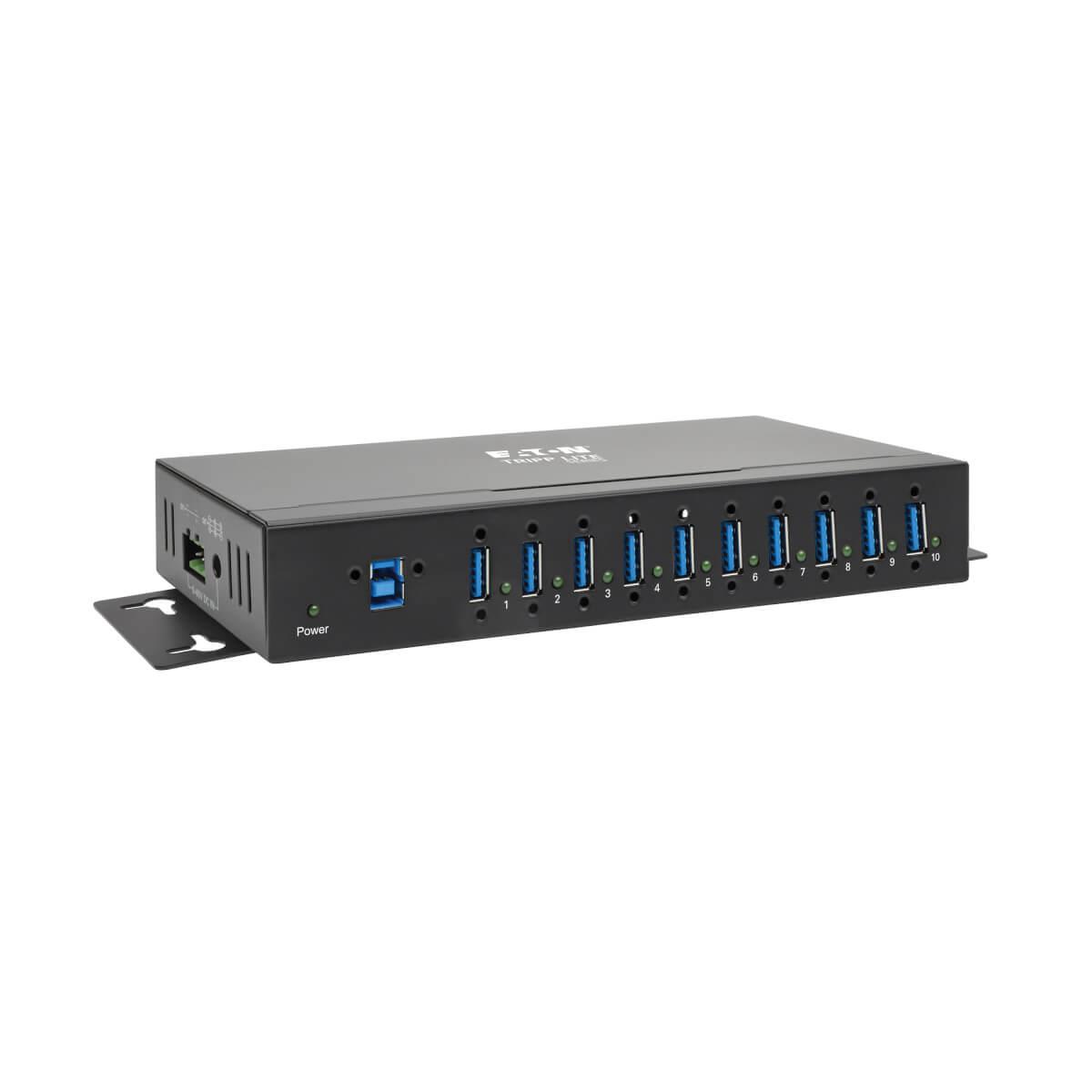

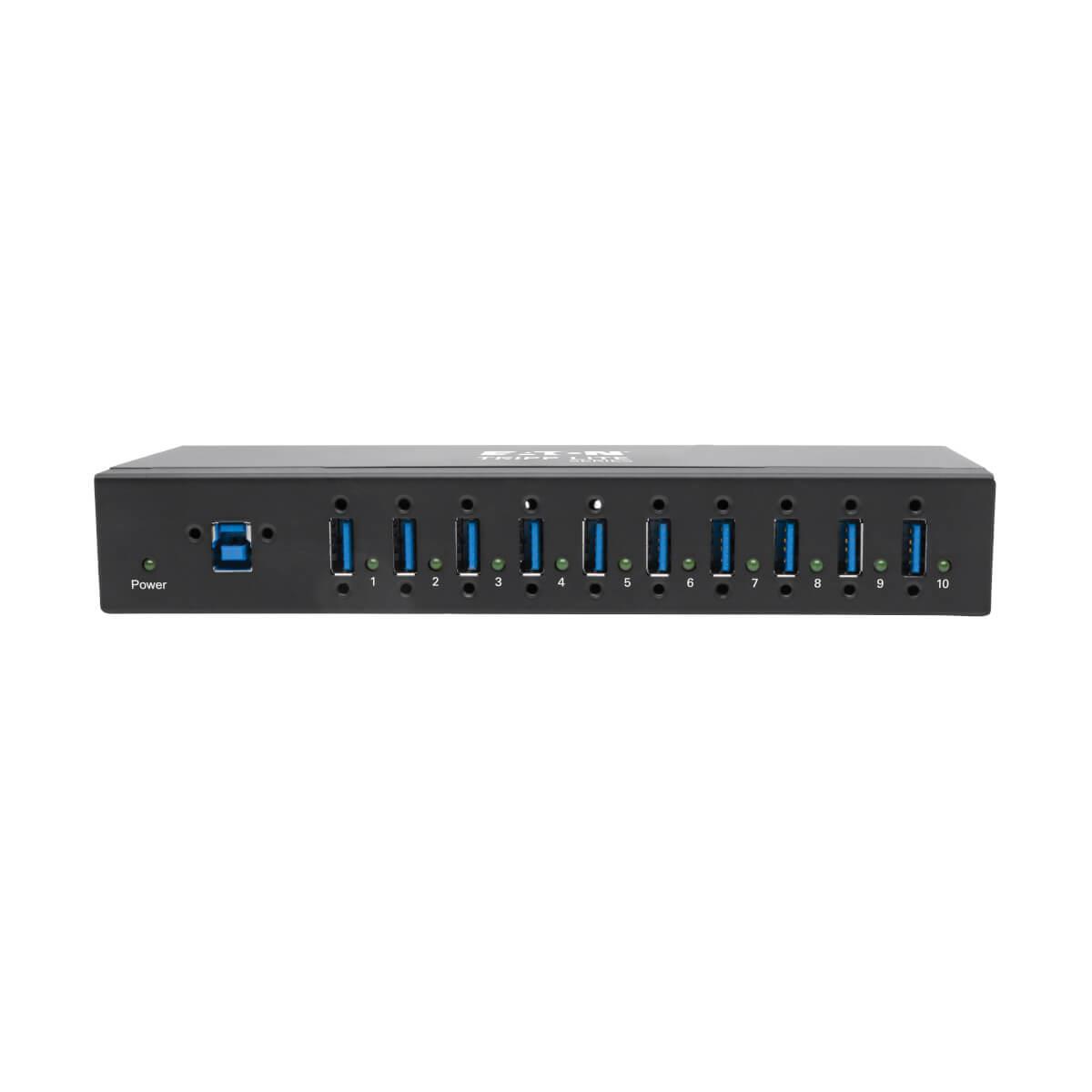

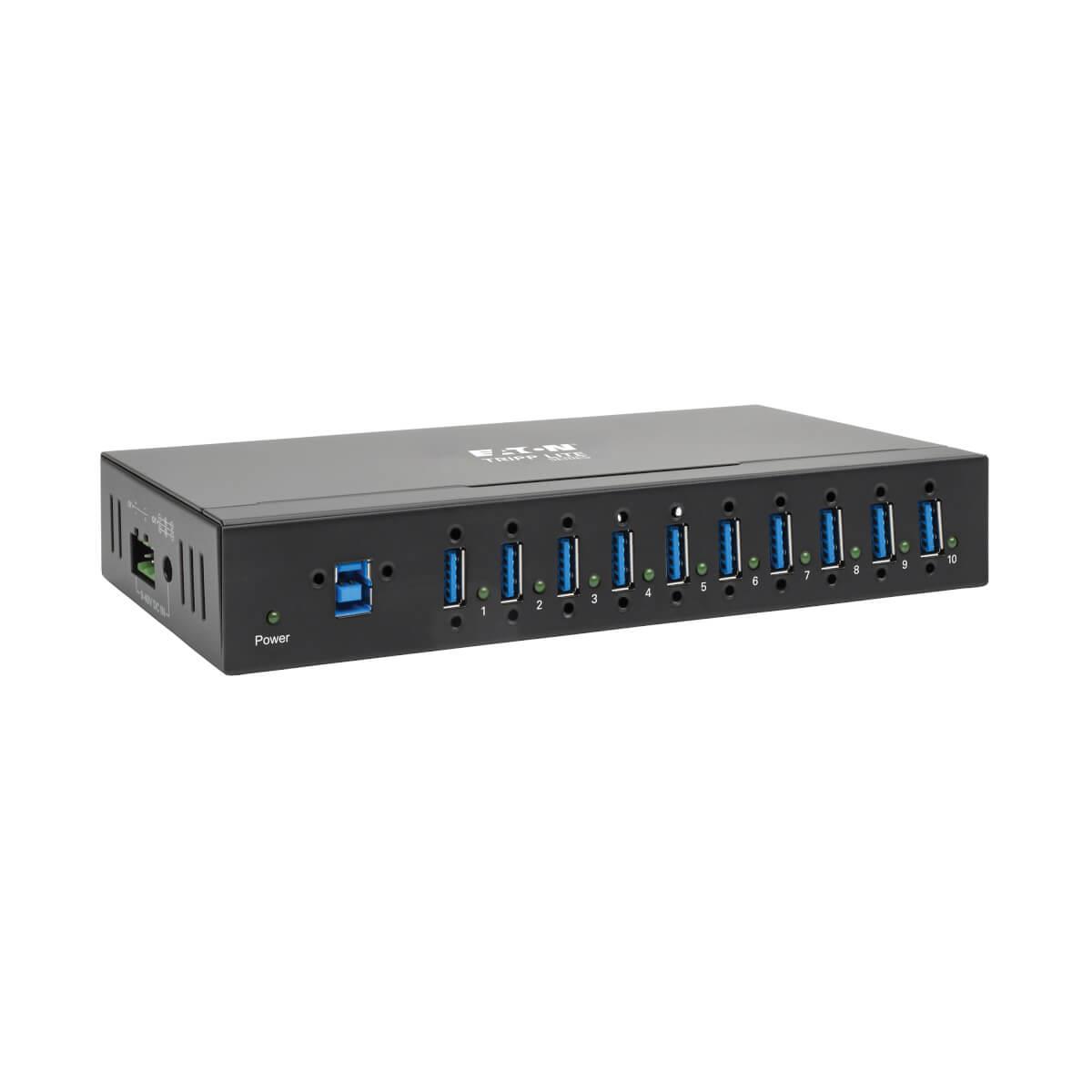

Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

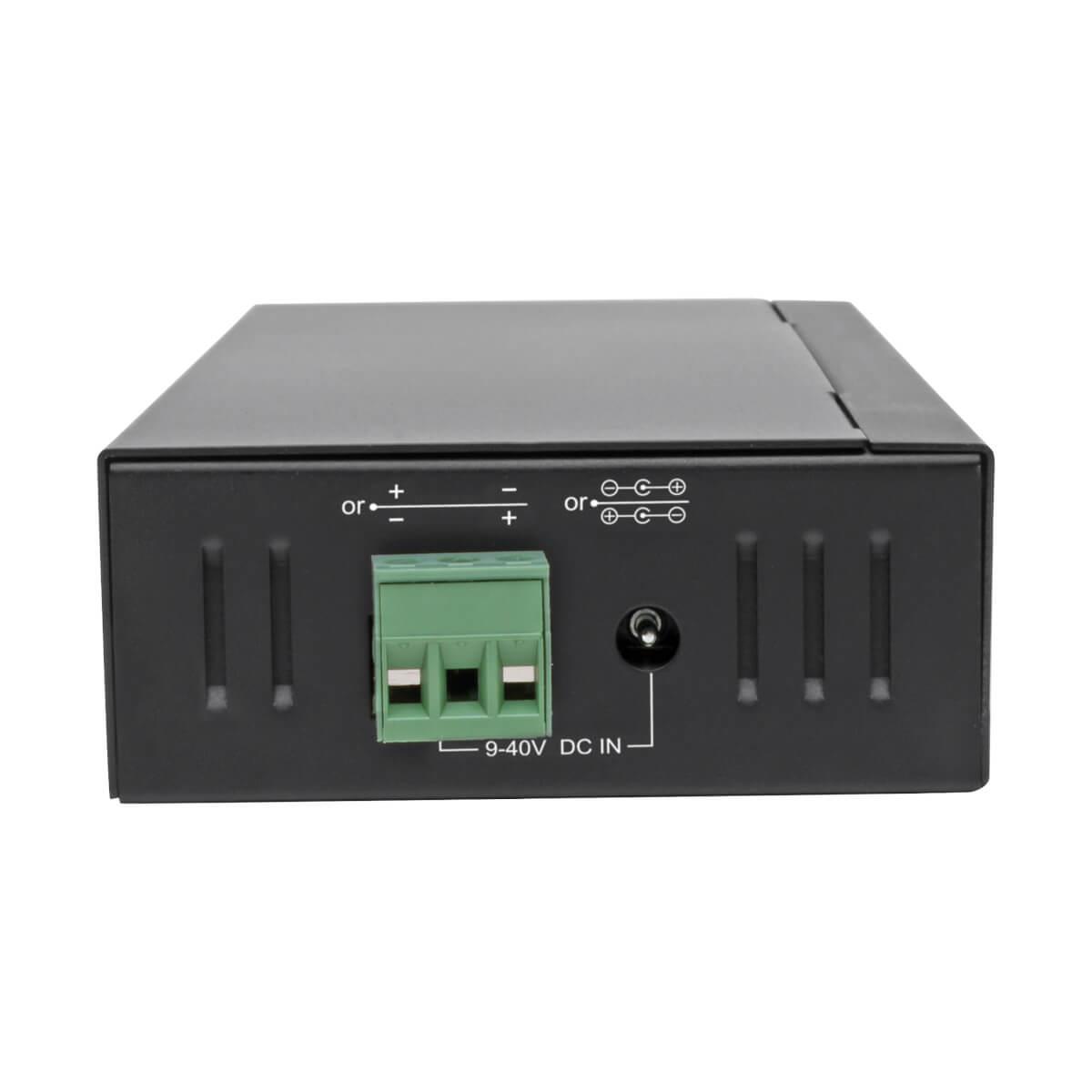

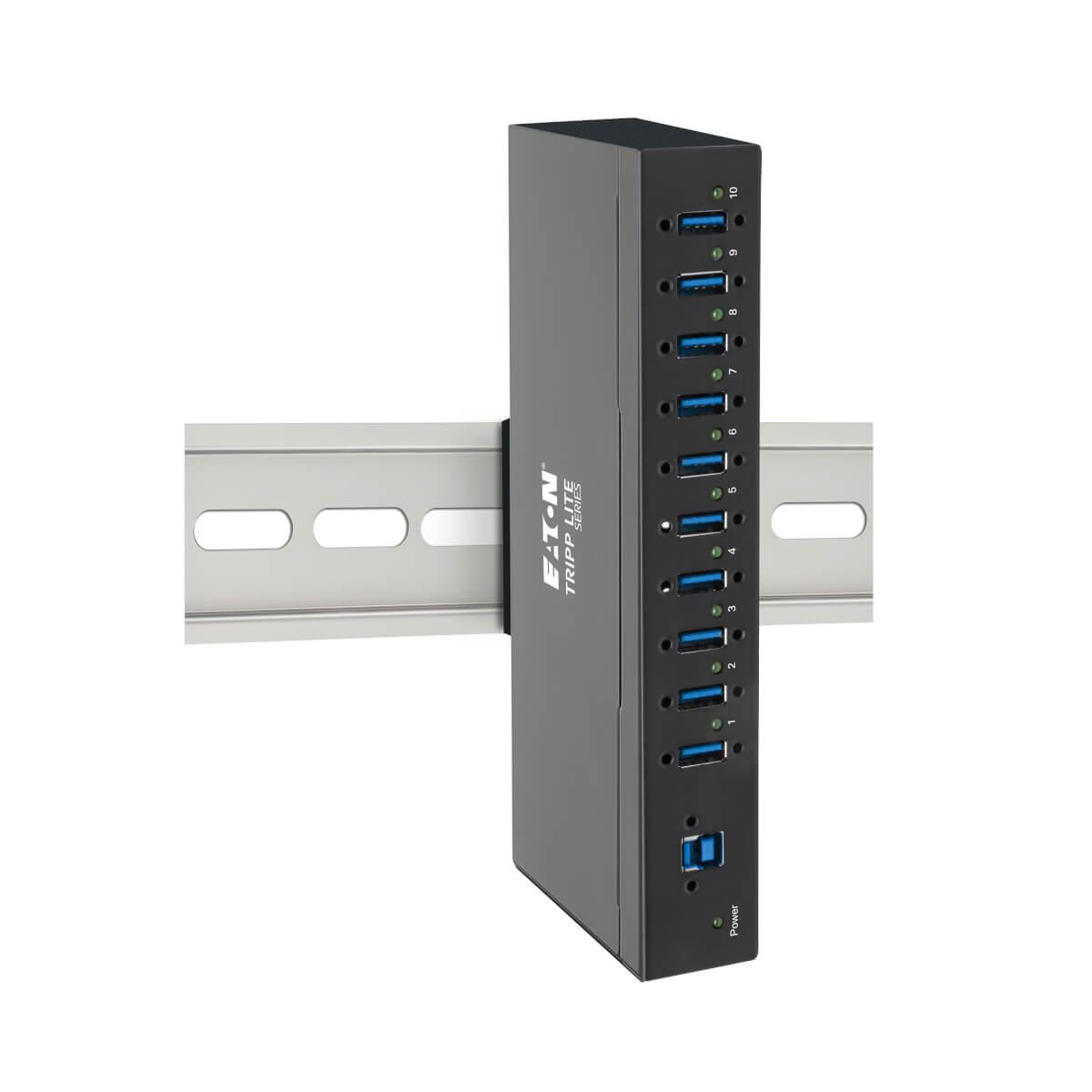

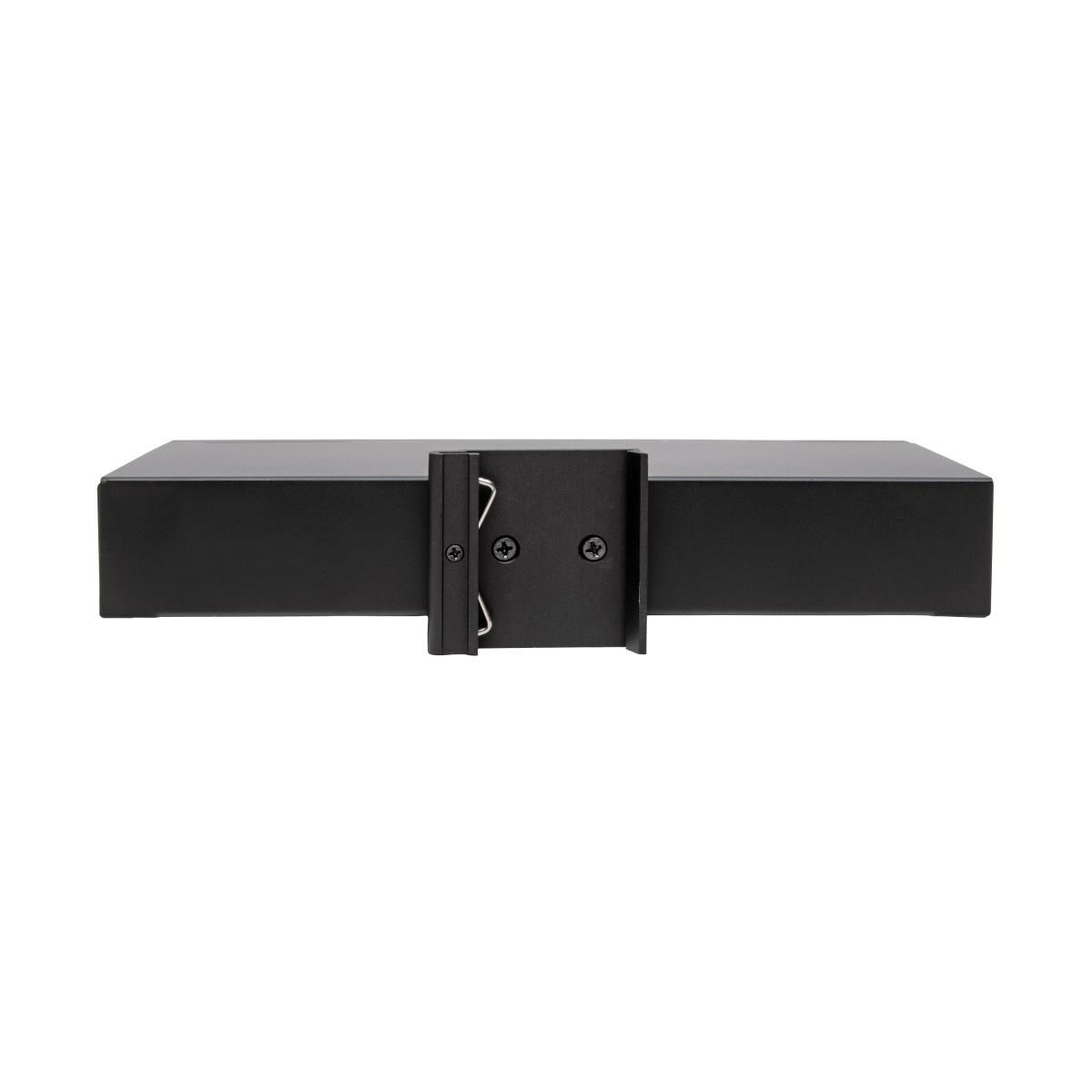

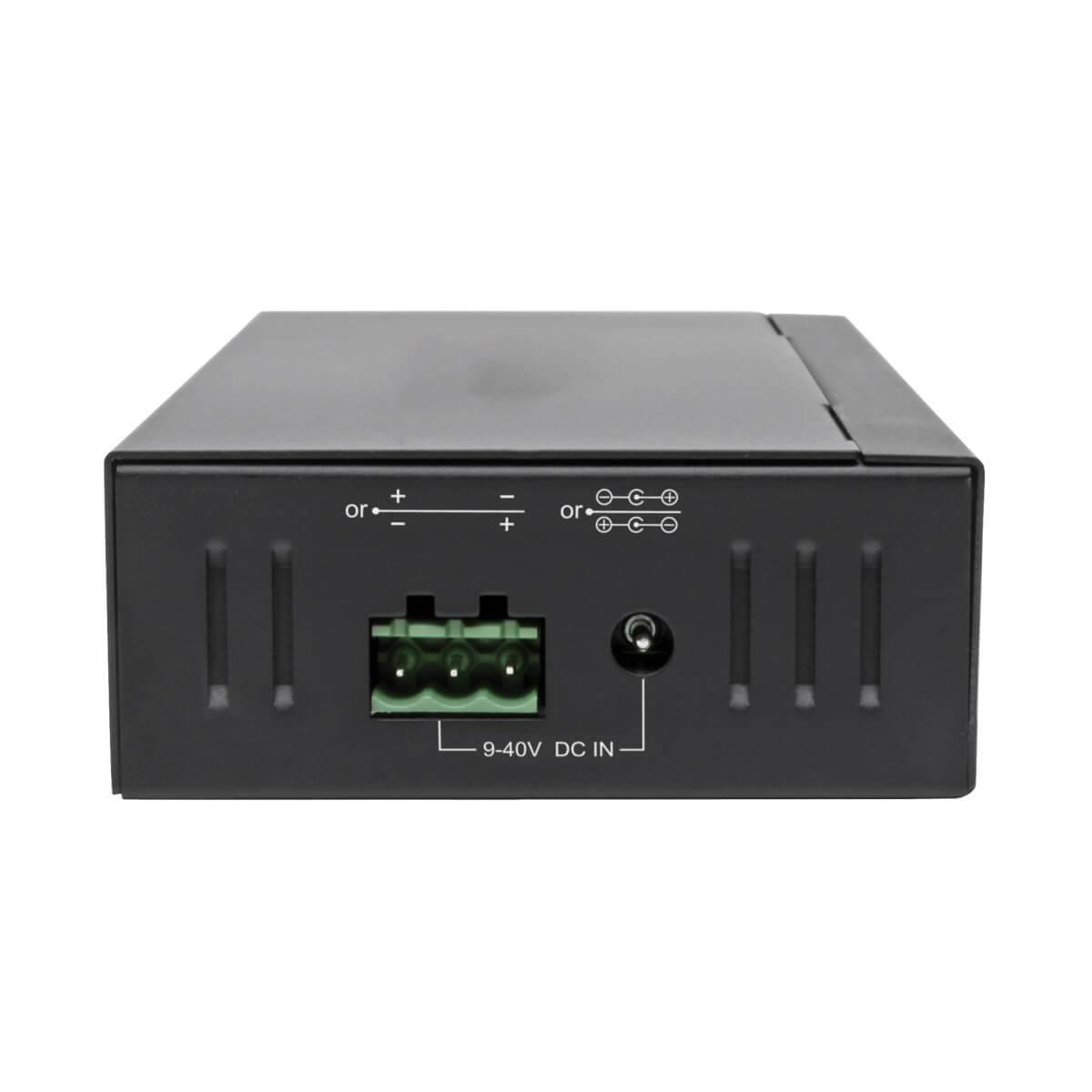

The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9-40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

Ports & interfaces

Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 10

Ports quantity 10

Terminal block port Y

Features

Data transfer rate 5000 Mbit/s

Product colour Black

Housing material SGCC

Overcurrent protection Y

LED indicators Y

Plug and Play Y

Country of origin Malaysia

Certification CE, FCC, RoHS, REACH

Power

Power consumption (max) 51.3 W

Input voltage 100 - 240 V

Input current 0.6 A

AC input frequency 50 - 60 Hz

Output voltage 9 - 40 V

Output current 3 A

USB charging port Y

Weight & dimensions

Width 201 mm

Depth 81 mm

Height 33 mm

Weight 430 g

Packaging data

Package width 114.3 mm

Package depth 228.6 mm

Package height 66 mm

Package weight 640 g

Package type Box

Packaging content

Cables included USB

Wall mounting kit Y

Manual Y

Terminal block included Y

DIN rail kit included Y

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating temperature (T-T) 32 - 104 °F

Storage temperature (T-T) -10 - 55 °C

Operating relative humidity (H-H) 5 - 90%

Performance

Harmonized System (HS) code 8517.62.0090

Logistics data

Master (outer) case width 246.4 mm

Master (outer) case length 350.5 mm

Master (outer) case height 256.5 mm

Master (outer) case gross weight 6.94 kg

Products per master (outer) case 10 pc(s)

Master (outer) case GTIN (EAN/UPC) 10037332231243
