Product Details
Features
UPS topology
Standby (Offline)
Output power capacity
0.7 kVA
Output power
420 W
Waveform
Stepwise
Input operation voltage (min)
161 V
Input operation voltage (max)
284 V
Input frequency
46/70 Hz
Output operation voltage (min)
161 V
Output operation voltage (max)
284 V
Output frequency
50/60 Hz
Power consumption (average operating)
13 W
Number of input phases
1
Number of output phases
1
Efficiency
97%
Efficiency (ECO mode)
97%
Output power factor
0.6
Noise level
25 dB
Surge protection
Yes
Auto shut-off
Yes
Ports & interfaces

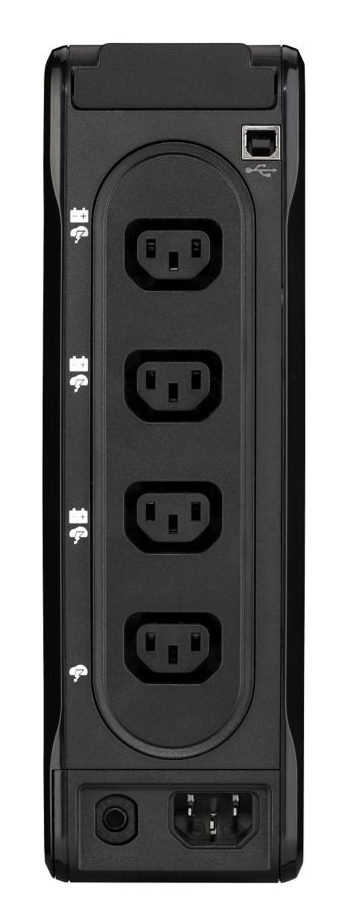

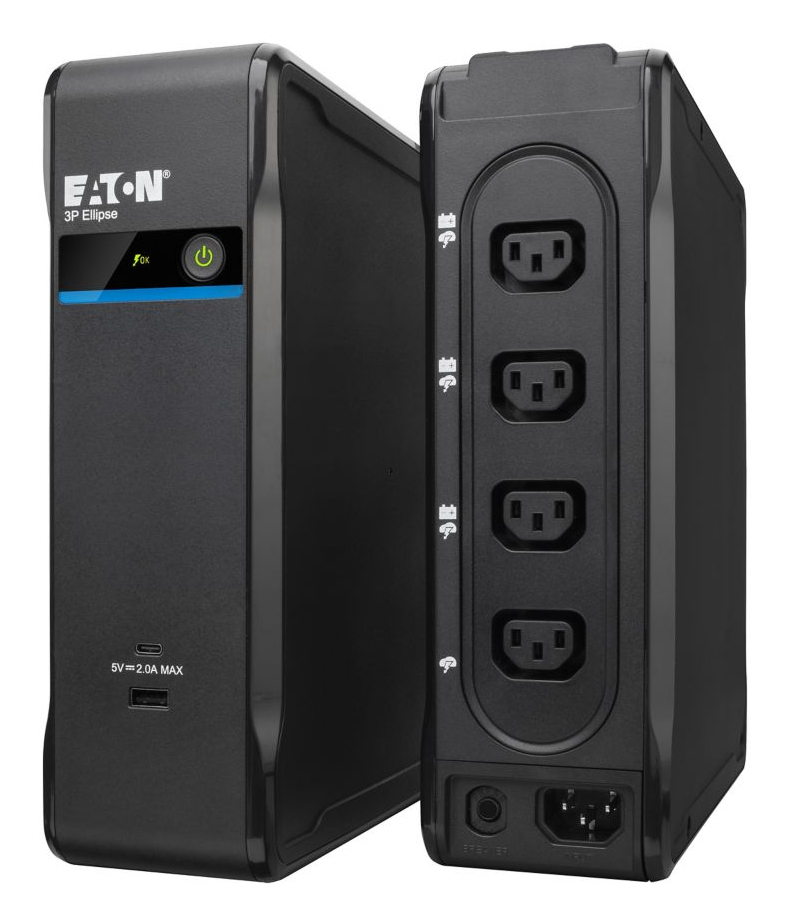

AC outlet types
C3 coupler
AC outlets quantity
4 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
2
USB port type
USB Type A/USB Type-C
Ethernet LAN (RJ-45) ports
1

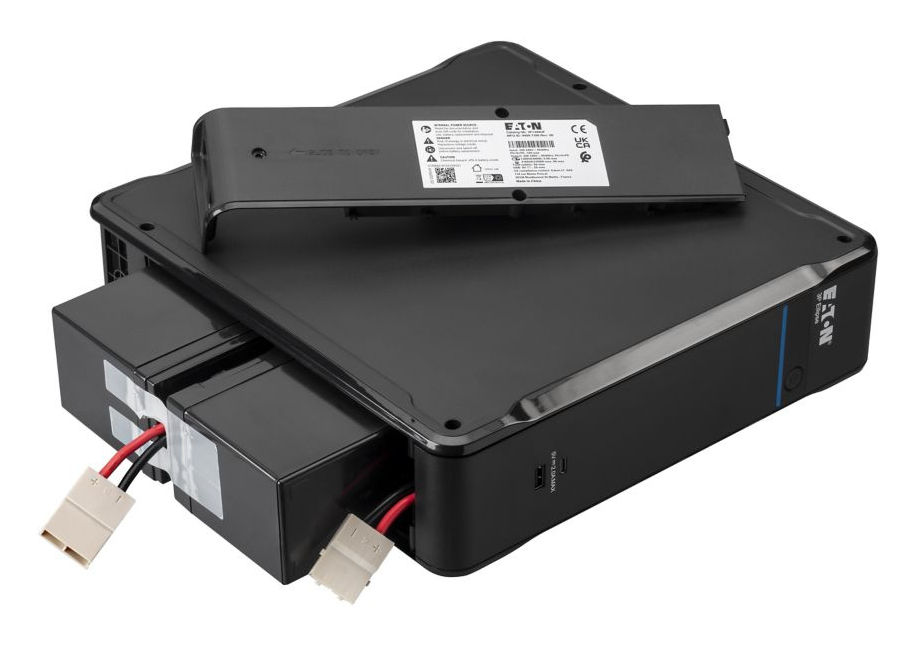

Battery
Battery capacity
7 Ah
Battery voltage
12 V
Design

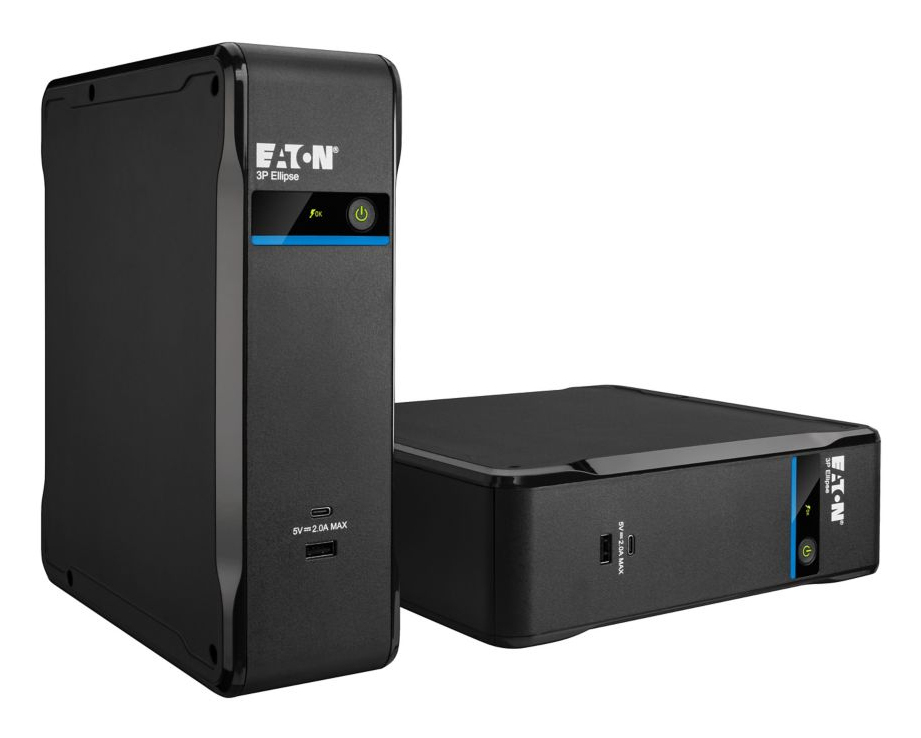

Form factor
Tower
Product colour
Black

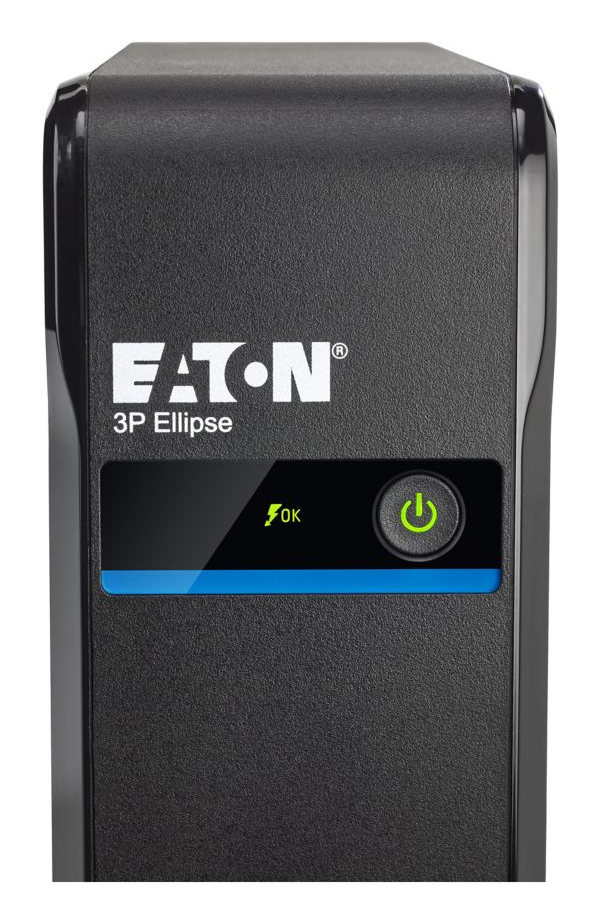

Display type
LED
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CB, CE, RoHS, WEEE
Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
CE
UKCA
Ukr
Cm

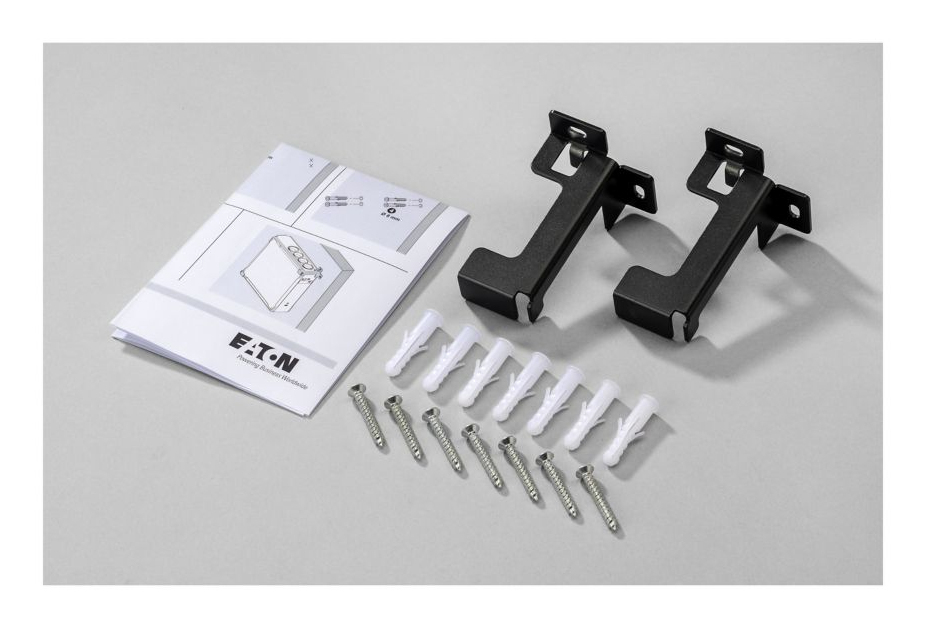

Packaging content
Cables included
USB cable
Quick installation guide
Yes
Weight & dimensions
Width
81 mm
Depth
235 mm
Height
263 mm
Weight
3.9 kg
Packaging data
Package type
Box
Other features
Input connection type
C14
Nominal input voltage
220-240 V
Relative humidity
0 - 95%
Information
| Part Number: | 3P700UI |
