Product Details
Introduction

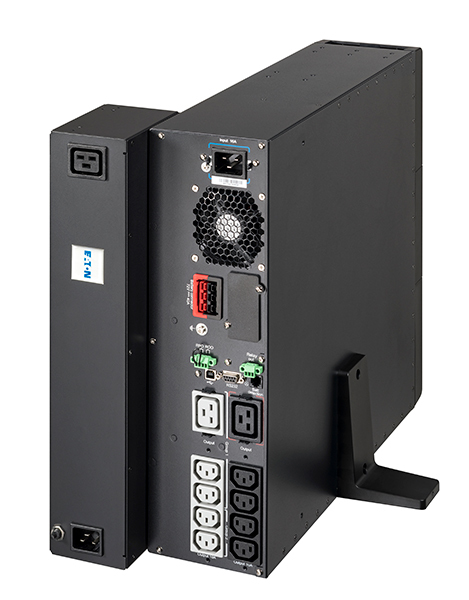

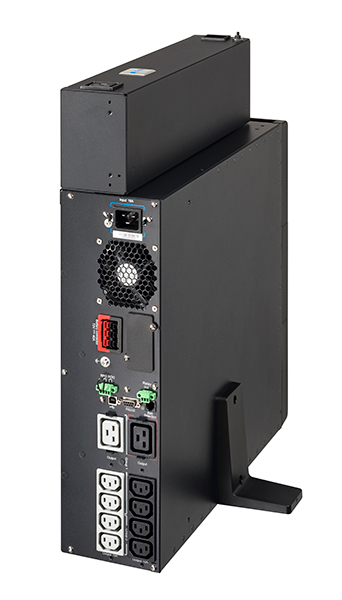

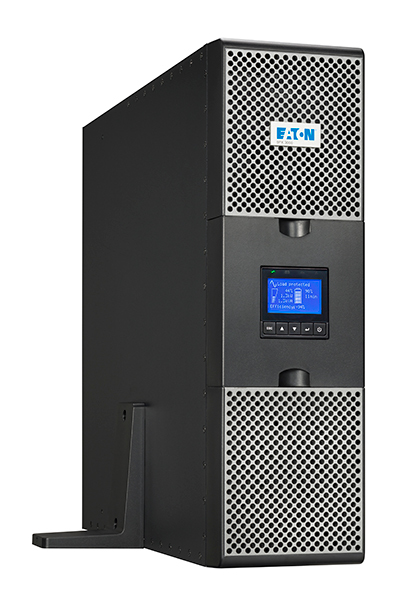

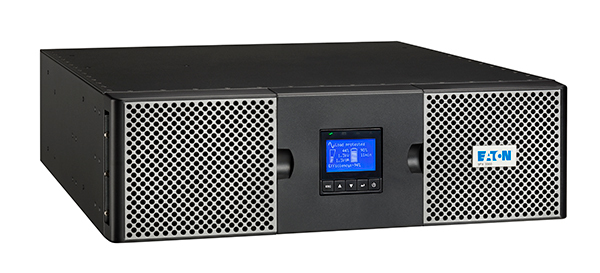

The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.
Technical details
Harmonized System (HS) code
85078000
Sustainability certificates
ENERGY STAR
Features
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
3000 W
Waveform
Pure sine
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Number of input phases
1
Efficiency
0.94%
Power factor
1
Noise level
40 dB
Ports & interfaces
AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
10 AC outlet(s)
USB port
Y
USB 2.0 ports quantity
1
Serial interface
Y
Serial interface type
RS-232
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
9.5 min
Hot-swap battery
Y
Automatic battery test
Y
Design
Form factor
Rackmount/Tower
Rack capacity
3U
Product colour
Black
Display type
LCD
LED indicators
Y
Safety
IEC/EN 62040-1, UL 1778, CSA 22.2
Certification
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
440 mm
Depth
485 mm
Height
130 mm
Weight
27.4 kg
Packaging data
Rack mount kit
Y
Management card included
N
Bundled software
Intelligent Power Software suite
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Information
| Part Number: | 9PX3000IRTM |
