Product Details
Introduction

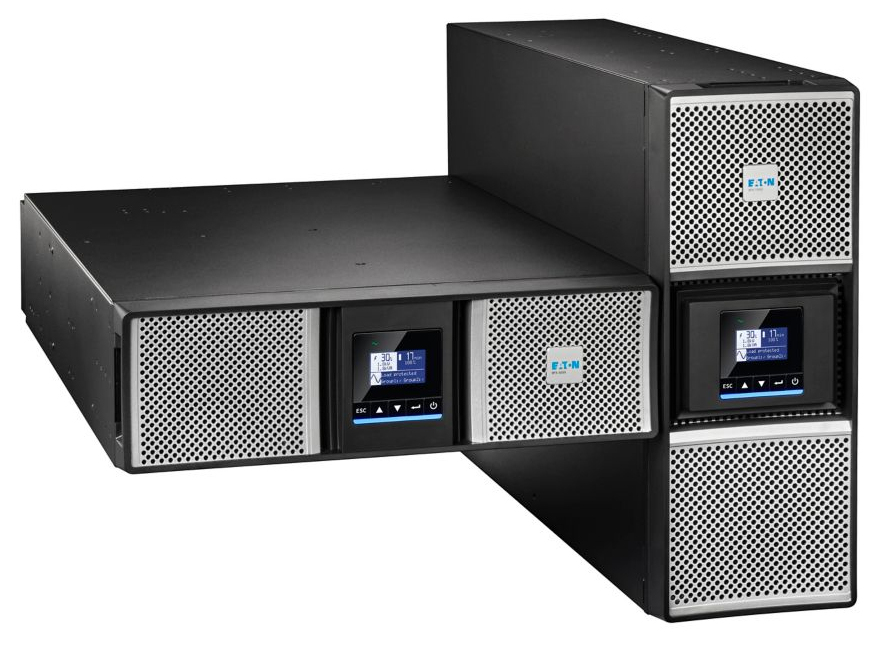

Eaton 9PX Gen2 UPS HotSwap Netpack, 6000 VA, 6000 W, Input: Hardwired, Outputs: (2) C13, (3) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included, Maintenance bypass included
Features
UPS topology
Double-conversion (Online)
Output power capacity
6 kVA
Output power
6000 W
Waveform
Pure sine
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Efficiency
0.965%
Power factor
0.99
Noise level
40 dB
Ports & interfaces
AC outlet types
C13 coupler, Terminal
Power plug
Terminal
USB port
Yes
USB 2.0 ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
5 Ah
Battery voltage
12 V
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Form factor
Rackmount/Tower
Rack capacity
3U
Product colour
Black, Silver
Control type
Buttons
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 95%
Certificates
Compliance certificates
CE, UKCA, cULus
Certification
IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM
Packaging content
Rack mount kit
Yes
Cables included
USB cable
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
440 mm
Depth
684 mm
Height
130 mm
Weight
45.1 kg
Packaging data
Management card included
Yes
Bundled software
Eaton Brlightlayer Software suite
Other features
Nominal output voltage
230 V
Nominal input voltage
230 V
Information
| Part Number: | 9PX6KIRTNBPG2 |
